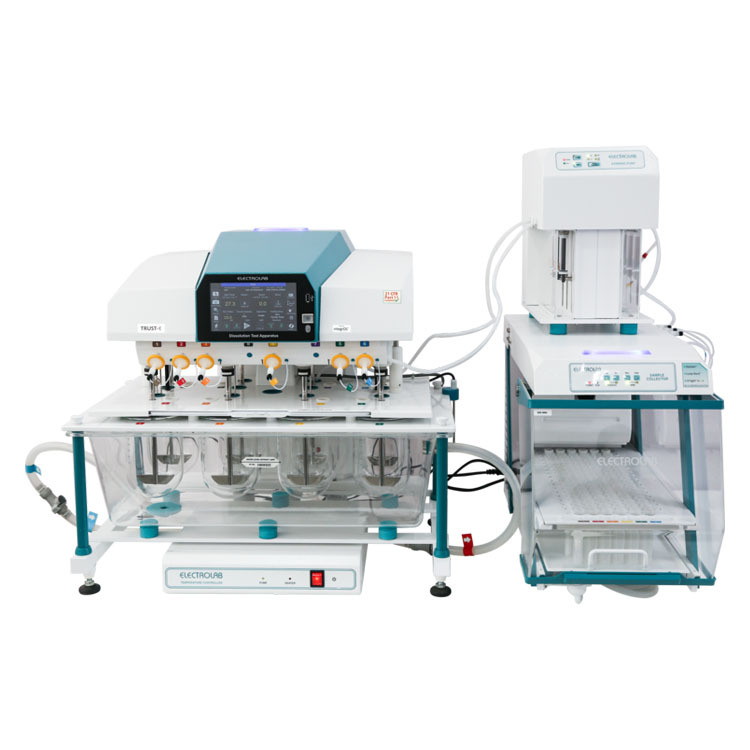

TrustE-08 with Sample Collector (Dx) 본문
8구 용출시험기 with Sample Collector (Dx)
- USP 1.2.5.6. 시험법 적용가능!
- USP, IP, Ph. Eur., JP 기준에 적합
- 1.5ml, 20ml 바이알 사용가능
- 7` TFT 터치 스크린 디스플레이
| 7" TFT touch screen display |
| LAN connectivity allows central printing |
| Multilevel security with password for 250 users with user programmable role |
| Alphanumeric data entry of product and user details |
| Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products |
| Programmable different aliquot volume for each sample Interval allows variable dilution |
| Complies with USP, IP, Ph. Eur. and JP specifications |
| Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods |
| Molded clear water bath |
| Easy to empty and clean water bath with bottom drainage |
| Precise individual vessel centering system |
| Adjustable leveling of instrument |
| Easy Snap-FitTM shaft locking mechanism for positive engagement and wobble free operation. |
| Vibration free smooth motorized lift movement |
| Isolated temperature controller and water circulating pump (vibration-free & precise) with wake up and sleep modes which saves time and energy |
| 1000 programmable products |
| 24 programmable sampling intervals |
| 10000 test report storage |
| Instrument accessories like paddles, baskets, vessels etc. are laser marked with serial numbers |
| Designed to minimize routine validation |
| Programmable report template |
| Report for online validation of test, monograph, error log during the test |
| Programmable sample volume from 1 ml to 20 ml |
| Audio-visual indicators for system status |
| Power failure detection and auto recovery facility |
| Delight technology enabling audio visual indication of instrument status |
| Finger print module |
| 250 users |
| Audit trial |
| E-signature |
| Auto dispensor |
| Intense rinse |
| Rinse by purge |
| Rinse by loopback |
Specifications
| No. Of Stations | 08 |
| Speed Range | 20 to 300 RPM |
| Speed Accuracy | ± 0.5 RPM |
| Temperature Range | 20° C to 40°C (extended range 10 to 40 and 20 to 55 optional) |
| Temperature Accuracy (At 37° C) | ± 0.1°C |
| Display | 7" TFT touch screen display |
| Test report storage | 10000 |
| Sample Interval | 1min to 999hrs, 59 min |
| No. of syringes | Standard : 6, Optional : 8 |
| Interface Port | Ethernet, RS 232, RS 485 |
| Stirrer Drive | High performance BLDC (maintenance free) |
| Vessel Capacity | 22 L |
| Temperature controller | Heater : 1 kW, SS 316 with thermal protection |
| Electrical Power | 220/230 VAC, 50/60 Hz, 1.3 kW/6 Amp 110 VAC, 50/60 Hz, 1.3 kW/10 Amp |
| Dimensions (L x W x H) : | |
| Basic | 67 x 51 x 71 cm |
| Offline Automation System | 101 x 51 x 71 cm |
| Weight : | |
| Basic | 84 kg |
| Offline Automation System | 141 kg |
TrustE-08 with Sample Collector (Dx)
더 자세한 설명이 필요하다면 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
