EFD-07 Closed loop with Syringe pump and sample collector 본문

제약장비/용출기

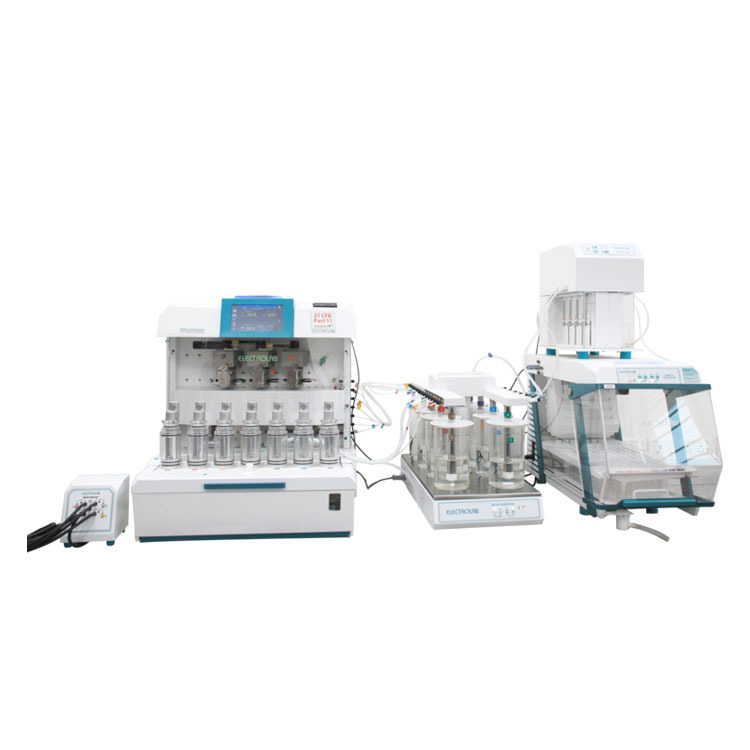

EFD-07 Closed loop with Syringe pump and sample collector

켐코코리아(주) 2022. 7. 18. 13:42



Complies with USP and Ph. Eur. Specifications
Valveless ceramic pump heads
Seven flow through cell stations
User friendly intuitive touch screen interface
1000 programmable protocols
Automatic flow rate adjustment for individual channels
Program support for gravimetric flow validation and
calibration of individual channel
Individual cell temperature monitor
Isolated water circulating pump for precise
temperature control of the water bath
Embedded printer for printing reports
Ideal for dissolution testing of tablets, capsules,
implants, suspensions, drug-eluting stents, ointments,
creams, microspheres and other sustained release
dosage forms
Visual indication of status :
Idle
Run
Error

Specifications

Model EFD-07
Touch screen display 7"
Bath temperature 20.0° C to 45.0° C
(Extended temperature range from 10°C to 65°C)
Bath temperature accuracy ±0.1° C
Piston pump stroke rate 120 strokes/min
Piston pump stroke rate accuracy ± 1 stroke
Programmable flow rate for
individual channel
2 ml/min to 32 ml/min
Accuracy of flow rate ±5%
Sample volume 1ml to 70 ml

EFD-07 Closed loop with Syringe pump and sample collector
