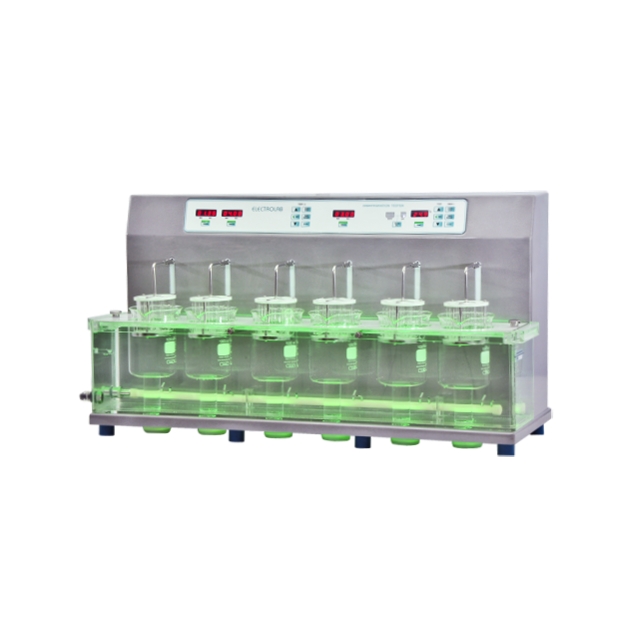

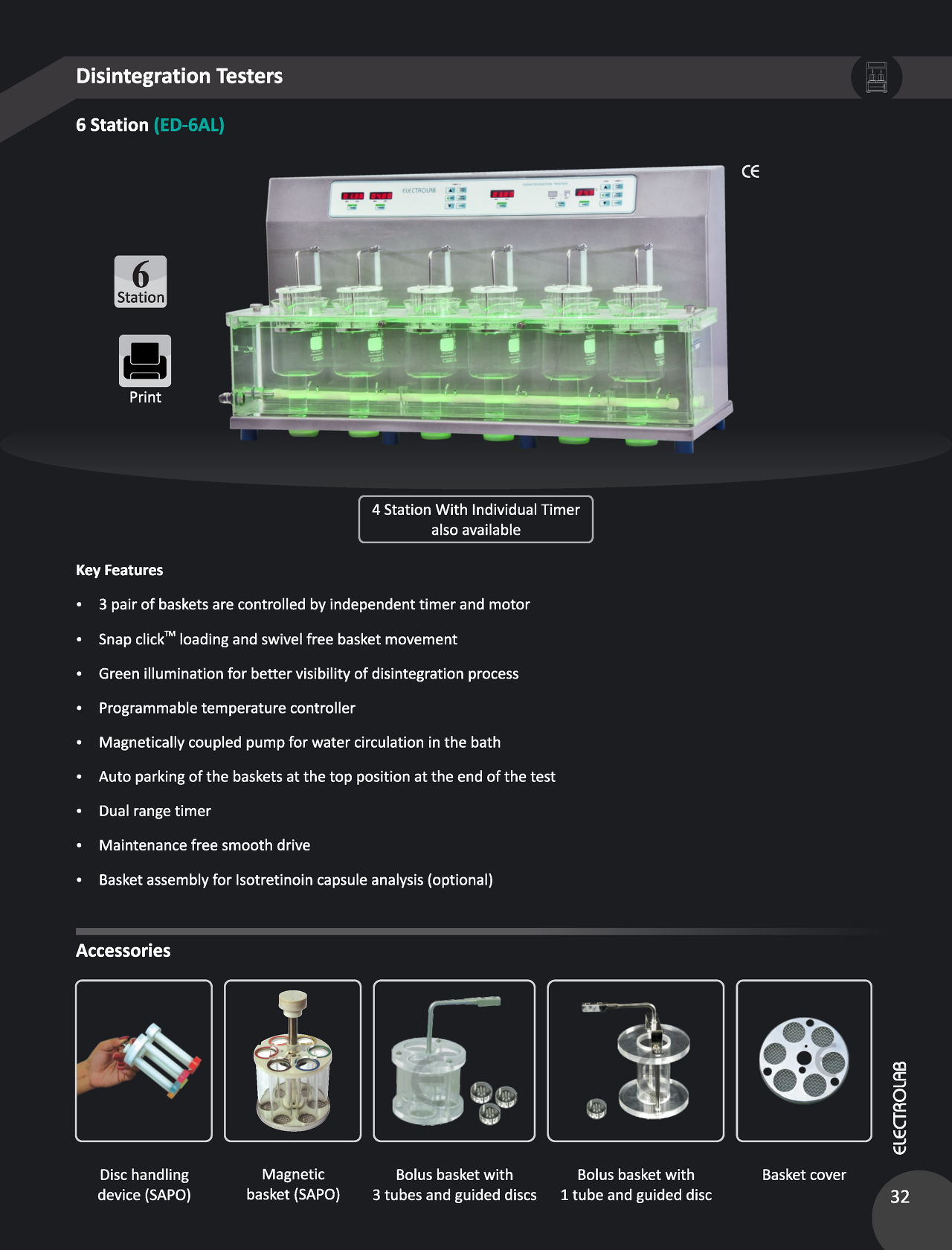

6 Station Disintegration Tester (ED-6AL) 6구 붕해도시험기 본문
6구 붕해도시험기
- 21 CFR compliance
- 3 pair Baskets controlled by independent timer and motor
- Snap click loading and basket movement
- Programmable temperature controller
| Model | EDT-08Lx |
| Speed range | Variable speed from 25 to 250 RPM |
| Speed accuracy | 0.5 RPM |
| Temperature range | 30℃ to 40℃ |
| Temperature accuracy | 0.1℃ |
| Display: | 40 x 4 character backlighted LCD |
| No. of protocol | 20 maximum |
| Sample interval | Maximum 24 of 1 min to 23 hrs, 59 min |
| Printer interface | Centronics parallel port |
| Printer supported | 80 column Dot Matrix printer |
| Bath | Clear acrylic moulded water bath |
| Bath size (L x W x H) | (705 x 374 x 200) mm |
| Heater | 1 kW/230 VAC, material S.S. 304 with sensor |
| Pump supply | 230 VAC, 50 Hz |
| Pump type | Magnetic coupling |
| Pump flow rate | 10 litres/minute maximum |
| Power supply | 220/ 230 VAC, 50/60 Hz, 1.3 kW/6 Amp |
| Dimensions (L x W x H) | (705 x 505 x 645) mm |
6 Station Disintegration Tester (ED-6AL) 6구 붕해도시험기
더 자세한 설명이 필요하다면 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
