6 Station Disintegration Tester (ED-6AL) 6구 붕해도시험기 본문

제약장비/붕해도시험기

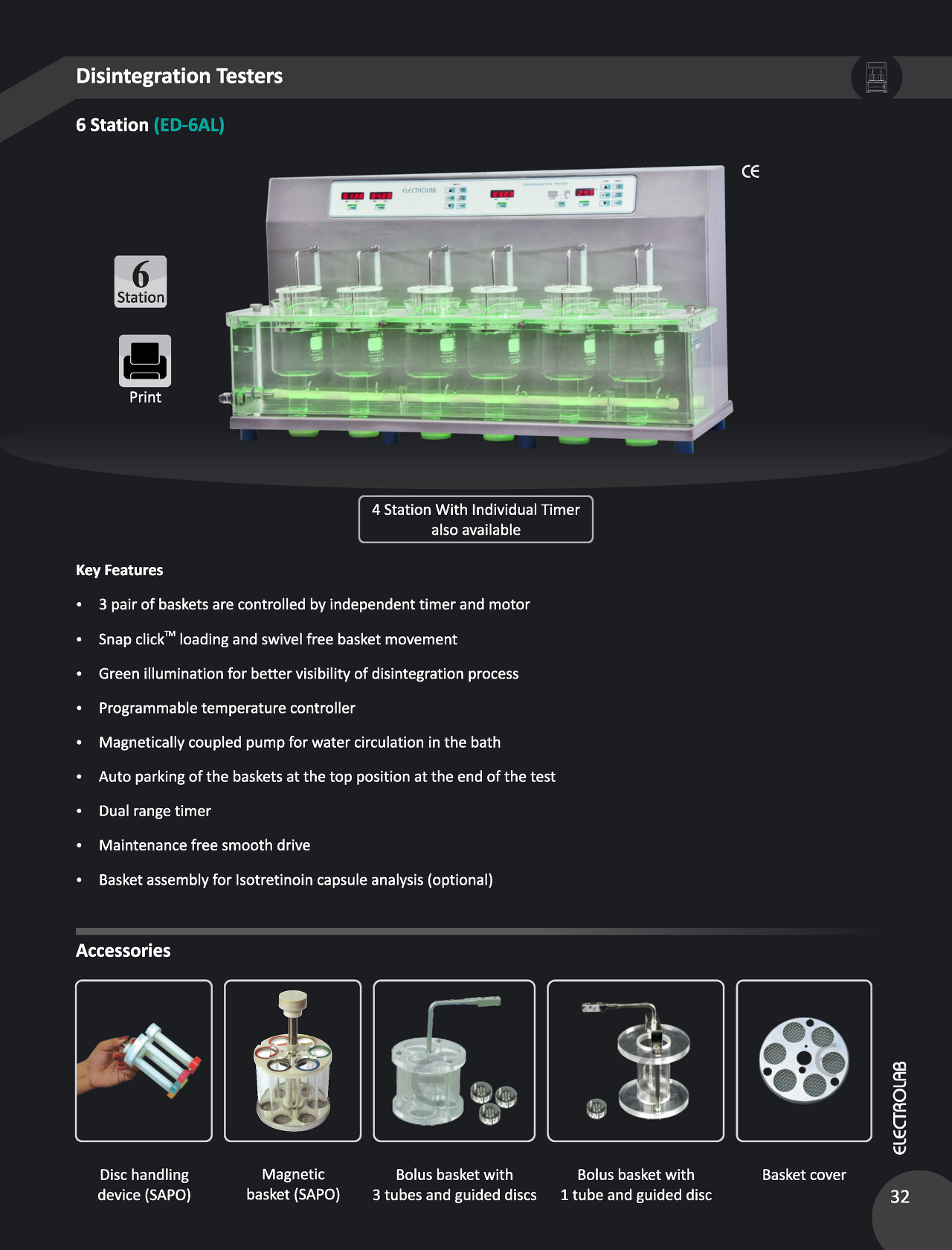

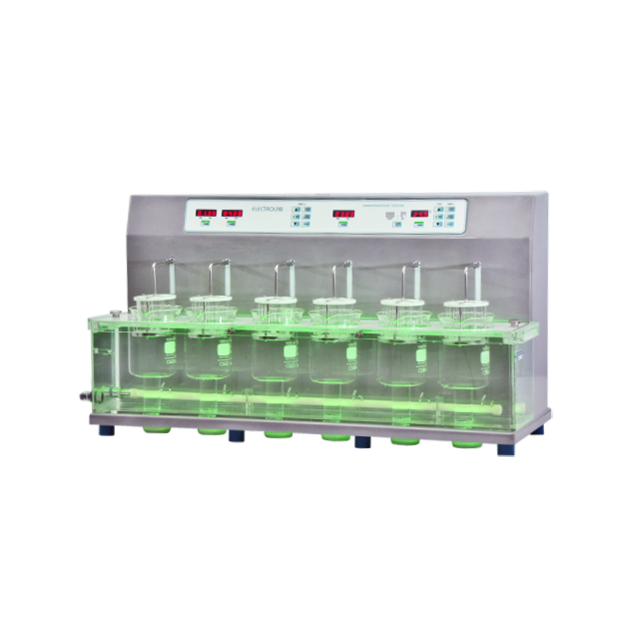

6 Station Disintegration Tester (ED-6AL) 6구 붕해도시험기

켐코코리아(주) 2022. 7. 21. 11:29

6구 붕해도시험기

  • 21 CFR compliance
  • 3 pair Baskets controlled by independent timer and motor
  • Snap click loading and basket movement
  • Programmable temperature controller

Model EDT-08Lx
Speed range Variable speed from 25 to 250 RPM
Speed accuracy 0.5 RPM
Temperature range 30℃ to 40℃
Temperature accuracy 0.1℃
Display: 40 x 4 character backlighted LCD
No. of protocol 20 maximum
Sample interval Maximum 24 of 1 min to 23 hrs, 59 min
Printer interface Centronics parallel port
Printer supported 80 column Dot Matrix printer
Bath Clear acrylic moulded water bath
Bath size (L x W x H) (705 x 374 x 200) mm
Heater 1 kW/230 VAC, material S.S. 304 with sensor
Pump supply 230 VAC, 50 Hz
Pump type Magnetic coupling
Pump flow rate 10 litres/minute maximum
Power supply 220/ 230 VAC, 50/60 Hz, 1.3 kW/6 Amp
Dimensions (L x W x H) (705 x 505 x 645) mm





6 Station Disintegration Tester (ED-6AL) 6구 붕해도시험기

더 자세한 설명이 필요하다면 켐코코리아로 문의하세요~!



켐코코리아 주식회사

Tel. 043-215-2012

e-mail. ck@chemcokorea.com

Web. http://www.chemcokorea.com/

Blog. http://blog.chemcokorea.com/
