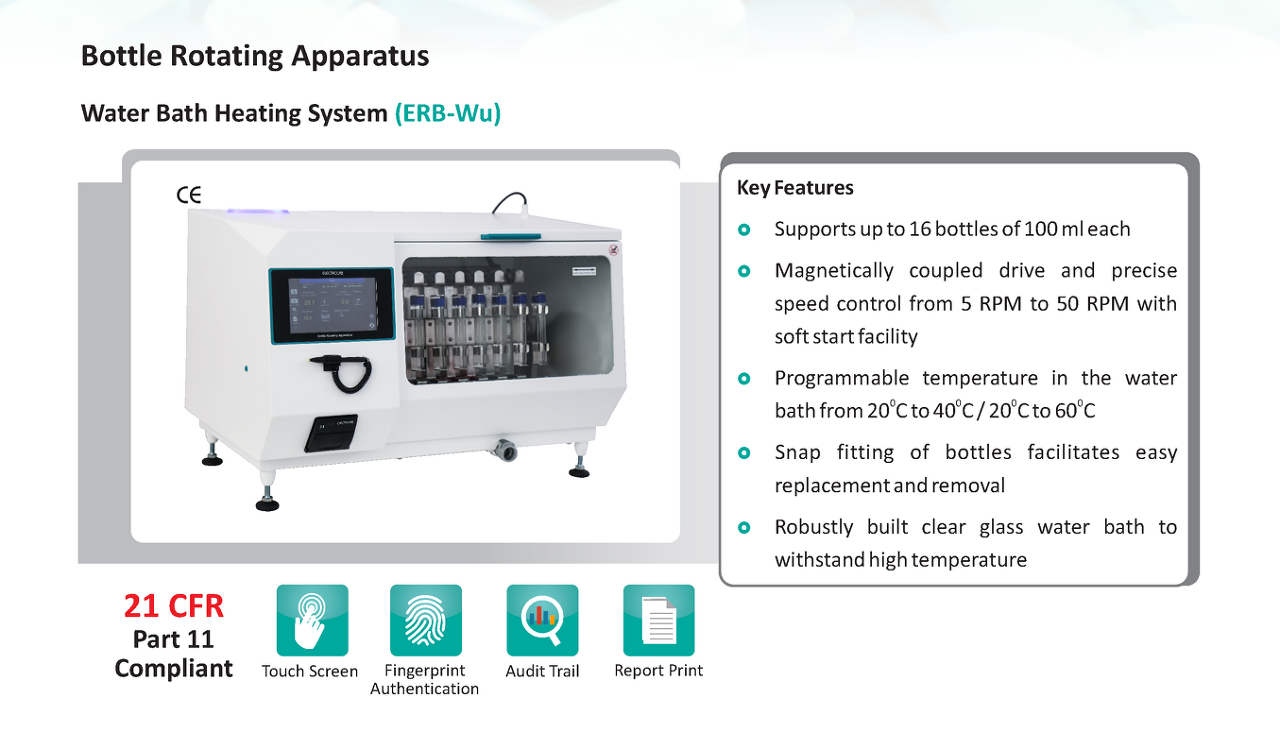

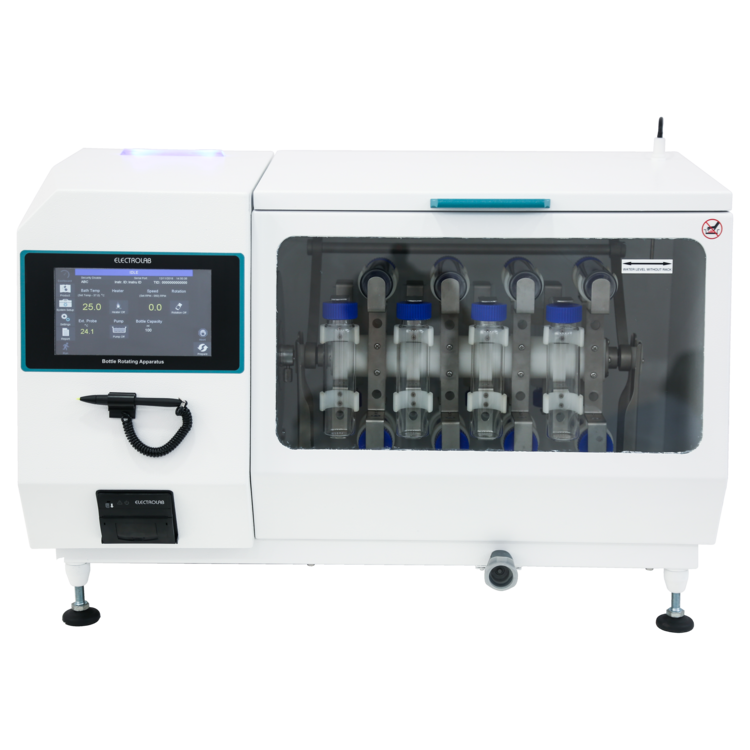

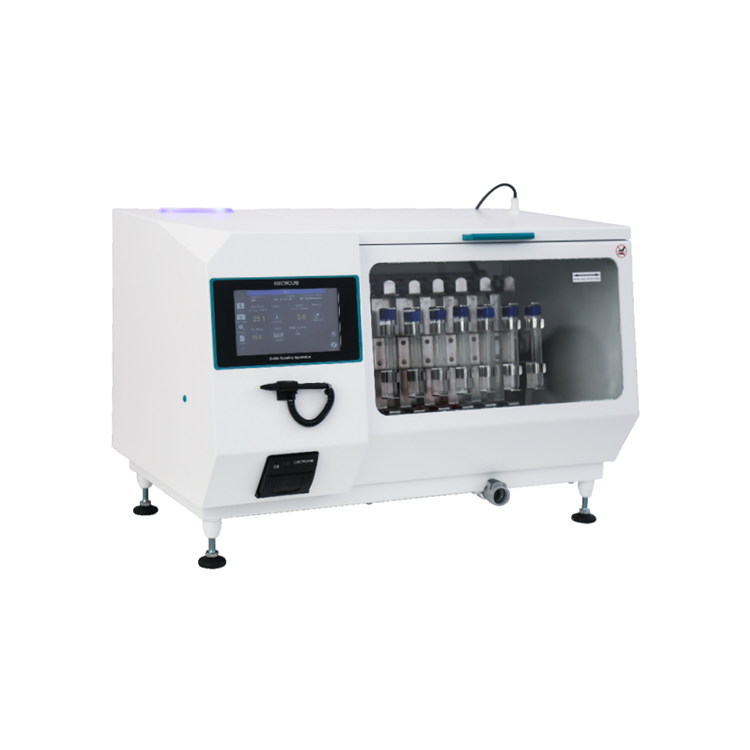

Bottle Roatating Apparatus Water Bath Heating System (ERB-Wu)

켐코코리아(주) 2022. 7. 27. 15:47
  • Speed : 1 ~ 60 RPM
  • Temperature range : 20 ~ 60 ℃
  • Supports upto 16 bottles of 100ml each
  • Audit trial, 21 CFR part11 compliant

Water Bath Heating System (ERB-Wu)



63.5 cm x 40 cm x 48 cm



30~50℃ (± 0.2℃)

1~60 rpm (± 1 rpm)

Bath 62 L

Specifications





Model ERB-Wu
Touch screen display 7''
Water bath Clear polycarbonate
Water capacity 62 ltrs
Bath size (L x W x H) 472 x 404 x 376 mm
Speed range 1 to 60 RPM
Resolution 1 RPM
Accuracy + 1 RPM
Drive type Magnetically coupled
Set temperature range 20 C to 60 C
Resolution 0.1 C
Heater 3 KW/230V AC
Circulation Magnetically coupled pump
Flow rate 11 liters/minute
Power supply 230V AC +10%, 50 Hz, 3.2 KW
Dimensions (W x H x D) 635 x 400 x 480 mm



Ordering Information





Products
Product Code Description Quantity
0820600 ERB-Wu (Body made of M.S.) -230V 1
0810600 ERB-Wu (Body made of M.S.) -110V 1





Standard Accessories
Part number Description Quantity
0804A00001 Glass bottle with cap for 10 ml 1 Set
0802A00003 Glass bottle with cap for 100 ml 1 Set
0802A00013 Glass bottle with cap for 250 ml 1 Set



Bottle Roatating Apparatus Water Bath Heating System (ERB-Wu)

더 자세한 설명이 필요하다면 켐코코리아로 문의하세요~!
