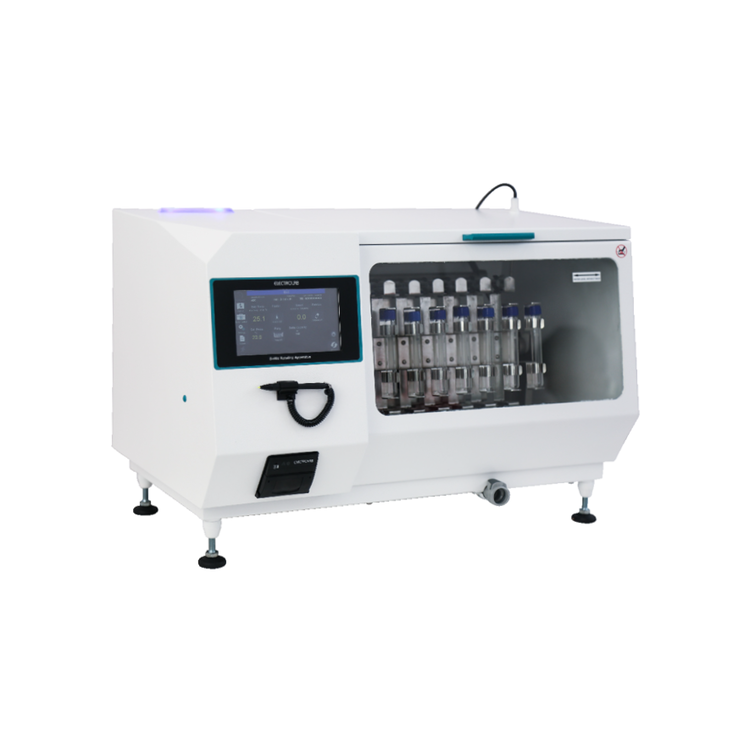

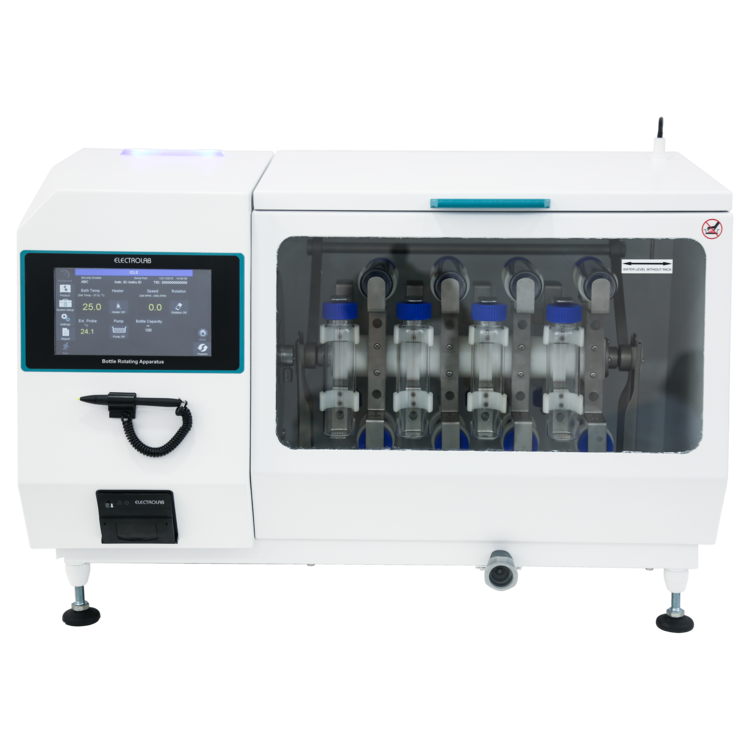

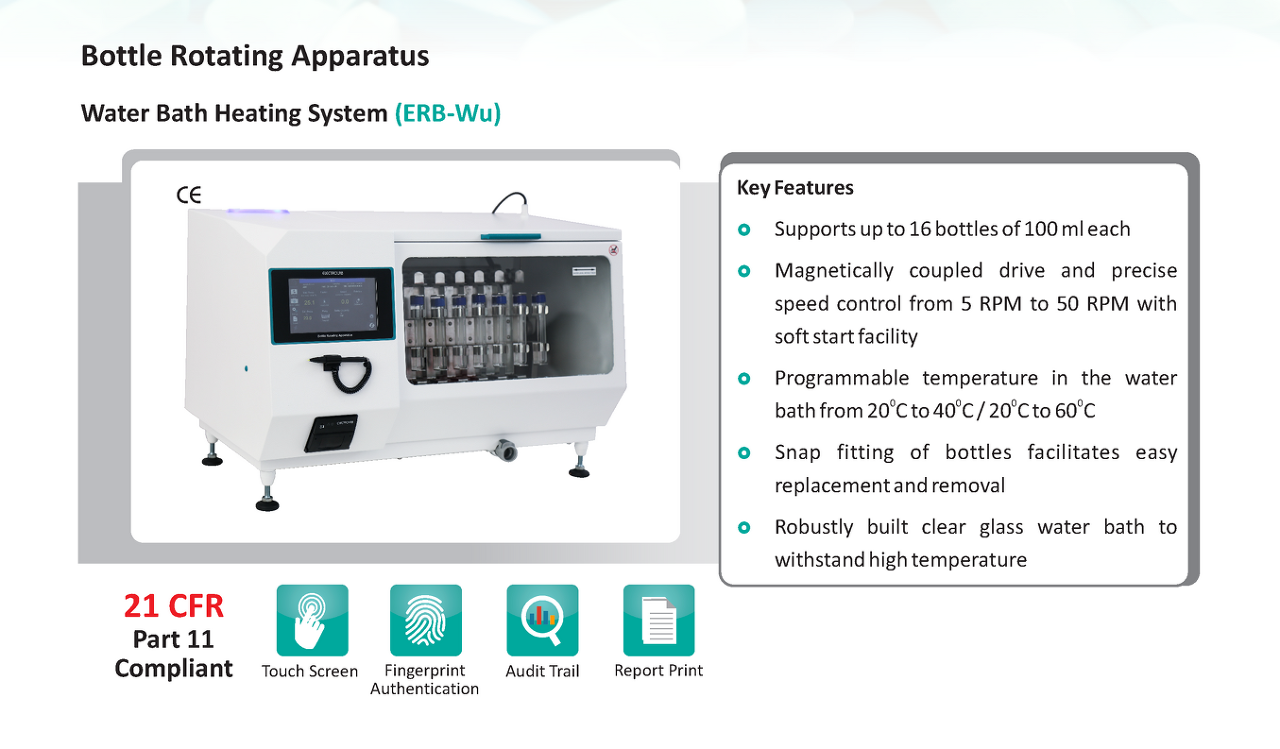

Bottle Roatating Apparatus Water Bath Heating System (ERB-Wu)
켐코코리아(주) 2022. 7. 27. 15:47- Speed : 1 ~ 60 RPM
- Temperature range : 20 ~ 60 ℃
- Supports upto 16 bottles of 100ml each
- Audit trial, 21 CFR part11 compliant
Water Bath Heating System (ERB-Wu)
63.5 cm x 40 cm x 48 cm
30~50℃ (± 0.2℃)
1~60 rpm (± 1 rpm)
Bath 62 L
Specifications
| Model | ERB-Wu |
| Touch screen display | 7'' |
| Water bath | Clear polycarbonate |
| Water capacity | 62 ltrs |
| Bath size (L x W x H) | 472 x 404 x 376 mm |
| Speed range | 1 to 60 RPM |
| Resolution | 1 RPM |
| Accuracy | + 1 RPM |
| Drive type | Magnetically coupled |
| Set temperature range | 20 C to 60 C |
| Resolution | 0.1 C |
| Heater | 3 KW/230V AC |
| Circulation | Magnetically coupled pump |
| Flow rate | 11 liters/minute |
| Power supply | 230V AC +10%, 50 Hz, 3.2 KW |
| Dimensions (W x H x D) | 635 x 400 x 480 mm |
Ordering Information
| Products | ||
| Product Code | Description | Quantity |
| 0820600 | ERB-Wu (Body made of M.S.) -230V | 1 |
| 0810600 | ERB-Wu (Body made of M.S.) -110V | 1 |
| Standard Accessories | ||
| Part number | Description | Quantity |
| 0804A00001 | Glass bottle with cap for 10 ml | 1 Set |
| 0802A00003 | Glass bottle with cap for 100 ml | 1 Set |
| 0802A00013 | Glass bottle with cap for 250 ml | 1 Set |
Bottle Roatating Apparatus Water Bath Heating System (ERB-Wu)
더 자세한 설명이 필요하다면 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
