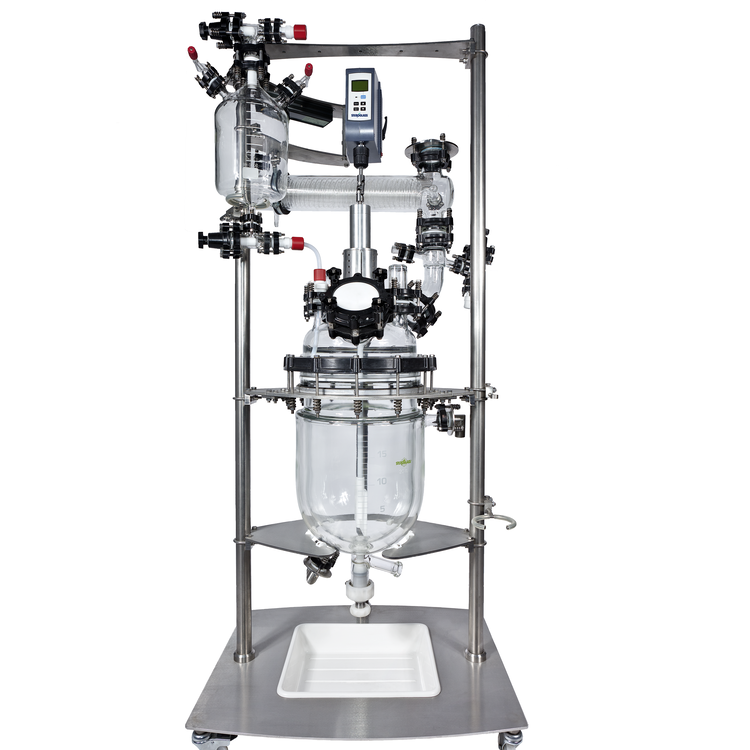

60 L PLUS PILOT Reactor / 60L 플러스 파일롯 반응기 본문
60L 플러스 파일롯 반응기
- 공정 화학 요구 사항에 대한 완벽한 솔루션
- 최대 50~100L의 용기 사용 가능
- 다양한 악세서리 선택 가능
The perfect solution to your process chemistry needs, the PILOT PLUS range covers vessels sizes from 50 L up to 100 L.
Asynt can offer a complete reactor system incorporated into a unique open air, auto-centre framework with a wide range of accessories and customisation available to suit your kilo lab needs.
ATEX version available.
The 60 L PLUS PILOT includes:
DISMOUNTABLE JACKETED VESSEL DN450/400 60L DISCHARGE DN50
GLASS/PTFE VALVE DN50 WITH NO DEAD VOLUME
COVER DN300 7 NOZZLES WITH:
– CENTRAL DN25 FOR STIRRING,
– DN80 PTFE NOZZLE FOR SOLIDS,
– DN40 WITH GLASS THERMOMETER POCKET FOR PT100,
– DN40 WITH WELL FOR PH,
– DN40 FREE NOZZLE
– DN25 WITH DIP PIPE AND ADAPTER FOR LIQUIDS,
– DN50 FOR VAPOURS
BOROSILICATE GLASS 3.3 REDUCED BEND DN100/50
REFLUX SEPARATOR DN100
GLASS THERMOMETER POCKET FOR PT100
GLASS BEND 90° DN15
n° 2 5L GRADUATED FEED AND RECEIVING VESSEL
HORIZONTAL COIL HEAT EXCHANGER 1.5MQ DN80
RUPTURE DISK GRAPHITE/PFA DN50
HIGH TORQUE-HIGH SPEED OVERHEAD STIRRER
A SPINDLE MOTOR
B LANTERN WITH MECHANICAL SEAL GRAPHITE/PTFE
C STAINLESS STEEL STIRRING SHAFT/PTFE COATED
STAINLESS STEEL FRAME FOR REACTOR WITH COVER DN300
60 L PLUS PILOT Reactor / 60L 플러스 파일롯 반응기
더 자세한 설명은 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
Web. http://www.chemcokorea.com/
Blog. http://blog.chemcokorea.com/
