Magnetic stirrer heads / 마그네틱 교반기 헤드 본문
마그네틱 교반기 헤드
- PTFE 교반기 샤프트에 이상적
- 볼 베어링의 캡슐형 드라이브 샤프트(스테인리스스틸)
- PTFE/PEEK 로터 및 하부 베어링
- 붕규산 유리로 만든 hollow shaft

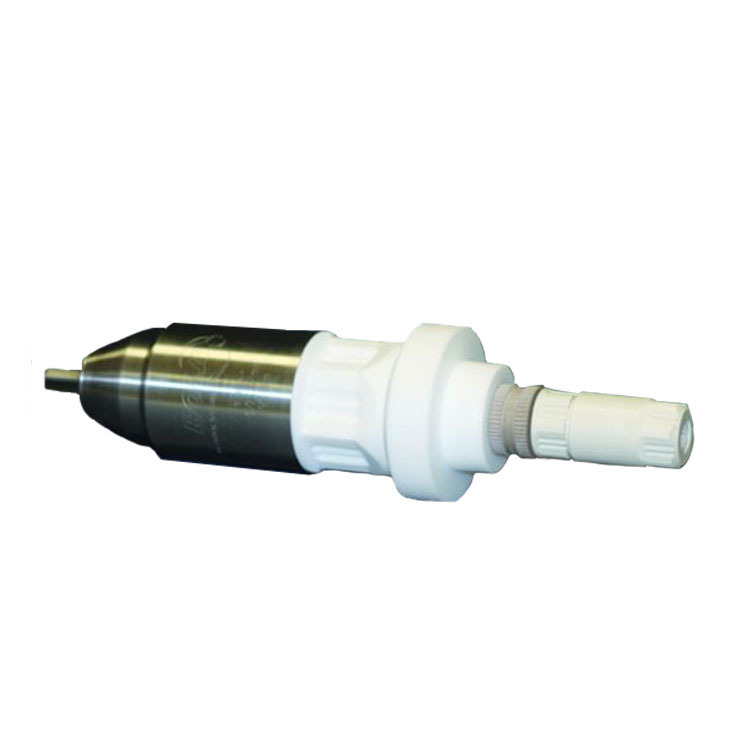

These magnetic stirrer heads are ideal for PTFE jacketed stirrer shafts.
Consisting of capsuled drive shaft (stainless steel) with ball bearings, rotor and lower bearing made of PTFE/PEEK and a hollow shaft made of borosilicate glass.
These require little space due to compact construction. No leakage or memory effects due to non-porous, welded rotor. Compression fittings for safe fixing of stirrer shaft and optimum power transmission. Suitable for flat flanges of Duran (former Schott AG), sealing to be made with a gasket of your choice. Square size 6 mm for accepting an agitator or a stirrer coupling.
Material: PTFE/compound
Material: Glass
Temperature resistance: from -200°C to +250°C
Chemical resistance: +++ universal
- gastight stirrer head for perfect vacuum
- stirrer shafts height adjustable, approx. 40 mm
- also suitable for shortened stirrer shafts
- powerful transmission of up to 90 Ncm
- excellent chemical resistance
- all products which are exposed to the medium do not contain any metals
- no grease required / save to run dry
- high speed of up to max. 1.500 rpm
- drive shaft fixed for your safety
- high durability
- easy disassembly of all parts for cleaning
- Applications

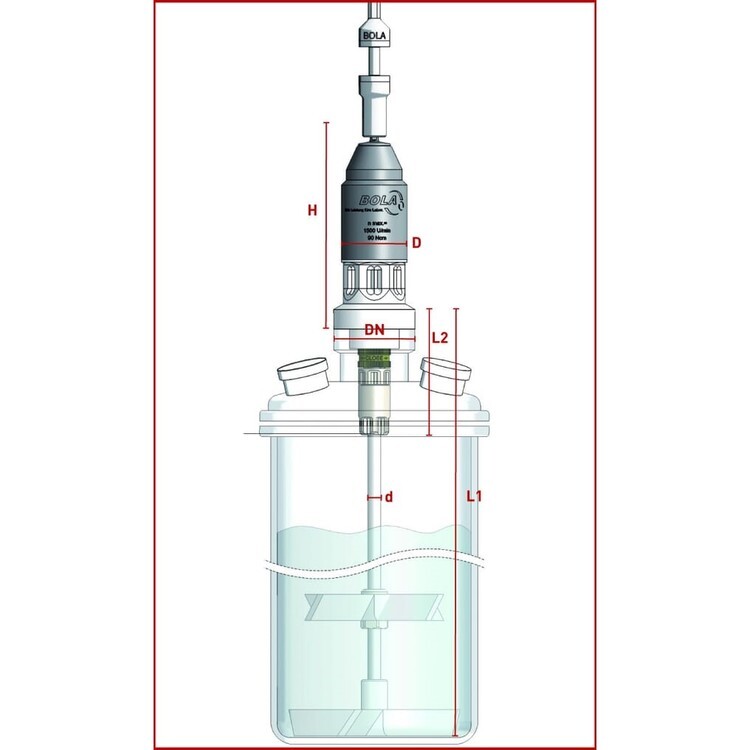

Suitable for all BOLA Stirrer Shafts jacketed with PTFE. Ideal for reactor lids with flat flange.
Magnetic stirrer heads / 마그네틱 교반기 헤드
더 자세한 정보는 켐코코리아로 문의하세요~!
