Illumin8 Parallel Photoreactor - 광화학 반응기 본문
혁신적인 광화학 반응기
- 450 nm (Blue) , 365nm (UV) 10w LED COB 선택 가능
- 390~395nm (UVA), 405nm (Violet), 440~450nm (Royal Blue), 460~470nm (Blue)
- 520~525nm (Green), 590~595nm (Yellow), 620~625nm (Red), 650~660nm (Deep Red)
- 다양한 파장(wavelenghts) 선택 가능
- 최대 80℃ 가열 반응 가능
- 1~8ml glass tube 최대 8개 사용 가능

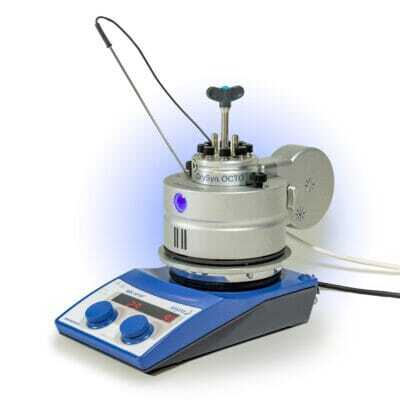

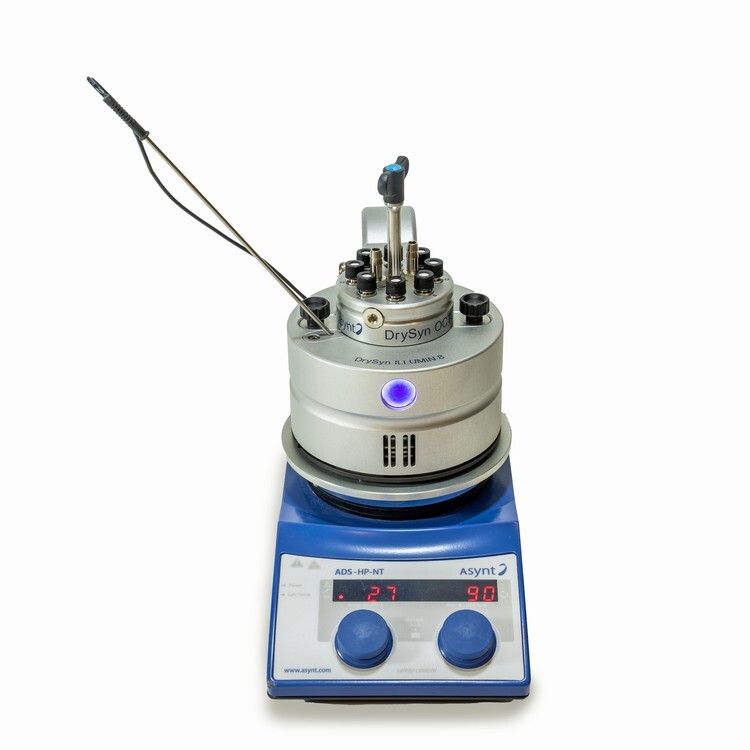

Illumin8 parallel photoreactor is ideal for safe, benchtop parallel photochemistry. Working closely with some of our key customers we took their “go to” tool for parallel screening, our OCTO parallel reactor, and developed a high powered LED photo array to compliment it. Illumin8 is a no-compromise, safe, well-engineered module based on the DrySyn OCTO MINI 8-position reaction station with magnetic stirring and optional heating via any standard hotplate stirrer..
- Initially available in two models:
- 8 x 450 nm (Blue) 10w LED COB chips
- 8 x 365 nm (UV) 10w LED COB chips
With the 10w LED COB chips positioned close to each corresponding OCTO Mini reaction tube, the Illumin8 efficiently delivers an even photon flux to each sample. Compact in design, the module includes safety interlocks to ensure that your photochemical experiments are light-tight and safe with active cooling to keep the reaction tubes from getting too hot from photo irradiation.
The Illumin8 parallel photoreactor is designed and manufactured in the United Kingdom.
Illumin8 Parallel Photoreactor - 광화학 반응기
더 자세한 정보는 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
Web. http://www.chemcokorea.com/
Blog. http://blog.chemcokorea.com/
