PhotoSyn LED photoreactor lamp module / PhtoSyn LED 광반응기 램프 모듈 본문

이화학 실험장비/Jacked Lab Reactors

PhotoSyn LED photoreactor lamp module / PhtoSyn LED 광반응기 램프 모듈

켐코코리아(주) 2022. 9. 7. 13:30

PhtoSyn LED 광반응기 램프 모듈



  • UV-A/Blue, Blue & Blue/Green/White 조명 옵션
  • 작동 중 No light leakage
  • 긴 수명, 효율적인 LED array light source
  • 700W Variable output programmable power supply
  • Designed & manufactured in the UK by Uniqsis Ltd

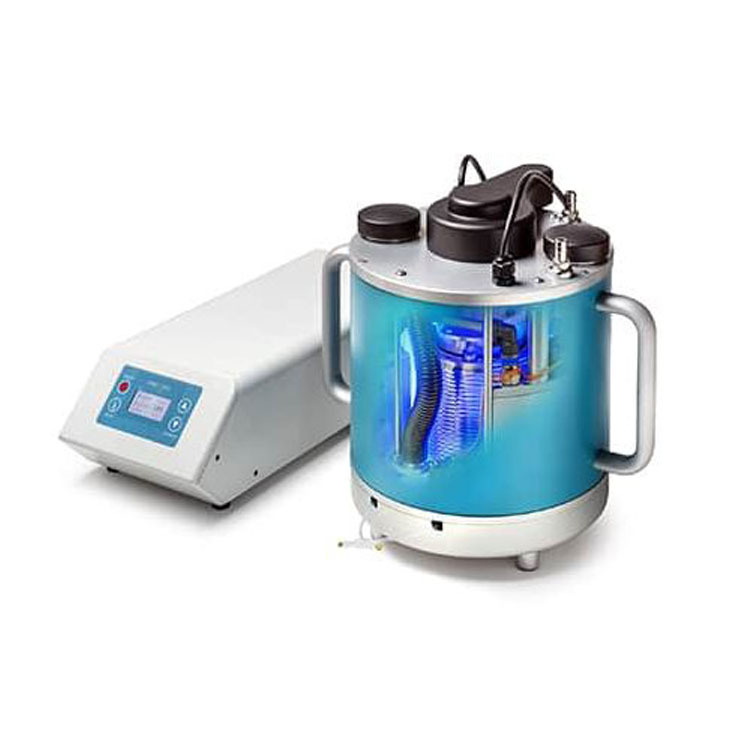

The Uniqsis PhotoSyn has been designed to provide scientists with a high power LED light source for continuous flow applications.

Available with a selection of different LED arrays the unit can provide outputs up to 700W from the dedicated programmable power supply. Customised units (e.g. 385nm, 420nm) are available on request.

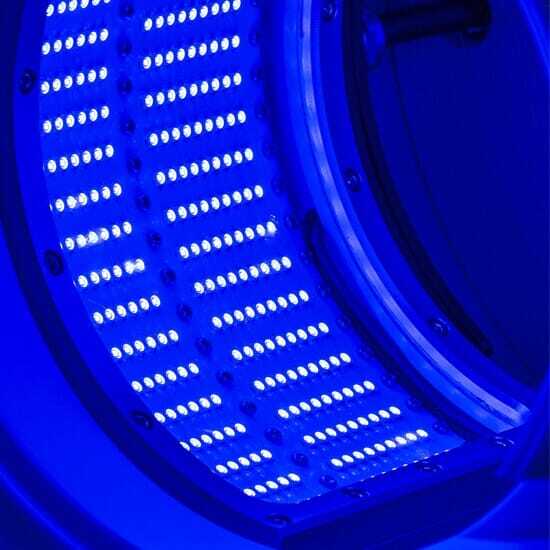

The curved, water (or gas) cooled LED arrays focus the available light on the central coil reactor to maximise the photon intensity.

The PhotoSyn has been thoughtfully engineered to completely prevent potentially hazardous light emissions from the unit, and is protected with interlocks that deactivate the light source if any attempt is made to remove the cover whilst in operation. In addition, a fan both prevents the build up of static hot air within the lamp unit and removes any vapour that may accumulate over time.

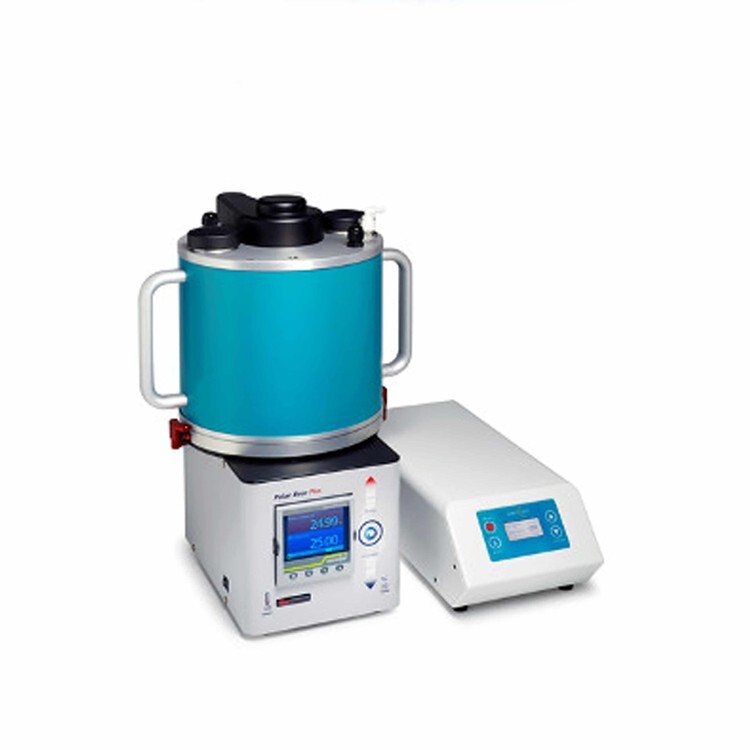

The PhotoSyn is compatible with the Uniqsis Cold Coil (shown fitted in images) and Polar Bear Plus Flow reactor modules. These reactor modules are available separately.

  • UV-A/Blue, Blue & Blue/Green/White light options
  • No light leakage in operation
  • Long lifetime, energy efficient LED array light source
  • Chromed coil reactor mandrels to maximise internal reflection
  • Independent temperature control of coil reactor
  • 700W Variable output programmable power supply
  • Designed & manufactured in the UK by Uniqsis Ltd











PhotoSyn LED photoreactor lamp module / PhtoSyn LED 광반응기 램프 모듈
