가스 버블러



  • 불활성 분위기 유지
  • Schlenk 장치에 효과적 사용

Need to keep your reaction under an inert atmosphere? Or maybe you have a Schlenk apparatus? Then these bubblers should prove a very useful tool.

Types 1 and 2 can be used with a reaction that needs an inerting blanket. A small amount of oil (silicone or mineral) is placed in the bubbler which allows a gentle flow of outgassing to be observed without any pressure issues to the apparatus.

Types 3 & 4 are for monitoring and isolating gas flow through apparatus, such as a Schlenk line.”



Types 1 & 2 are supplied, as standard, with a B19 cone fitting, GL14 screw threaded side-arms and removeable plastic hose connectors. Type 4 is supplied with GL14 screw threaded side-arms and removeable plastic hose connectors.

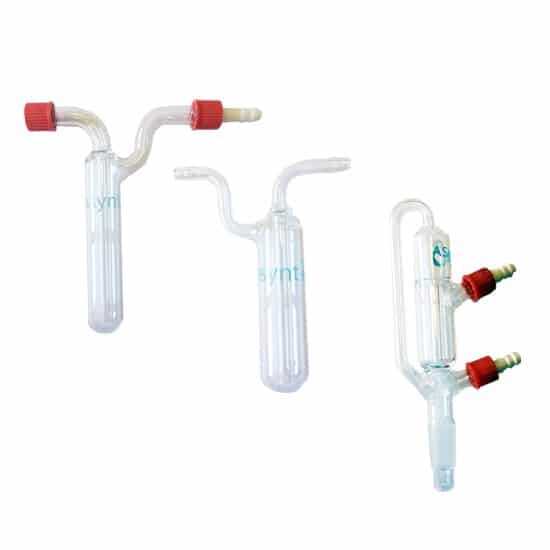

Part Numbers:

  • GB-N2-01: Standard design, B19 cone, GL14 screw and olive (Drawing 1)

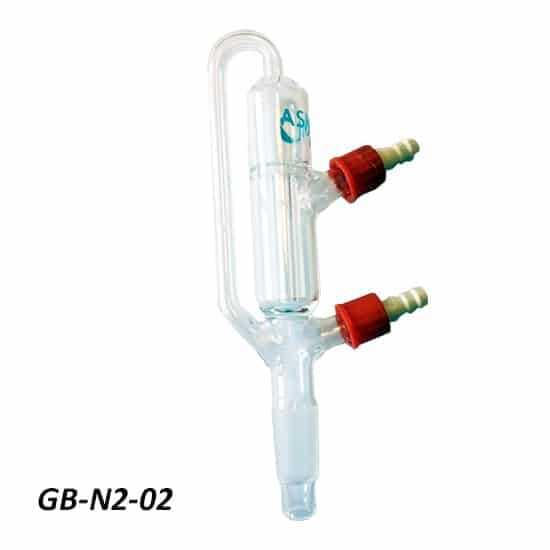

  • GB-N2-02: No suck back, B19 cone, GL14 screws and olives (Drawing 2)

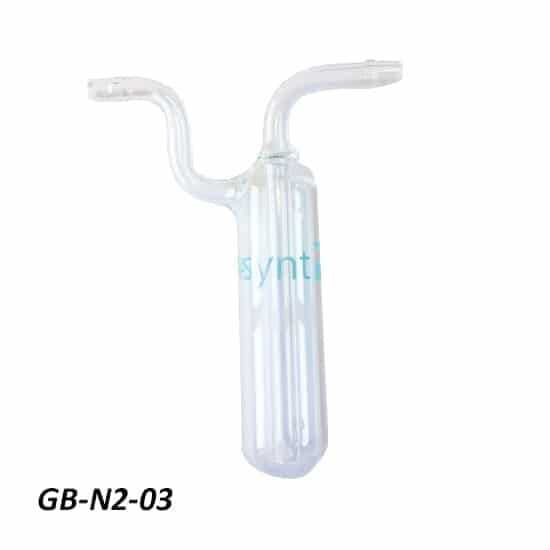

  • GB-N2-03: Simple design with glass olives (Drawing 3)

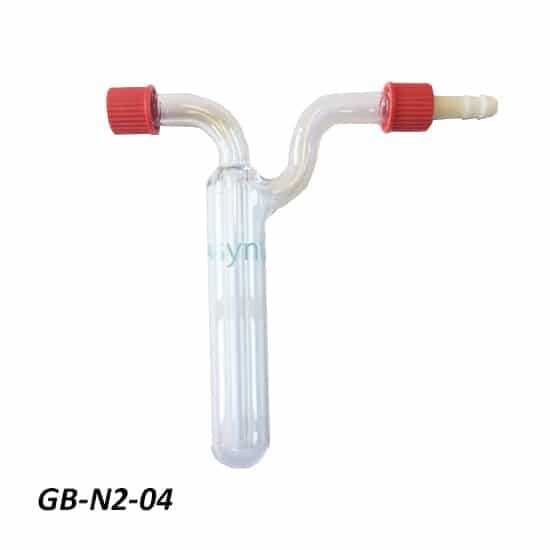

  • GB-N2-04: Simple design with GL14 screws and olives (Drawing 3)
