PhotoRedOX BOX TC - 온도 가열 또는 냉각



• 다양한 광원 사용 가능 (EvoluChem 18W, Kessil blue 34W)
• 빛을 고르게 분산시키는 광화학 챔버
• 표준 교반 플레이트 사용 가능
• 최대 32개 반응 조건 실험 가능
• 유체를 통한 반응 매질의 가열 또는 냉각 가능

Also based on our patented design, the TC version, with a standard chiller/heater unit (not included), makes it possible to perform photo-catalytic reactions at controlled temperatures from 0°C to 80°C.

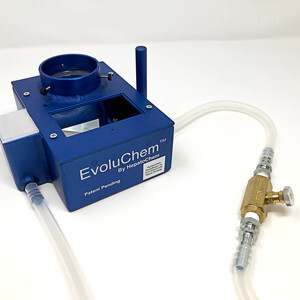

PhotoRedOx Box TC™  Description

The EvoluChem PhotoRedOx Box TC™ (Temperature Controlled) photoreactor (US Patent #10,906,022) enables photo-catalytic reactions at controlled temperatures between 0°C to 80°C. The design is based on our original PhotoRedOx Box™ which features a unique reaction chamber geometry that directs light throughout the chamber, allowing the performance of multiple reaction conditions simultaneously (between 2 and 32 depending on the reaction vial sizes). However, with the aluminum-based, waterproof PhotoRedOx TC™, it is possible to heat and cool the reaction medium using a thermostatic fluid (such as water or ethylene glycol) that recirculates through a standard chiller/heater unit.





Features



• Photochemistry chamber to evenly distribute light
• Fits many light sources (EvoluChem 18W or Kessil blue 34W)
• Flexible format vials (from 0.3 ml to 20 ml)
• Photochemistry chamber to evenly distribute light
• External recirculator needed to heat or chill reaction vessel
• Flow reactor available
• Magnetic stirring on standard stirring plate

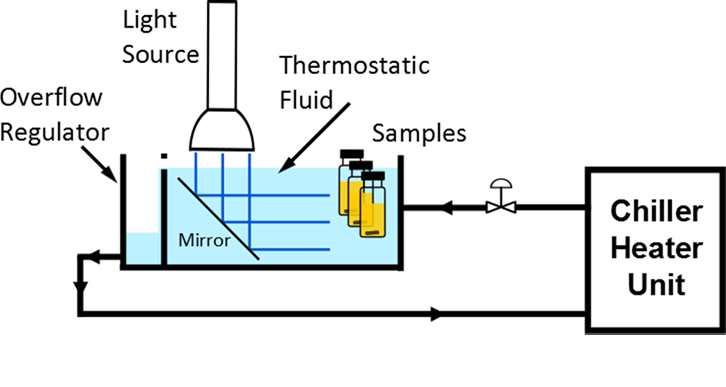

PhotoRedOx Box TC™ Schematic

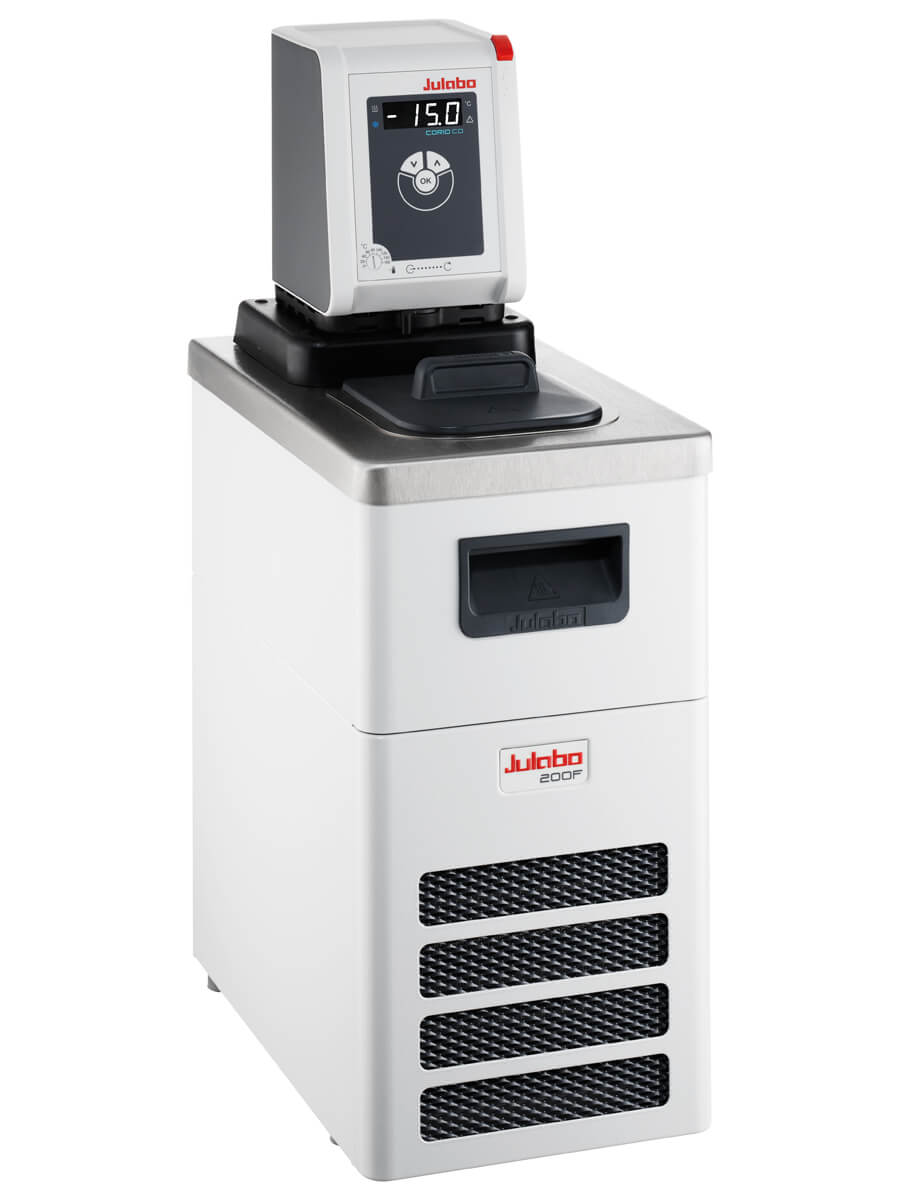

Featured Heater/Chiller Unit





Julabo Corio 200F

While most common chiller/heater units can be used with the PhotoRedOx Box TC™, for USA/Canada clients we can offer the Julabo Corio 200F unit which works perfectly with our instrument.

Please contact us for more information.

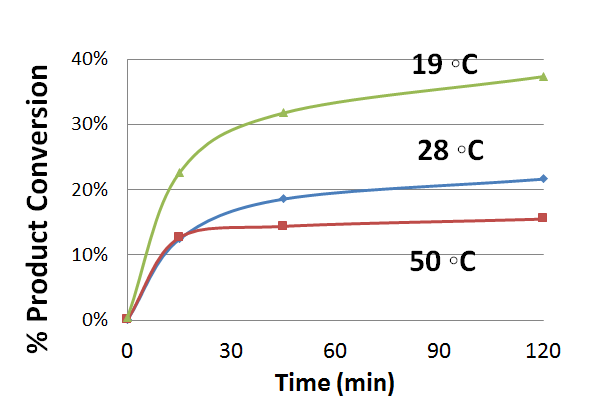

Light Temperature Effect on Conversion

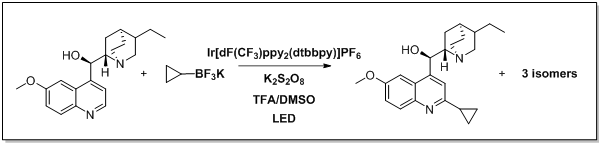

Experimental Details:
Reaction performed in Evoluchem PhotoRedOx Box TC™ bath with circulating polyethylene glycol/water bath and an EvoluChem 18W 6200K white light for 2 hr. Reaction contains 50 µmol substrate, 1.5 equiv. RBF3K, 2 equiv. K2S2O8, 5 equiv. TFA and 2 mol% Ir(dF-CF3-ppy)2(dtbpy) in 0.5 ml DMSO.

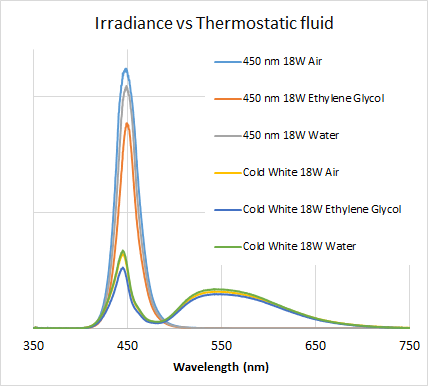

Light transmission in fluids:
We investigated the possible influence of liquids on the light transmission. Water or ethylene glycol do not affect photoredox experiments.
