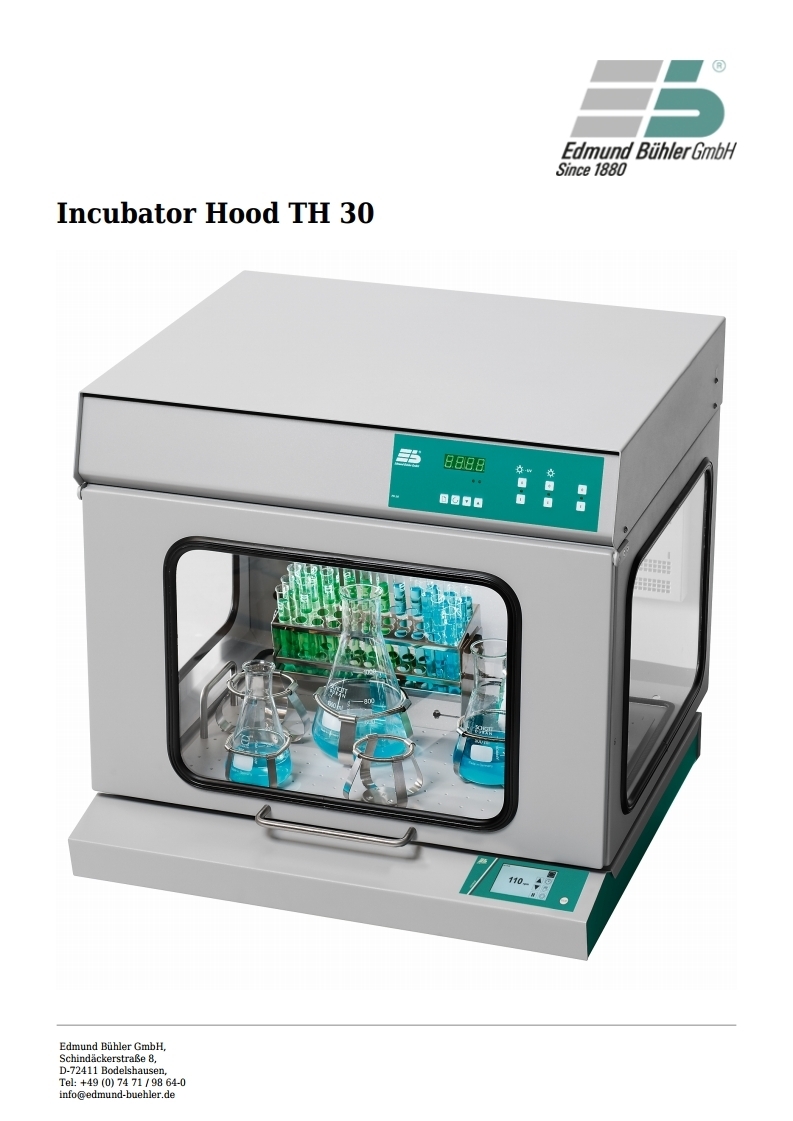

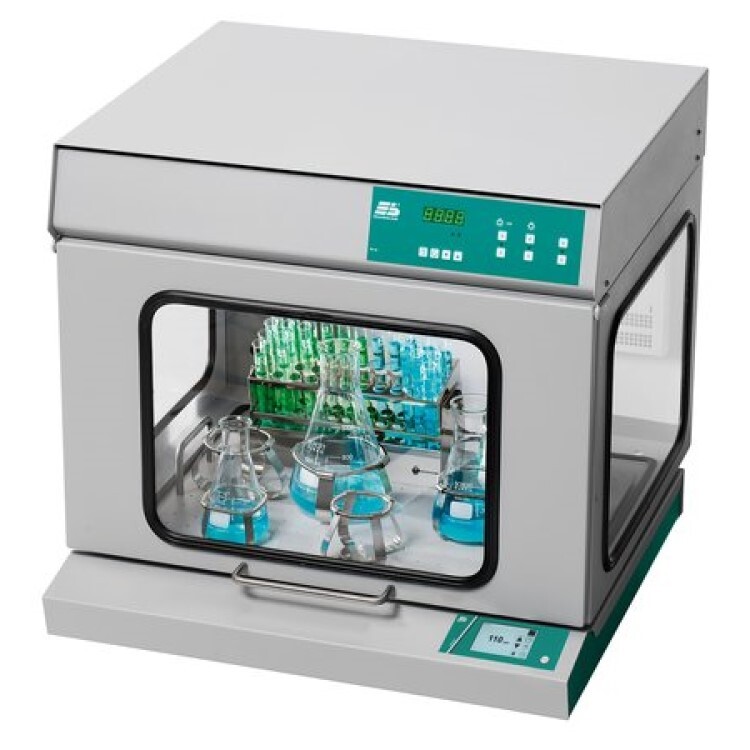

Incubator Hood TH 30 인큐베이터 후드

켐코코리아(주) 2022. 9. 28. 11:30

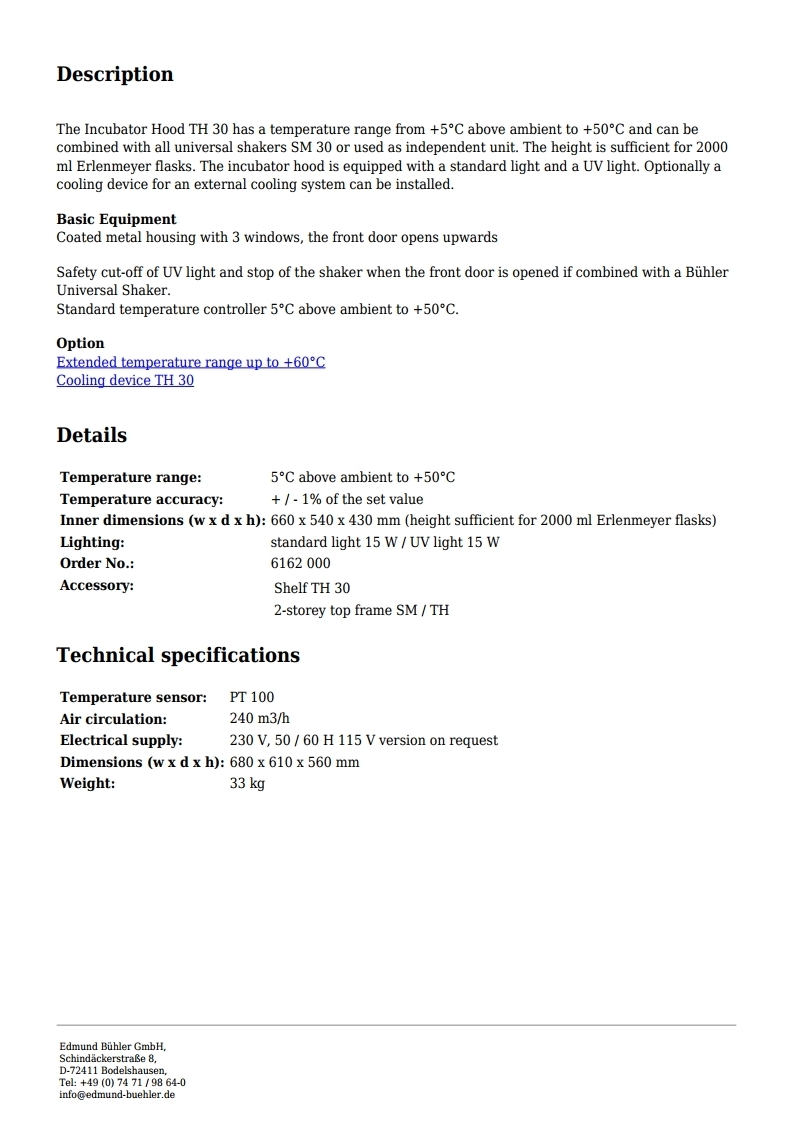

Description



The Incubator Hood TH 30 has a temperature range from +5°C above ambient to +50°C and can be combined with all universal shakers SM 30 or used as independent unit. The height is sufficient for 2000 ml Erlenmeyer flasks. The incubator hood is equipped with a standard light and a UV light. Optionally a cooling device for an external cooling system can be installed.

Basic Equipment
Coated metal housing with 3 windows, the front door opens upwards

Safety cut-off of UV light and stop of the shaker when the front door is opened if combined with a Bühler Universal Shaker.
Standard temperature controller 5°C above ambient to +50°C.

Option
Extended temperature range up to +60°C
Cooling device TH 30



Details

Temperature range: 5°C above ambient to +50°C
Temperature accuracy: + / - 1% of the set value
Inner dimensions (w x d x h): 660 x 540 x 430 mm (height sufficient for 2000 ml Erlenmeyer flasks)
Lighting: standard light 15 W / UV light 15 W
Order No.: 6162 000
Accessory: Shelf TH 30
2-storey top frame SM / TH





Technical specifications

Temperature sensor: PT 100
Air circulation: 240 m3/h
Electrical supply: 230 V, 50 / 60 H 115 V version on request
Dimensions (w x d x h): 680 x 610 x 560 mm
Weight: 33 kg
