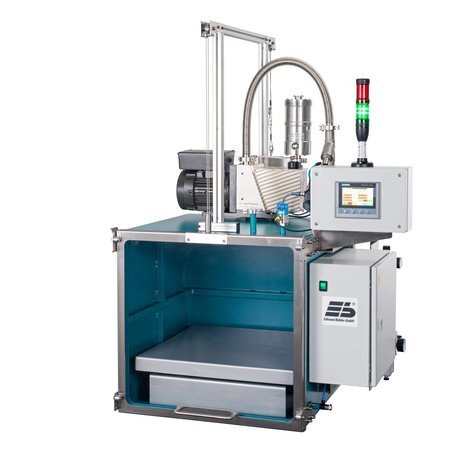

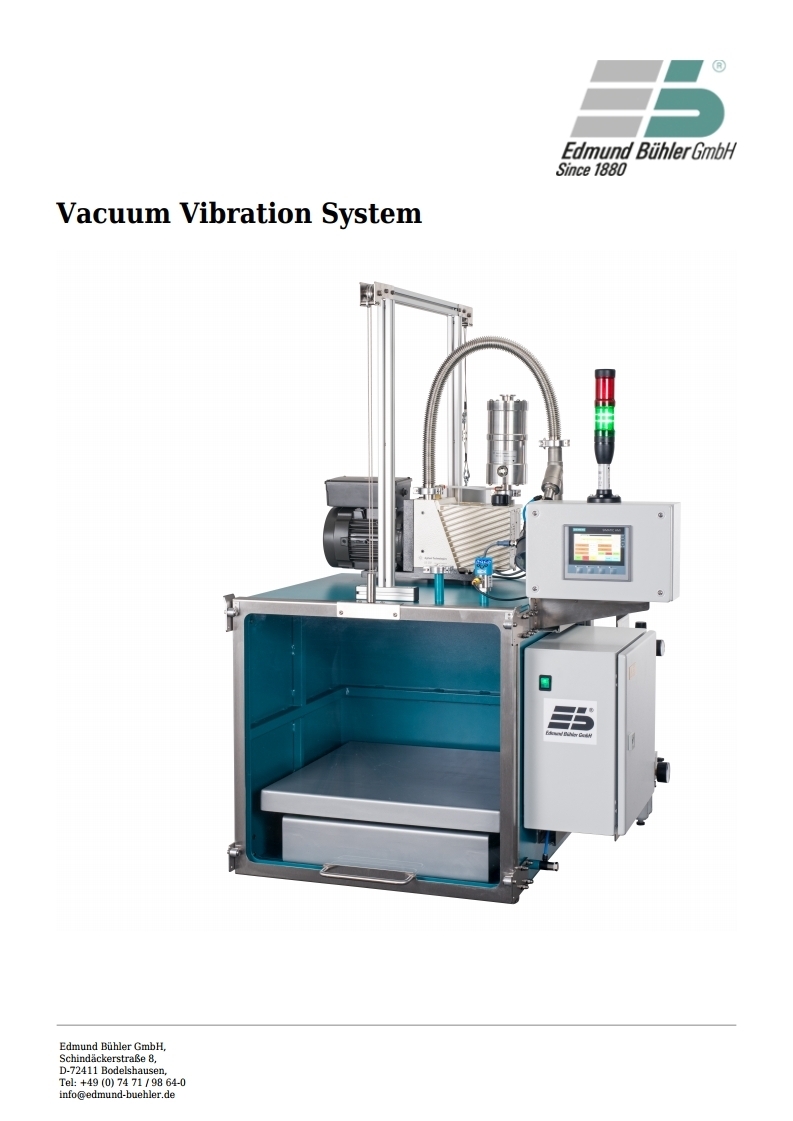

Vacuum Vibration System - 진공 진동 시스템

켐코코리아(주) 2022. 9. 28. 14:30

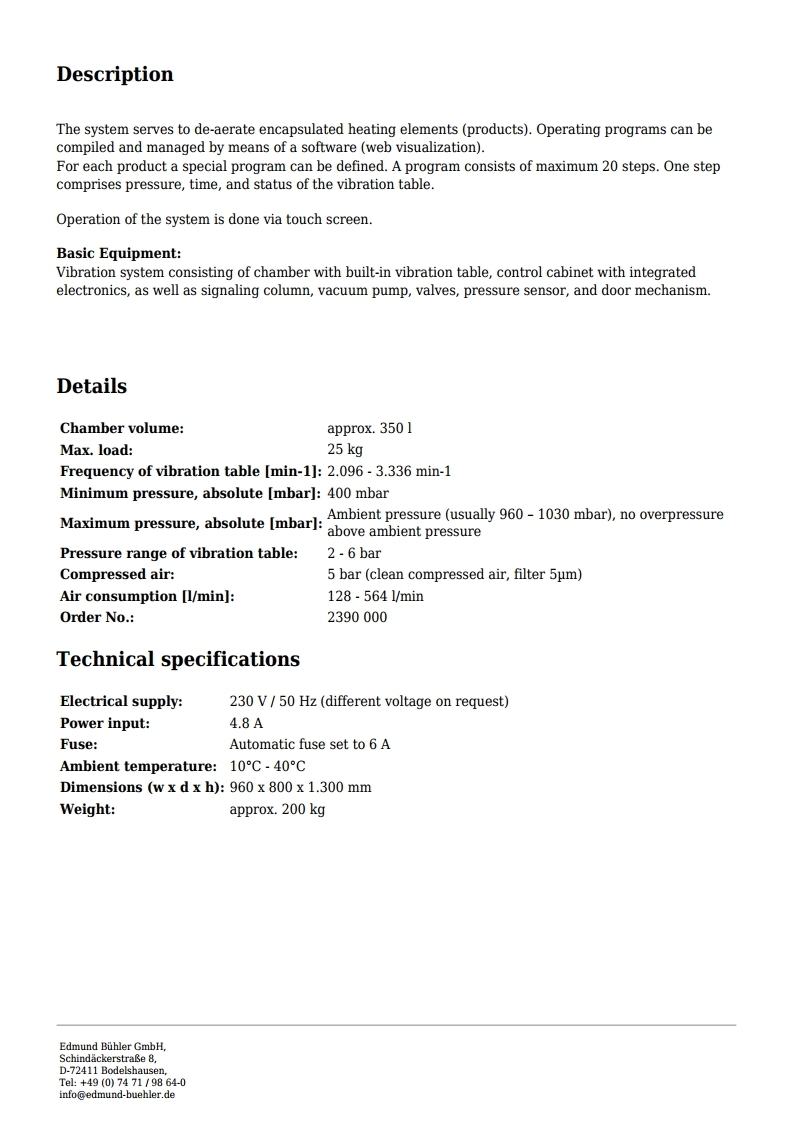

Description



The system serves to de-aerate encapsulated heating elements (products). Operating programs can be compiled and managed by means of a software (web visualization).
For each product a special program can be defined. A program consists of maximum 20 steps. One step comprises pressure, time, and status of the vibration table.

Operation of the system is done via touch screen.

Basic Equipment:
Vibration system consisting of chamber with built-in vibration table, control cabinet with integrated electronics, as well as signaling column, vacuum pump, valves, pressure sensor, and door mechanism.



Details

Chamber volume: approx. 350 l
Max. load: 25 kg
Frequency of vibration table [min-1]: 2.096 - 3.336 min-1
Minimum pressure, absolute [mbar]: 400 mbar
Maximum pressure, absolute [mbar]: Ambient pressure (usually 960 – 1030 mbar), no overpressure above ambient pressure
Pressure range of vibration table: 2 - 6 bar
Compressed air: 5 bar (clean compressed air, filter 5µm)
Air consumption [l/min]: 128 - 564 l/min
Order No.: 2390 000





Technical specifications

Electrical supply: 230 V / 50 Hz (different voltage on request)
Power input: 4.8 A
Fuse: Automatic fuse set to 6 A
Ambient temperature: 10°C - 40°C
Dimensions (w x d x h): 960 x 800 x 1.300 mm
Weight: approx. 200 kg
