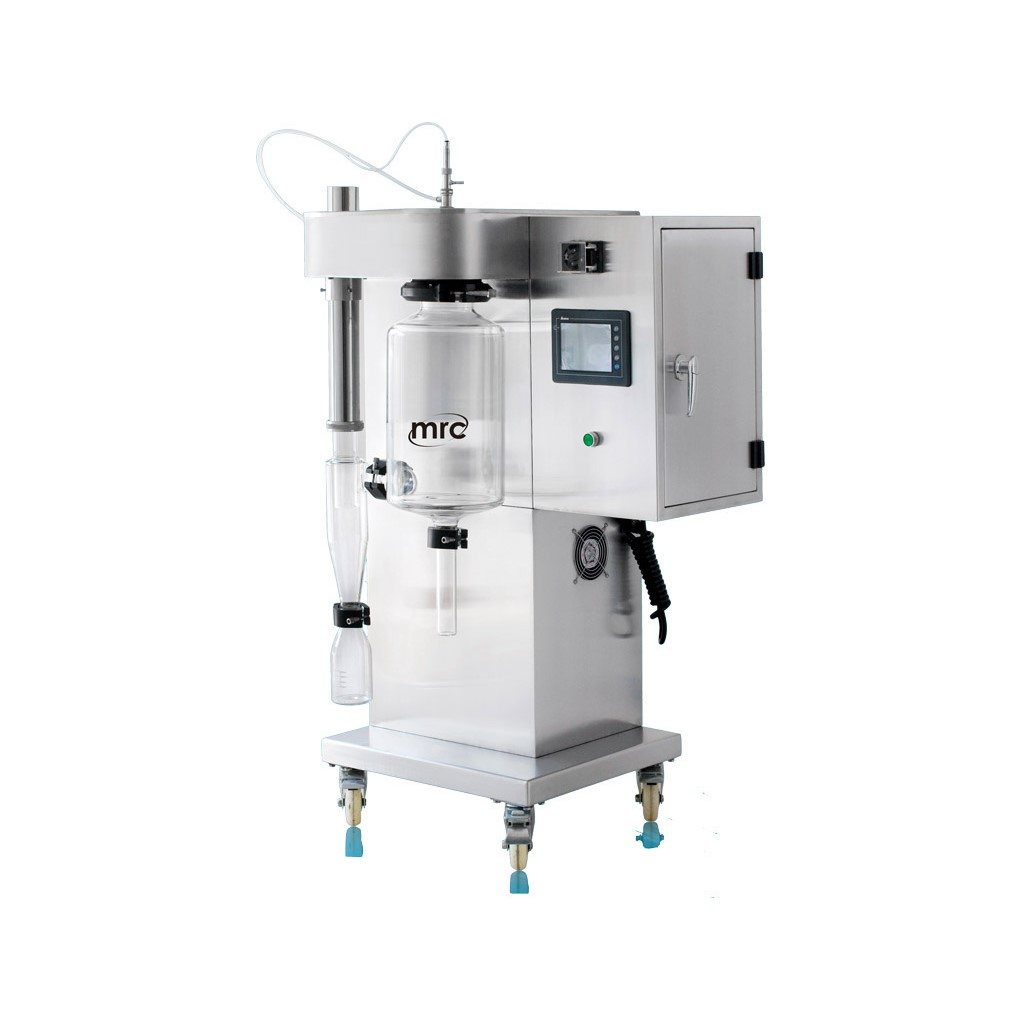

SD-15 Laboratory Scale Spray Dryer 본문
SD-15
Laboratory Scale Spray Dryer
Laboratory Scale Spray Dryer
Atomizer material SUS 316 Stainless steel
Evaporating capacity 1.5 l/h for water
Airflow 0-330 m3/h
Max. Input temperature 250°C
Heater power 3000W
Temperature precision ±1°C
Spray gas 4.2m3/h, 2-5bar
Nozzle jet 0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available)
Nozzle type Two fluid nozzle
Possible particle size range 1-25μm
Mean Residence time 1.0-1.5 sec.
Operation mode Automatic/Manual
Max. Sample feed 2000ml/hr.
Minimum sample volume 30ml
Spray chamber material borosilicate glass
Cyclone separator material borosilicate glass
Receiving tank material borosilicate glass
Body material SUS304 Stainless steel
Seal of cyclone/cylinder Silicone
Compressor Built-in oilless
Sound <60db
Dimensions 750x650x1200mm
Power 3500W
Voltage 220V,50/60 Hz
Weight 110KG
Display 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency
Thermal protection Blower does not stop until temp <90°C
Deblocking Automatic
Inert loop (for organic solvents) Optional
SD-15 Laboratory Scale Spray Dryer
