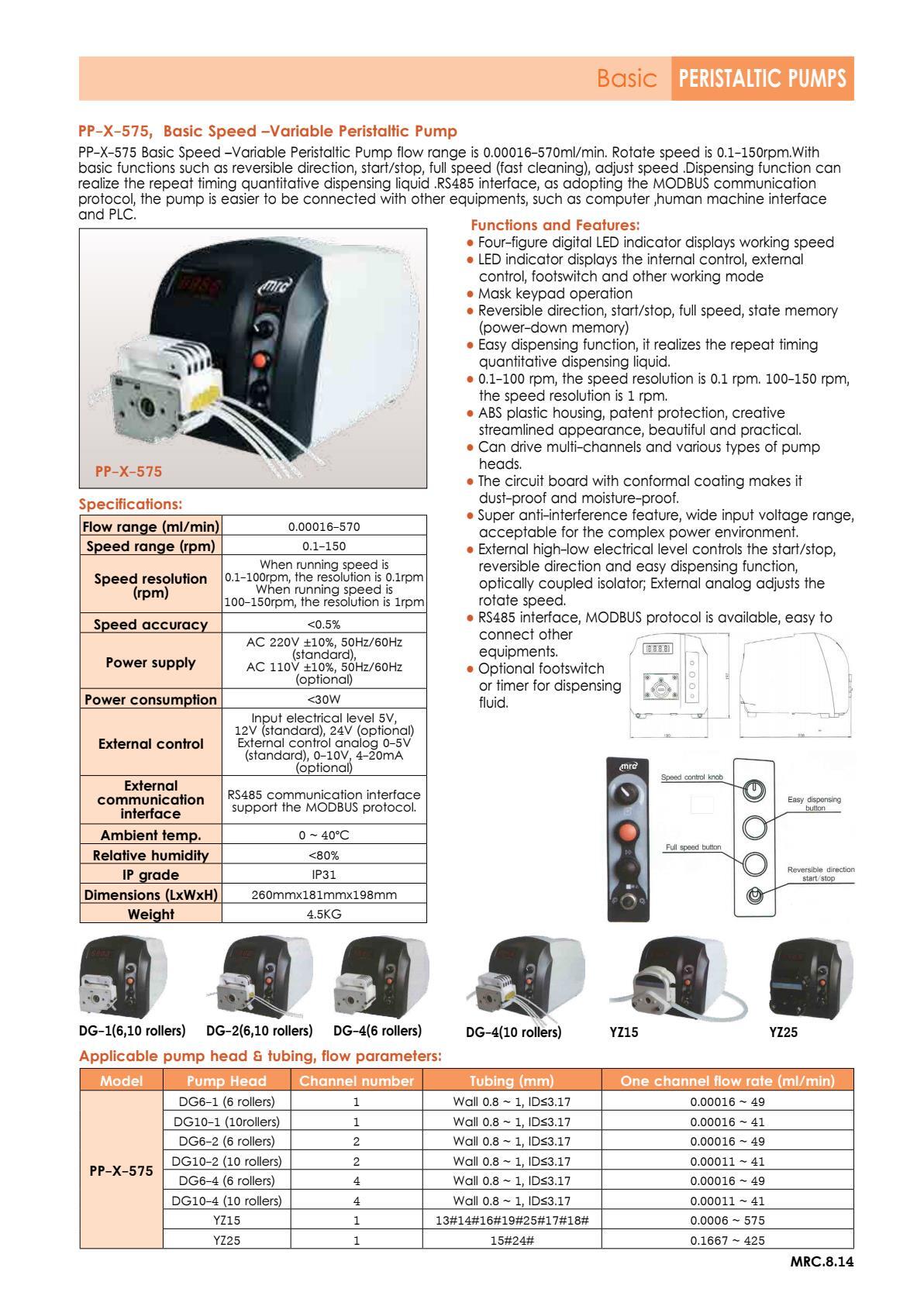

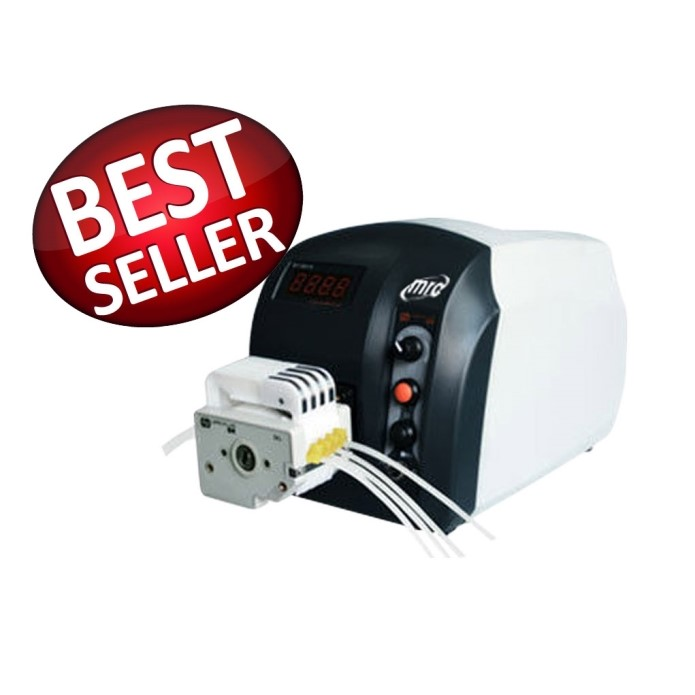

Peristaltic Pump 본문
PP-X-575
Peristaltic Pump up to 575ml/min
| Type | Basic |
| Max. Flow (ml/min) | 575 |
| Min. Flow (ml/min) | 0.00016 |
| Max. Speed (rpm) | 150 |
Flow range (ml/min) 0.00016-570
Speed range (rpm) 0.1-150
Speed resolution:0.1-100rpm, the resolution is 0.1rpm
When running speed is 100-150rpm, the resolution is 1rpm
Speed accuracy <0.5%
Power supply: AC 220V ±10%, 50Hz/60Hz (standard),
AC 110V ±10%, 50Hz/60Hz (optional)
Power consumption <30W
External control: Input electrical level 5V,12V (standard), 24V (optional)
External control analog 0-5V (standard), 0-10V, 4-20mA
External communication interface: RS485 communication interface
support the MODBUS protocol.
Ambient temp. 0 ~ 40°C
Relative humidity <80%
IP grade IP31
Dimensions (LxWxH) 260mmx181mmx198mm
Weight 4.5KG
Peristaltic Pump
