8-channel Evaporator for microtubes- Smart Evaporator™ MT8

8-channel Evaporator for microtubes-
Smart Evaporator™ MT8







• Water evaporation time reduced to 1/5 in comparison with nitrogen evaporators, and centrifugal evaporators
• The model specially for microtube use in biochemistry and life science

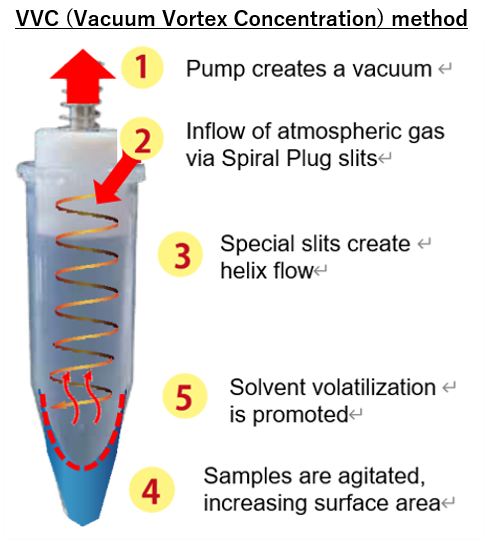

Faster evaporation with microtubes
using Spiral Plug™ E-series

- VVC(Vacuum vortext concentration) method prevents bumping.
- Cylindrical shape to fit with microtube aperture.
- 3 helix slits reduce instance of sample escaping.

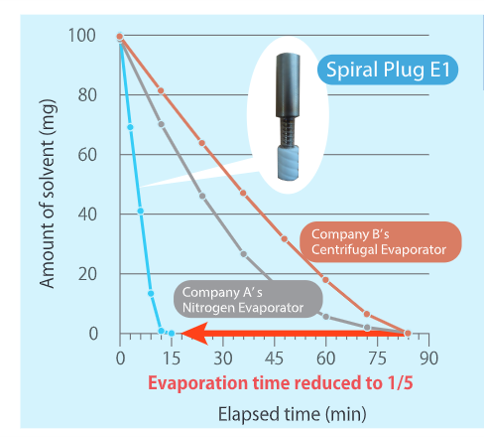

Comparison of evaporation time:

Spiral Plug against conventional methods



Test methods:0.1ml of water prepared in a 1.5mL microtube was evaporated to dryness, under room temperature. The remaining water amount was measured intermittently by its weight.







・Spiral Plug E1

    with dry air, flow rate per a tube at 5L/min, n=8







・Company A's Nitrogen Evaporator

    with dry nitrogen, flow rate per a tube at 0.3L/min, n=6







・Comopany B's Centrifugal Evaporator

    Vacuumed to -0.1MPa gauge n=8







Results:

Evaporation time by Spiral Plug took only 1/5 of the other methods.

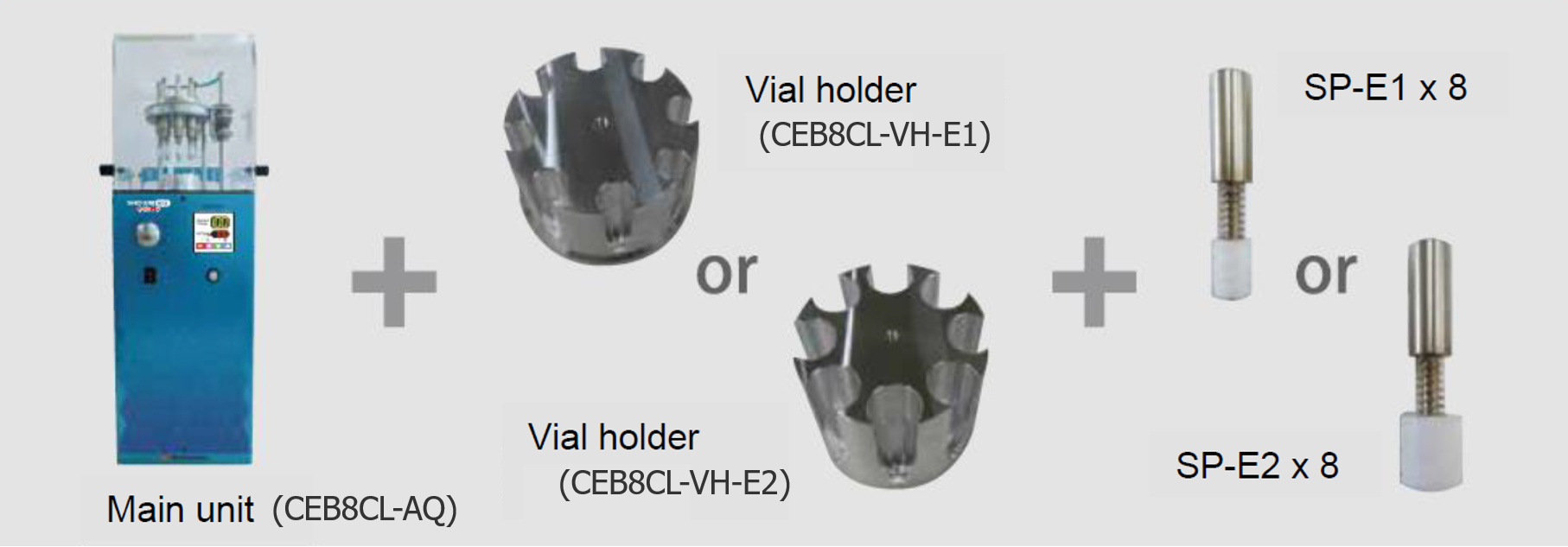

MT8 Starter Set

SSets	Set Name / Components	MT8 Starter Set (E1) / CEB8CL-AQ, CEB8CL-VH-E1, SP-E1 x 8
	Set Name / Components	MT8 Starter Set (E2) / CEB8CL-AQ, CEB8CL-VH-E2, SP-E2 x 8

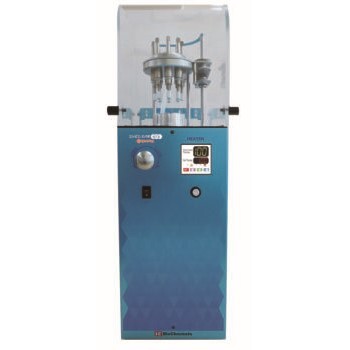

Main Unit Specifications

Main Unit	Main Unit Name	Smart Evaporator MT8
	Catalog Code	CEB8CL-AQ
	Heater shape & size	Round shape φ 68.5
	Gas Purge	OK
	Heater temperature range	Room temperature to 60 ℃
	Size of container	1.5/5.0mL microtube (designed using Eppendorf products as standard)
	Color	1 color (Aqua)
	Size (mm)	W188 (252) mm x D255 (304) mm x H585 mm
	Weight	11.3 kg (excluding attachments)
	Pump	Contained within main unit
	Flow	Max. 60 L/min.
	Power Source	Single phase 100 V 　*A transformer must be used in some areas. The models for other voltages will be available in the future.







Optional Items

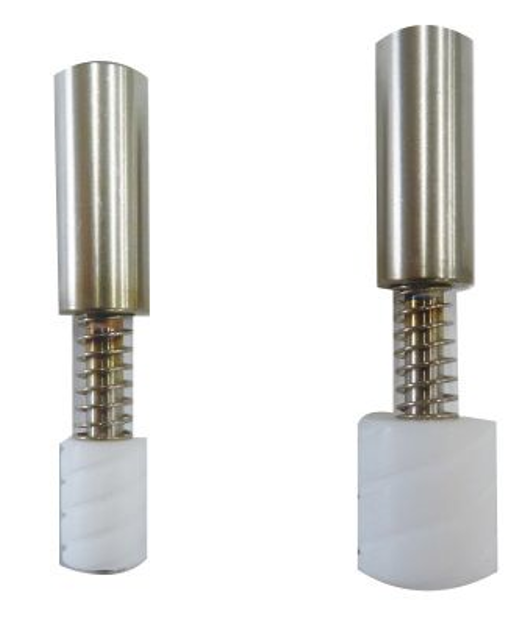

Spiral Plugs

Available in 2 sizes

(for supplement / replacement)

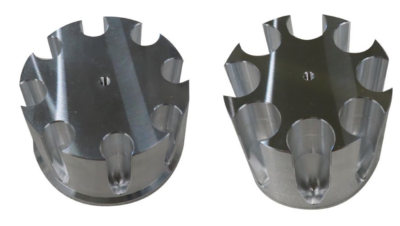

Vial Holder

Available in 2 sizes

(for supplement / replacement)
