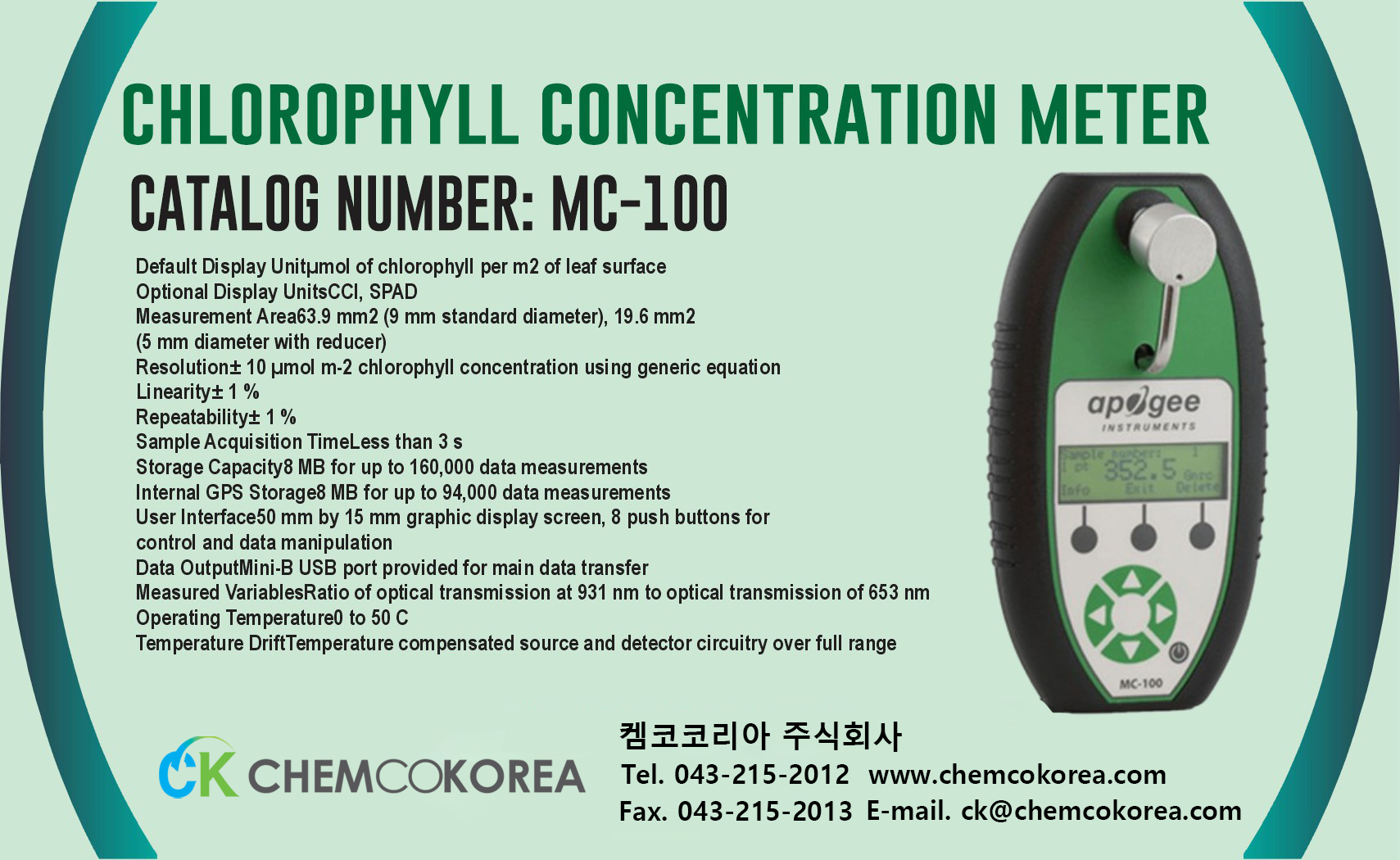

CHLOROPHYLL CONCENTRATION METER 본문
Default Display Unitµmol of chlorophyll per m2 of leaf surface
Optional Display UnitsCCI, SPAD
Measurement Area63.9 mm2 (9 mm standard diameter), 19.6 mm2 (5 mm diameter with reducer)
Resolution± 10 µmol m-2 chlorophyll concentration using generic equation
Linearity± 1 %
Repeatability± 1 %
Sample Acquisition TimeLess than 3 s
Storage Capacity8 MB for up to 160,000 data measurements
Internal GPS Storage8 MB for up to 94,000 data measurements
User Interface50 mm by 15 mm graphic display screen, 8 push buttons for control and data manipulation
Data OutputMini-B USB port provided for main data transfer
Measured VariablesRatio of optical transmission at 931 nm to optical transmission of 653 nm
Operating Temperature0 to 50 C
Temperature DriftTemperature compensated source and detector circuitry over full range
CHLOROPHYLL CONCENTRATION METER
더 자세한 정보는 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
