SEMI AUTOMATIC IMPACT TESTER 150/300J 본문
1、Impact Energy：300J 150J
2、Impact speed：5.2m/s
3、Pendulum pre Yang Angle：150°
4、The sample bearing span：40mm
5、The pedestal jaw with rounded corners：R1.0~1.5mm
6、Impact blade rounded corners：R2.0~2.5mm （ R8mm）
7、Pendulum impact center to some distance：750mm
8、Standard sample size：10×10(7.5 or 5)×55mm
9、moment of pendulum ： M=160.7695N.m 80.3848N.m
10、Power supply and power: three phase four wire 50Hz 380V 250W
11、dimension：2200×650×1900mm
12、Accuracy of Angle： 0.1°
13、Weight： about 500Kg

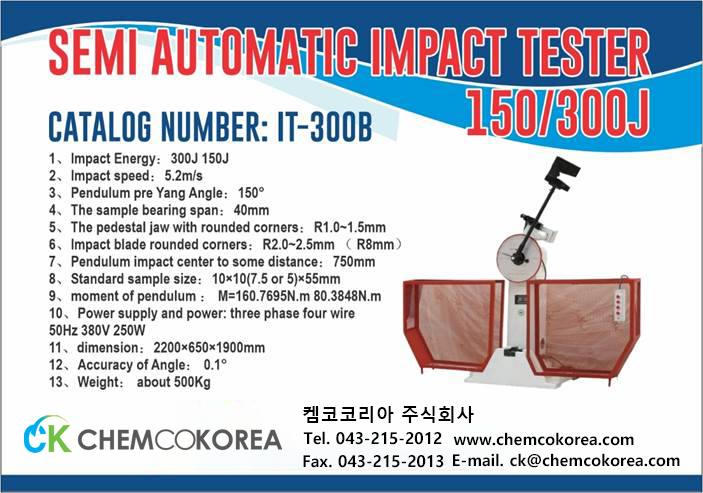

SEMI AUTOMATIC IMPACT TESTER 150/300J : IT-300B
더 자세한 정보는 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
