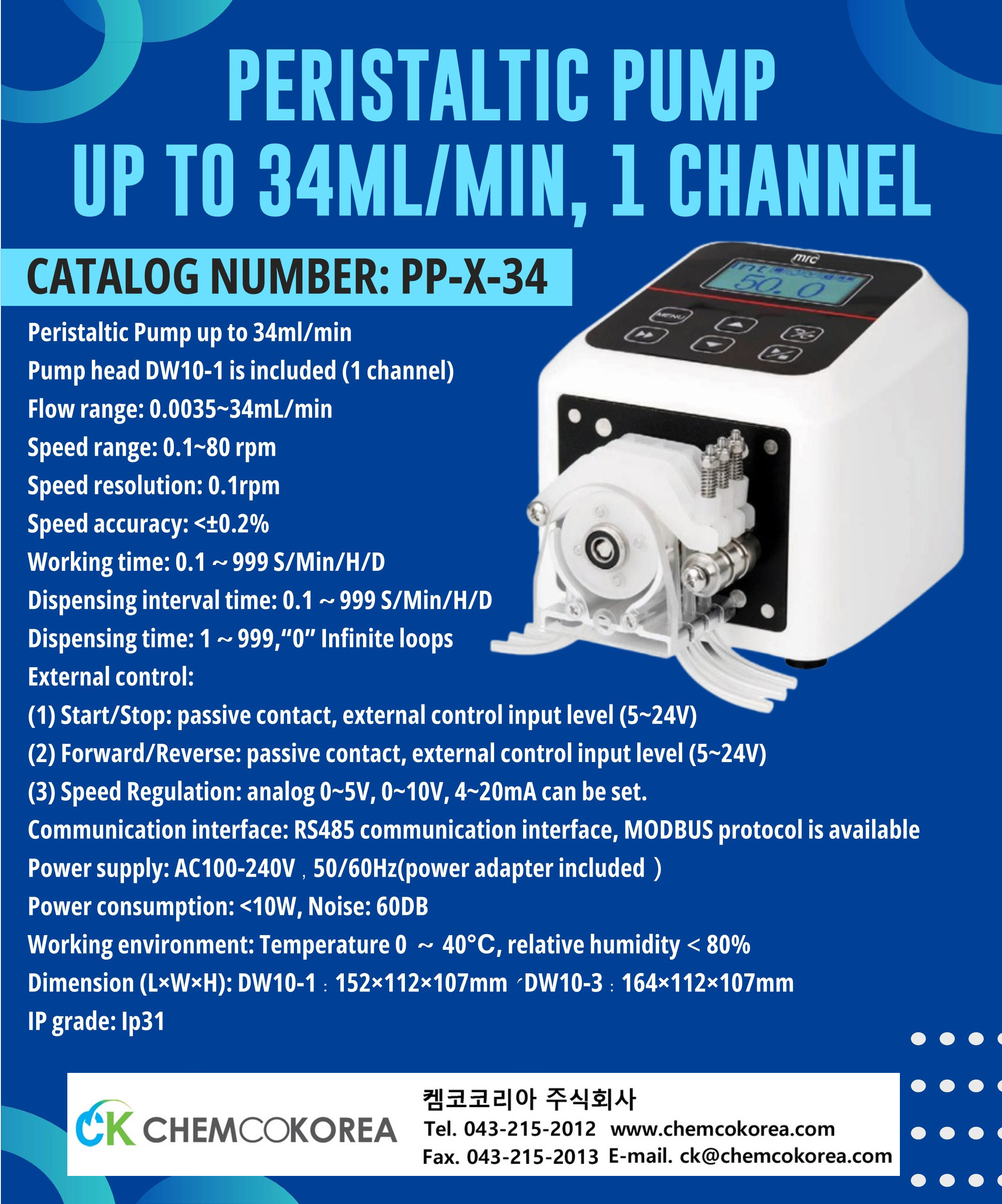

PERISTALTIC PUMP UP TO 30ML/MIN 1CHANNEL, PP-X-34 본문
Peristaltic Pump up to 34ml/min
Pump head DW10-1 is included (1 channel)
Flow range: 0.0035~34mL/min
Speed range: 0.1~80 rpm
Speed resolution: 0.1rpm
Speed accuracy: <±0.2%
Working time: 0.1～999 S/Min/H/D
Dispensing interval time: 0.1～999 S/Min/H/D
Dispensing time: 1～999,“0” Infinite loops
External control:
(1) Start/Stop: passive contact, external control input level (5~24V)
(2) Forward/Reverse: passive contact, external control input level (5~24V)
(3) Speed Regulation: analog 0~5V, 0~10V, 4~20mA can be set.
Communication interface: RS485 communication interface, MODBUS protocol is available
Power supply: AC100-240V，50/60Hz(power adapter included）
Power consumption: <10W
Noise: 60DB
Working environment: Temperature 0 ～ 40℃, relative humidity＜80%
Dimension (L×W×H): DW10-1：152×112×107mm 、DW10-3：164×112×107mm
IP grade: IP31
PERISTALTIC PUMP UP TO 30ML/MIN 1CHANNEL : PP-X-34
