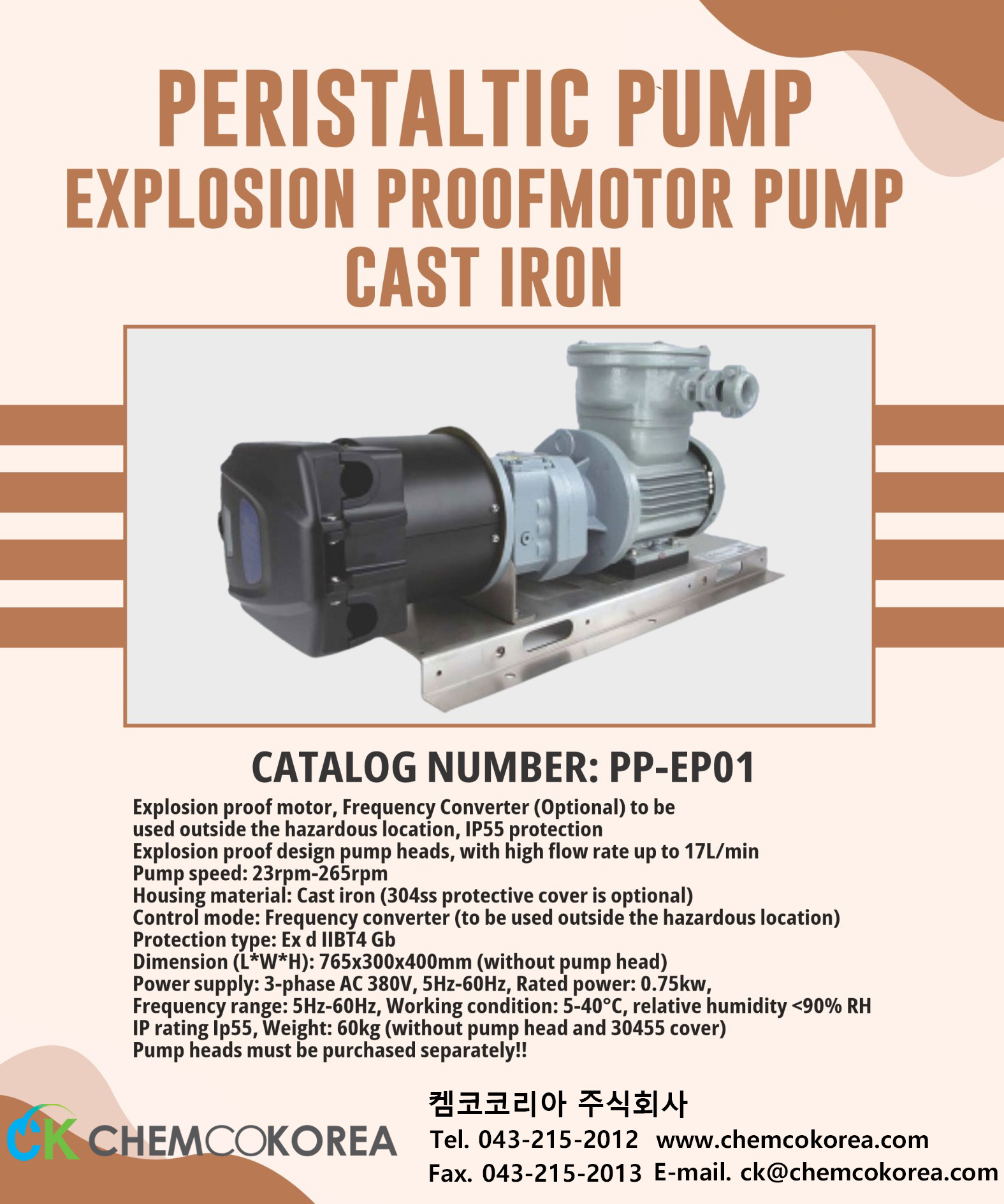

PERISTALTIC PUMP EXPLOSION PROOF MOTOR PUMP CAST IRON, PP-EP01 본문
° Explosion proof motor
° Frequency Converter (Optional) to be
used outside the hazardous location
° IP55 protection
° Explosion proof design pump heads
with high flow rate up to 17L/min
Pump speed: 23rpm-265rpm
Housing material: Cast iron (304ss protective cover is optional)
Control mode: Frequency converter (to be used outside the hazardous location)
Protection type: Ex d IIBT4 Gb
Dimension (L*W*H): 765x300x400mm (without pump head)
Power supply: 3-phase AC 380V, 5Hz-60Hz
Rated power: 0.75kw
Frequency range: 5Hz-60Hz
Working condition: 5-40°C, relative humidity <90% RH
IP rating IP55
Weight: 60kg (without pump head and 30455 cover)
Pump heads must be purchased separately!!
PERISTALTIC PUMP EXPLOSION PROOF MOTOR PUMP CAST IRON, PP-EP01
더 자세한 정보는 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
