SPIN COATER WITH ACRYLIC CHAMBER, SPC-80 본문
Supply voltageAC220V, 50/60Hz
Spin speed0~10000rpm
Acceleration100~5000rpm/s
Speed resolution1rpm
Single step time3000s
Substrate sizeDiameter ≤ 8 inches (200mm)
Chamber materialAcrylic
Operation method7 inches HD LCD touch screen
Dispensing methodManual dispensing, optional precision syringe pump
Coating curve5 segments per curve, a total of5 curves can be stored
Pumping portΦ8mm quick screw interface
Overall size290mm×365mm×260mm
Total Weight12kg
Vacuum pumpDry mechanical pump
Pumping rate1.1L/s
Power supplyAC220V 50/60Hz

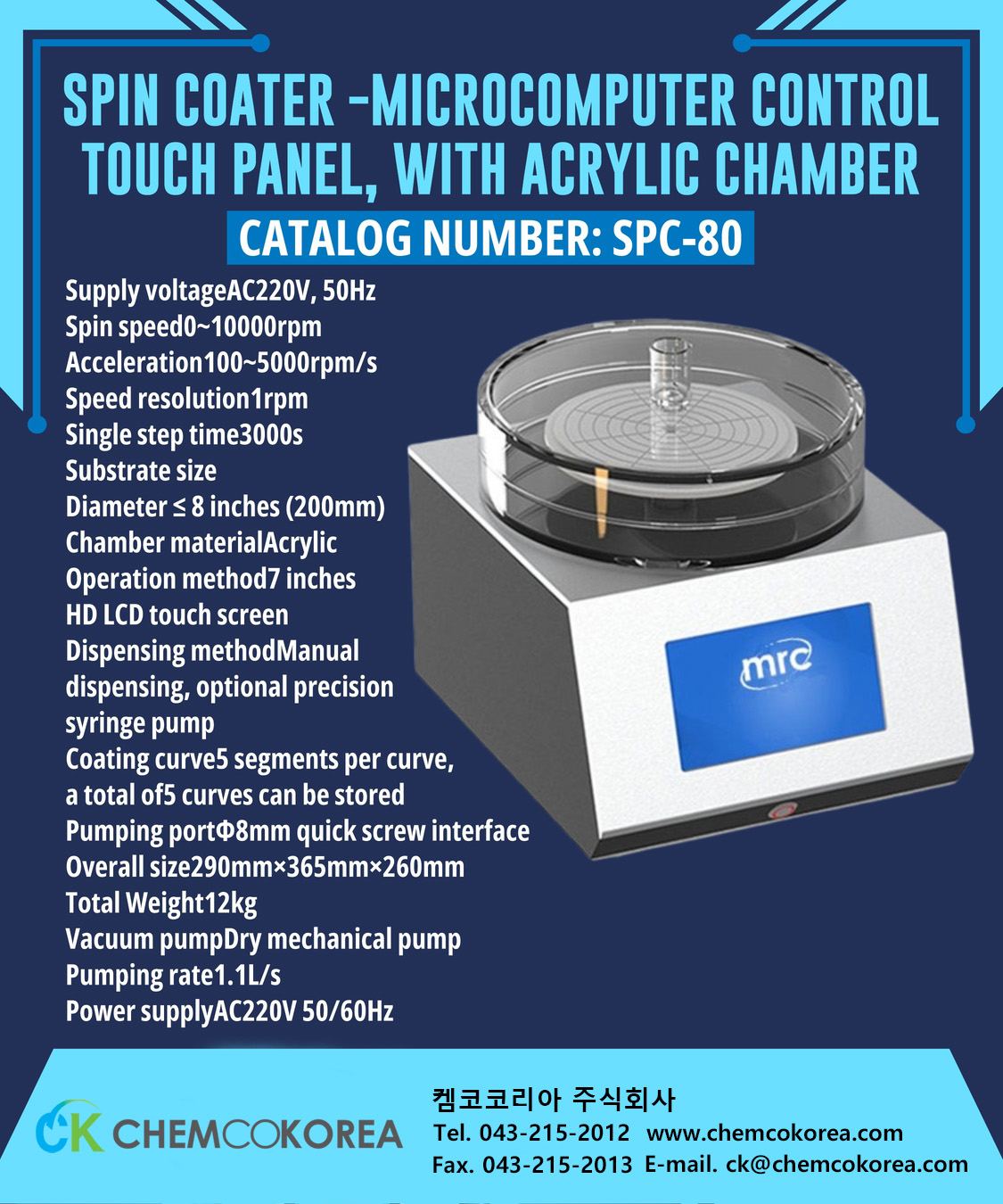

SPIN COATER - MICROCOMPUTER CONTROL + TOUCH PANEL WITH ACRYLIC CHAMBER : SPC-80
