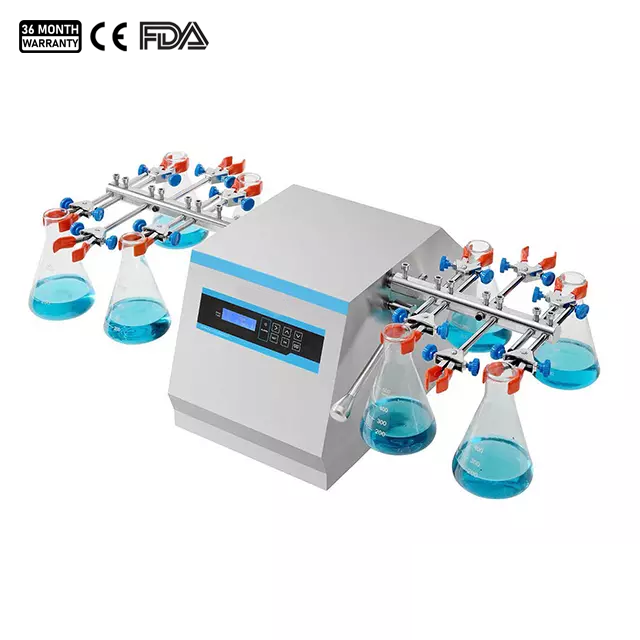

Wrist Shaker, SK-810, 손목진탕기, 핸드모션쉐이커 본문
Wrist Action Shaker Specifications:
ModelSK-810
| Control Mode | P. I. D (Microcomputer scans the micro-processing chip) |
| Display Mode | LCD |
| Oscillation Mode | Wrist |
| Drive Mode | Single axis balanced drive type |
| Ambient Temperature Requirement (℃) |
15~35 |
| Curve Programing Settings | Programing settings of repetition, steps and eight-section curves |
| Safety Functions | Independent audible and visual alarm for overspeed, monitoring timer, stand-alone leakage or over-current protection |
| Additional Functions | Clock display, startup after power again, speed storage, parameter memory, automatic operation, automatic stop, timed operation |
| Speed Range (r/min) | 30-600 |
| Speed Accuracy (r/min) | ±1 |
| Amplitude of Rocking Plate (mm) | 12 |
| Timing Range (min) | 0-999.59 |
| Power (W) | 80 |
| Power Supply | AC200∽240V, 50~60Hz |
| Material of Outer Box | Stainless steel main machine, high quality aluminum arm, cast iron frame |
| Sizes(W×D×H)(mm) | 272×452×320 (Main machine) |
| Shipping Size (W×D×H)(mm) | 550×460×560 |
| N.W./G.W. (kg) | 52/65 |
Wrist Action Shaker Feature:
- Adopt PID microprocessor control system, equipped with LCD, intuitive and convenient operation.
- Using maintenance-free spherical bearings to improve the stability and life of the equipment.
- Built-in 8 customized programs with flexible speed and time settings to meet different needs.
- Supports automatic running and stopping and timer function while providing time display, parameter memory and recovery function.
- Analog manual oscillation, adjustable amplitude from slight to strong, suitable for a variety of containers.
- With leakage and over-current safety protection systems, the safety of the equipment is improved.
- Widely used in warm rooms, incubator and refrigerator environments to meet a variety of experimental needs.
Wrist Shaker, SK-810
