Spin coater -microcomputer control+Touch Panel, with acrylic chamber
켐코코리아 2025. 11. 26. 10:00
Supply voltageAC220V, 50/60Hz
Spin speed0~10000rpm
Acceleration100~5000rpm/s
Speed resolution1rpm
Single step time3000s
Substrate sizeDiameter ≤ 8 inches (200mm)
Chamber materialAcrylic
Operation method7 inches HD LCD touch screen
Dispensing methodManual dispensing, optional precision syringe pump
Coating curve5 segments per curve, a total of5 curves can be stored
Pumping portΦ8mm quick screw interface
Overall size290mm×365mm×260mm
Total Weight12kg
Vacuum pumpDry mechanical pump
Pumping rate1.1L/s
Power supplyAC220V 50/60Hz

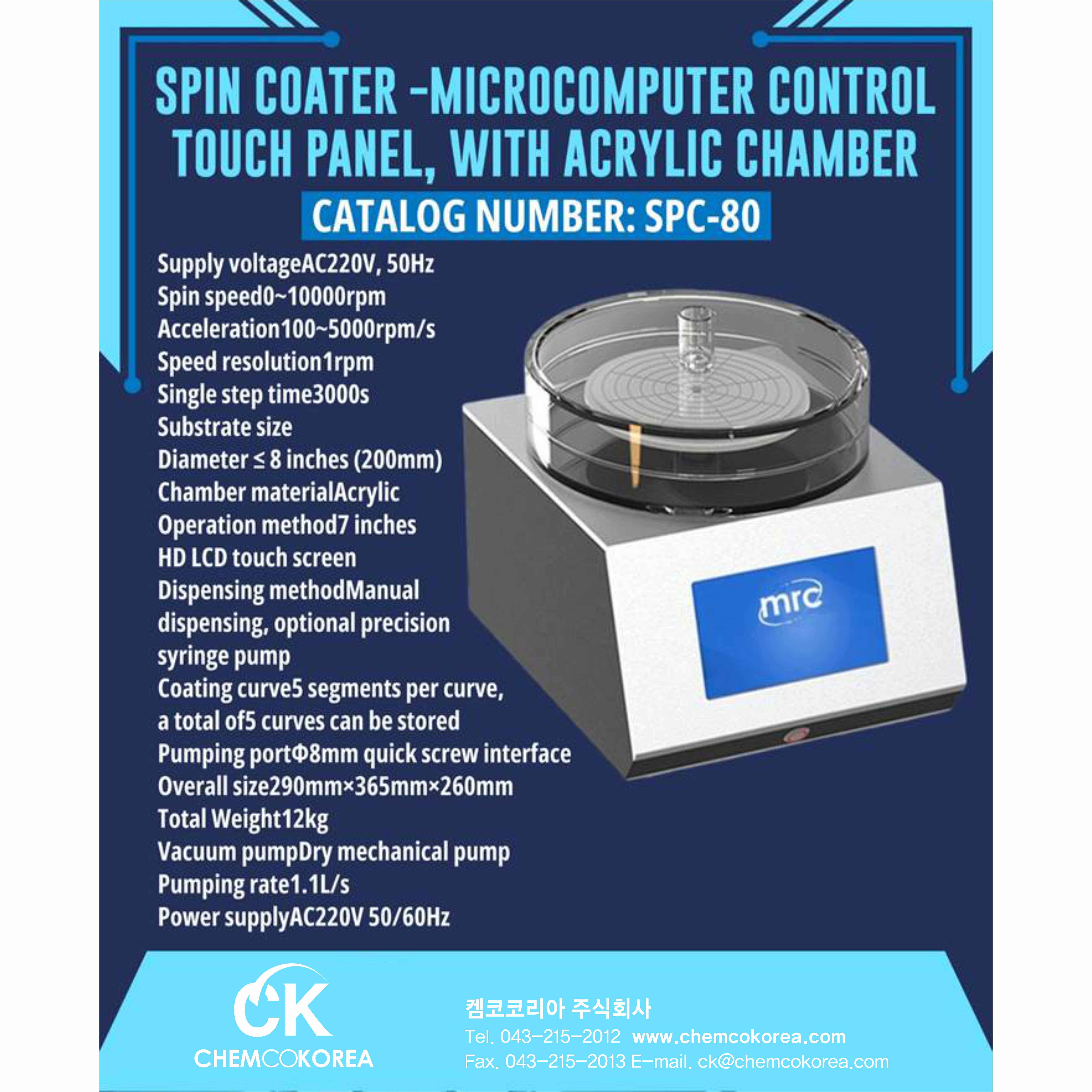

Spin coater -microcomputer control+Touch Panel, with acrylic chamber, SPC-80
더 자세한 정보는 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
