Heat Deflection Tester, HDT-304B4 본문
Touch Screen Display.
Test Stations - 4.
4 temperature measuring points
Enables to produce graphs showing the deformation of each
specimen and temperature increase versus time.
Operating temperature: ambient temperature to 300°C ● Heating rate: (120±10) °C/h or (50±5) °C/h
The Max Temperature
Error: ±0.5°C ● Distortion Range: -0.1 mm >- 1.1 mm ●The Max. Distortion Error: 0.01 mm
● Heating
Medium: methyl silicon oil ● Power Supply: 110V/220V 60HZ/50HZ.
Apparatus is used to determine the Heat Deflection Temperature
This tester may be used for tests conforming to the following standards: ISO 75, ISO 306, ASTM 0648,
ASTM 0 1525, G81T 1633, G81T 1634. Housing made of steel. Stainless steel inner bath. The designed volume ensures a very good thermal exchange.

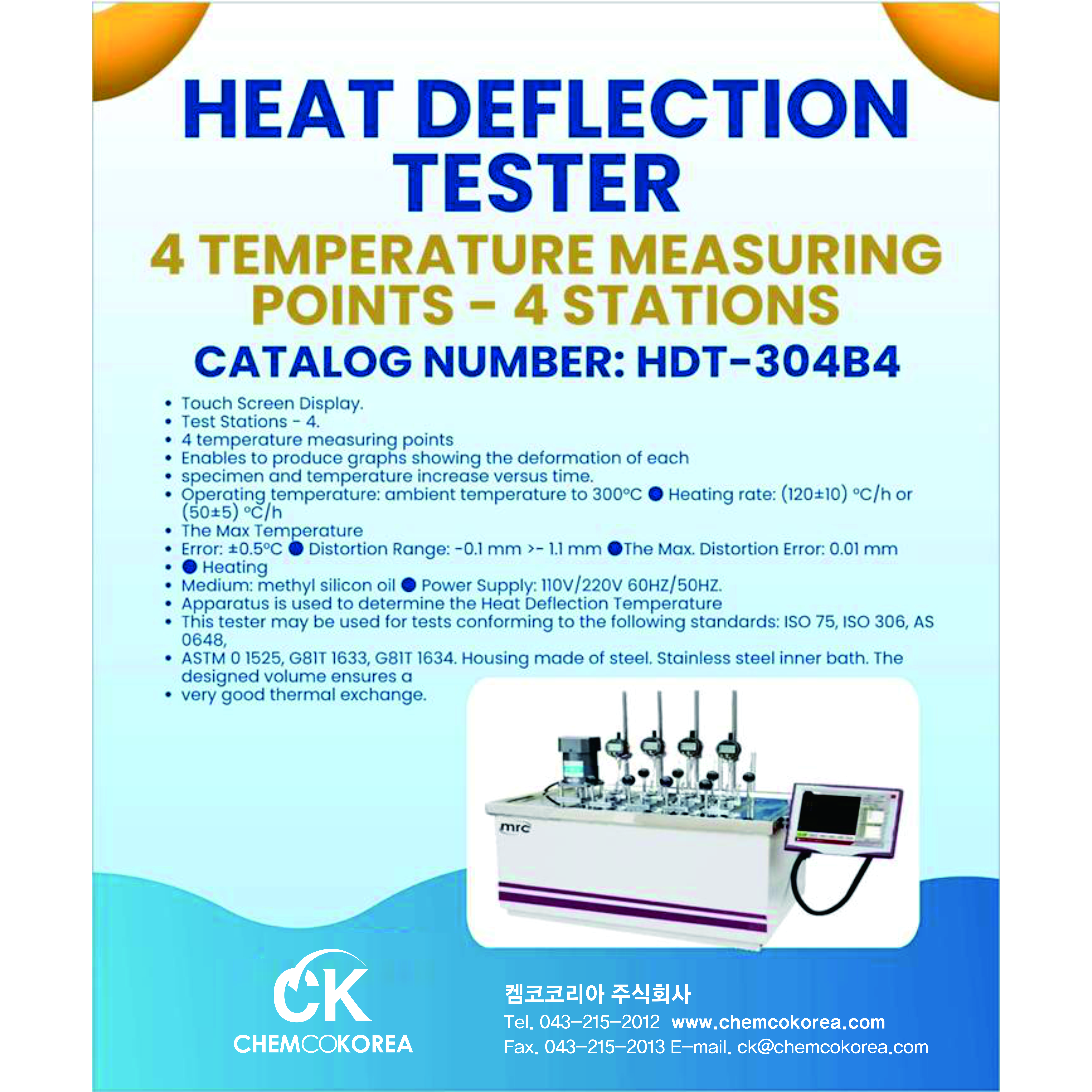

Heat DEFLECTION TESTER, HDT-304B4
