5 parameter Tablet Tester (EHT-5P) 본문

제약장비/경도측정기

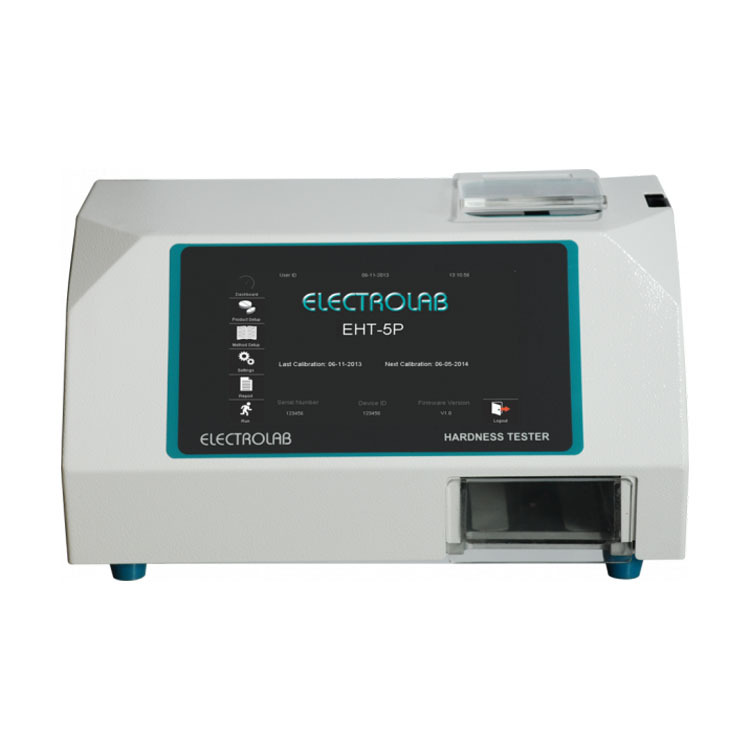

5 parameter Tablet Tester (EHT-5P)

켐코코리아(주) 2022. 7. 19. 09:25

경도측정기

  • Weight, Thickness, Diameter/ Length, Width, Harness
  • 3N ~ 800 N (± 1 N)
  • 7` touch screen display
  • Programmable calibration and verification modes

Features

Measures 5 parameters - Weight, Thickness, Diameter
(Length), Width and Hardness
Full color intuitive touch screen display
Constant speed and constant force measuring principle
Up to 100 samples per test
Jaw with multi groove
3 level user management security
Indicator for calibration due date
Light and audio alarm indicator for Instrument status
Programmable calibration and verification modes
Auto / Manual mode with programmable delay time
Adjustable delay between the samples
Tablet manager tray for easy carrying of tables from weighing scale
User selectable templates for printing reports
Protective cover to protect operator from inhaling tablet dust from tablets that 'explode'
Embedded printer for printing test results, validation
and calibration reports
21 CFR part 11 compliance
10,000 product storage
Audit trial



Specifications





Model EHT-5P
Parameters weight, Thickness, Diameter / Lenght, Width, Hardness
Compliance Body can be stainless steel (S.S) to comply with cGMP regulations or painted MS
Display 7.0* touch screen display
Samples per test Up to 100
Adjustable delay between the samples 1 sec to 99 secs
Measuring principle constant speed
Printing of data and graphs User defined templates
Hardness Range 3N - 800N
Accuracy ±1N


Jaw opening 40mm (up to 65mm optional)
Jaw Dual (Big and Small groove )
Units for hardness N, Kp, Sc, user defined
Units for thickness /diameter mm / inch
Constant speed setting 1mm to 3 mm in step of 0.1 mm
Compatible weighing balances Sartorius/ Mettler Toledo/Shimadzu/Contech/ Ohaus / Radwag
Security Multi level user management ( flexible 10 role )
Hardness /thickness calibration 2 point calibration
3 point verification linearity
Report format User defined tabular format
Interface LAN and serial



Ordering Information





Products
Product Code Description Quantity
0940600 EHT -5P (Body made of S.S.) -230V 1
0920600 EHT -5P (Body made of M.S.) -230V 1
0930600 EHT -5P (Body made of S.S.) -110V 1





Standard Accessories
Part number Description Quantity
0905A00014 Brush 1
0906A00003 EHT groove tongue 1
0905A00012 Magnetic tablet manager tray 1
0905A00013 Acrylic tray 1





Optional Accessories
Part number Description Quantity
0906A00002 Flat tongue 1
0906A00004 65 mm jaw 1
0906A00007 STARLITE-12TM Thermal paper roll(for EHT -5P 1
0906A000011 Validation kit : 1
  -5 Kg brass weight for calibration and
validation of hardness

  -10 mm calibrated gauge block for
validation of thickness



경도측정기 5 parameter Tablet Tester (EHT-5P)

더 자세한 설명이 필요하다면 켐코코리아로 문의하세요~!



켐코코리아 주식회사

Tel. 043-215-2012

e-mail. ck@chemcokorea.com

Web. http://www.chemcokorea.com/

Blog. http://blog.chemcokorea.com/
