FroSyn Cooling Station 본문
FroSyn 냉각 스테이션
- 혁신적인 바이알 or 둥근 바닥 플라스크 냉각
- -60℃ 까지 효율적인 냉각 가능
- 기존 얼음 or 드라이아이스 bath 대체 제품
- Pt100 센서
We are pleased to share the NEW FroSyn; an innovative fluid-free cooling plate that enables rapid cooling of samples in vials or round bottom flasks to below -60 oC.

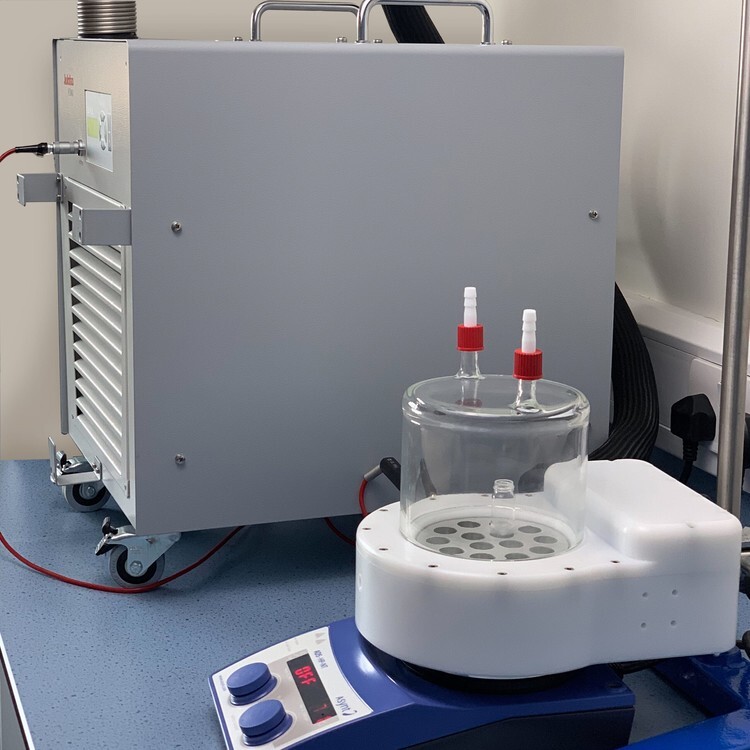

Designed in conjunction with temperature control specialists, Julabo GmbH, as a sustainable alternative to traditional ice and dry-ice baths within the laboratory; FroSyn enables rapid cooling of samples, is simple to use and is compatible with a wide range of glassware.

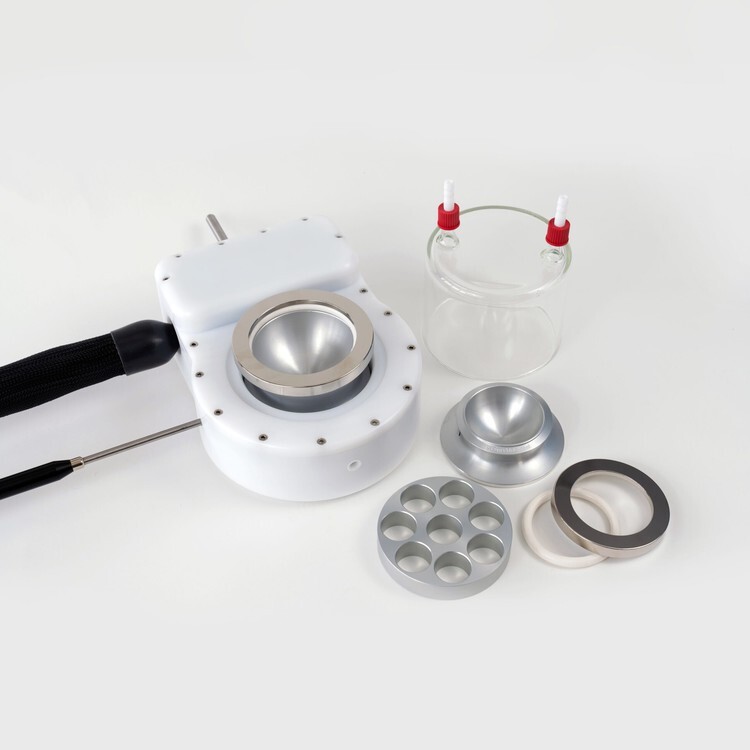

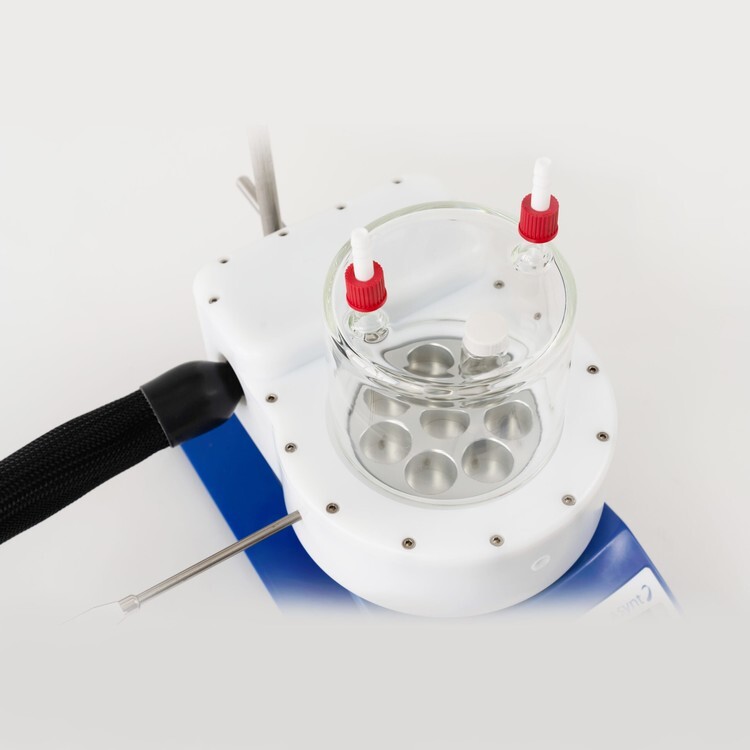

The FroSyn can be used with either a set of standard insets for round bottom flasks from 50 mL to 500 mL, or with custom manufactured reaction vial holding plates. The use of either weights and seals for the flask inserts or an inerting dome with the vial plates prevents the formation of ice on the glassware. Other custom cooling accessories are also available to compliment different applications, for example a 4-position holding module for battery research and development.
Get in touch for further information and to discuss the options available!

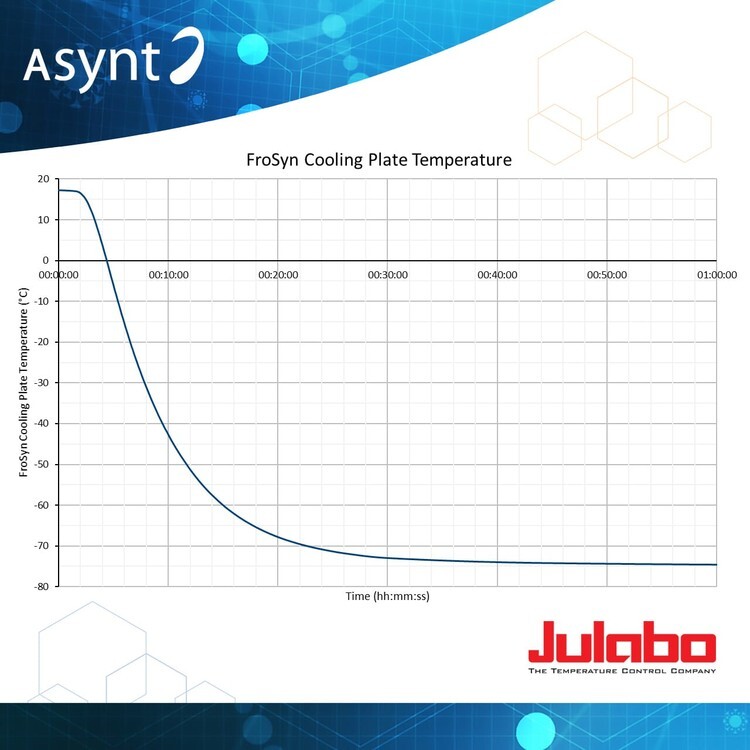

Active temperature control, via. a Pt100 sensor positioned in the insulated base plate, allows the user to set a defined plate temperature (down to -70 °C) and prevents temperature fluctuations over time – resulting in excellent reproducibility and improved reaction control. Unlike dry ice cooling baths that require constant attention, the stable and controlled sub-ambient performance of the FroSyn means that even overnight reactions can be performed with complete confidence.
Specialist insulation around the cooling probe and plate on the FroSyn improves performance, keeps the apparatus ice-free and helps eliminate the possibility of operator cold burns during operation.

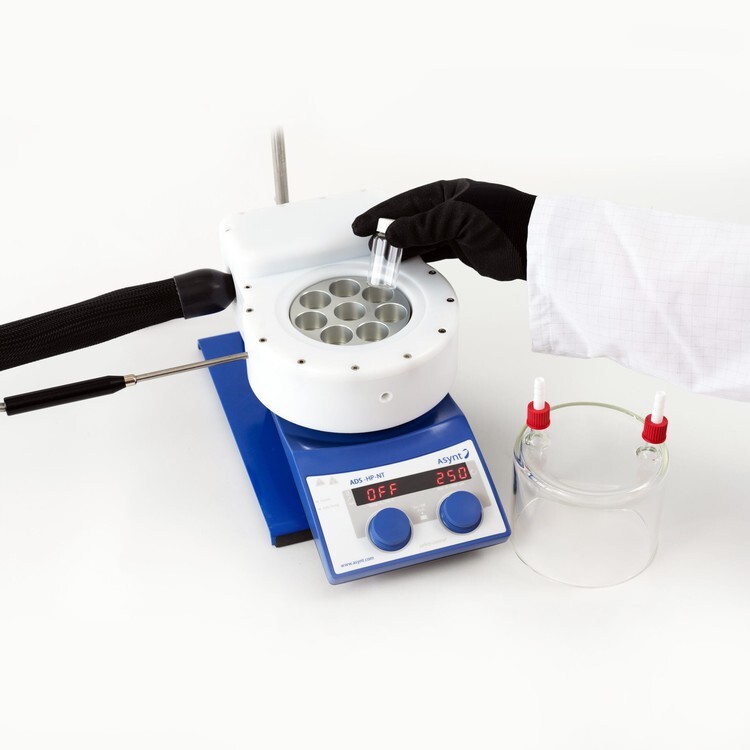

Optional stirring via magnetic stirrer plate.
FroSyn Cooling Station
더 자세한 설명이 필요하다면 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
