The DrySyn SnowStorm Reactor 본문
DrySyn 스노우스톰 반응기
- 저온 반응 화학 솔루션
- 질소/아르곤으로 돔 퍼징 가능
- 150℃ ~ -30℃ 온도 제어 가능
- 최대 27개 바이알 까지 사용 가능

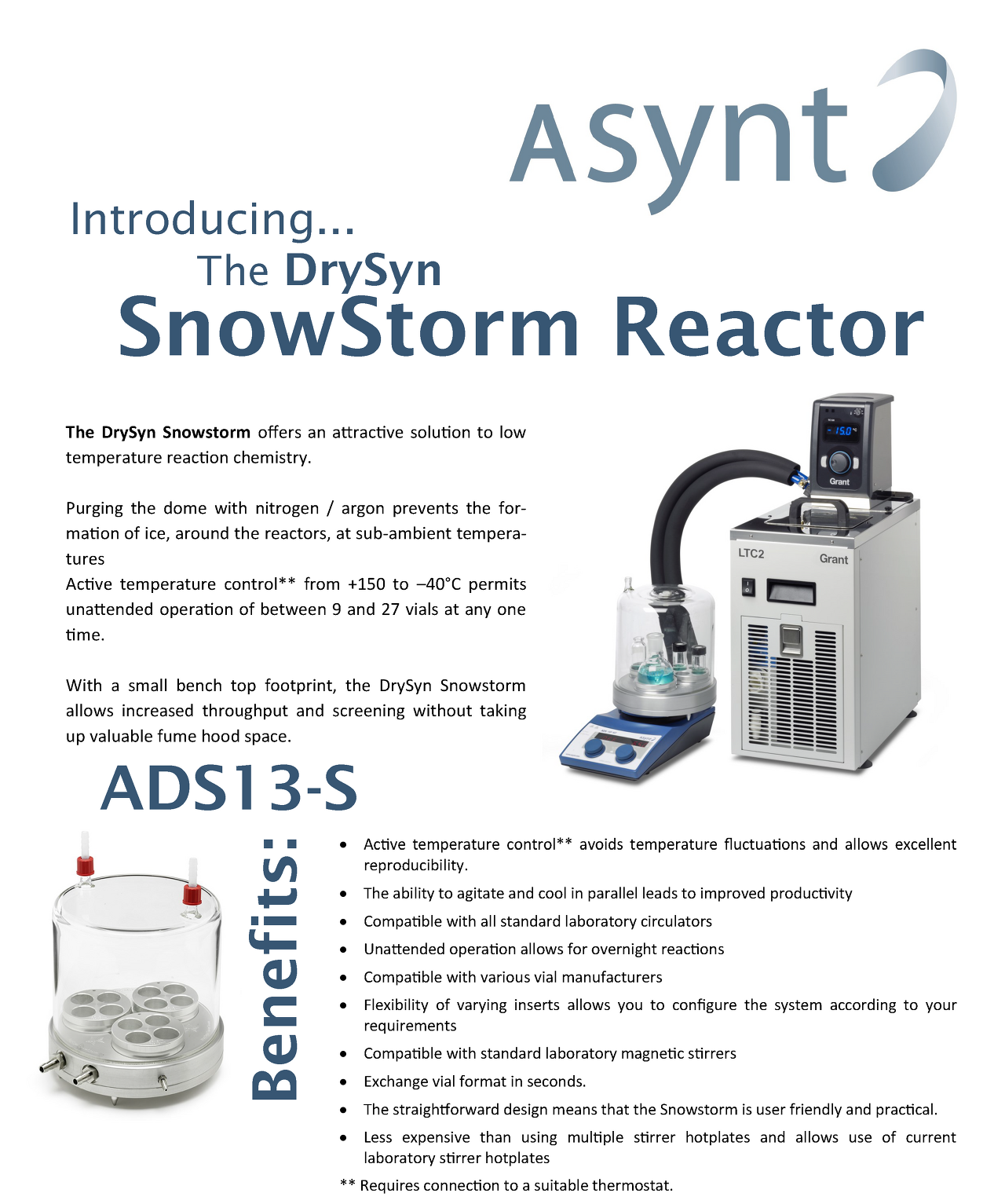

The DrySyn Snowstorm reactor offers an attractive solution to low temperature reaction chemistry.
Purging the dome with nitrogen / argon prevents the formation of ice around the reactors at sub-ambient temperatures.
Active temperature control from +150 oC to -30 oC permits unattended operation of up to 27 vials at any one time.
With a small bench top footprint, the DrySyn Snowstorm allows increased throughput and screening without taking up valuable fume hood space.

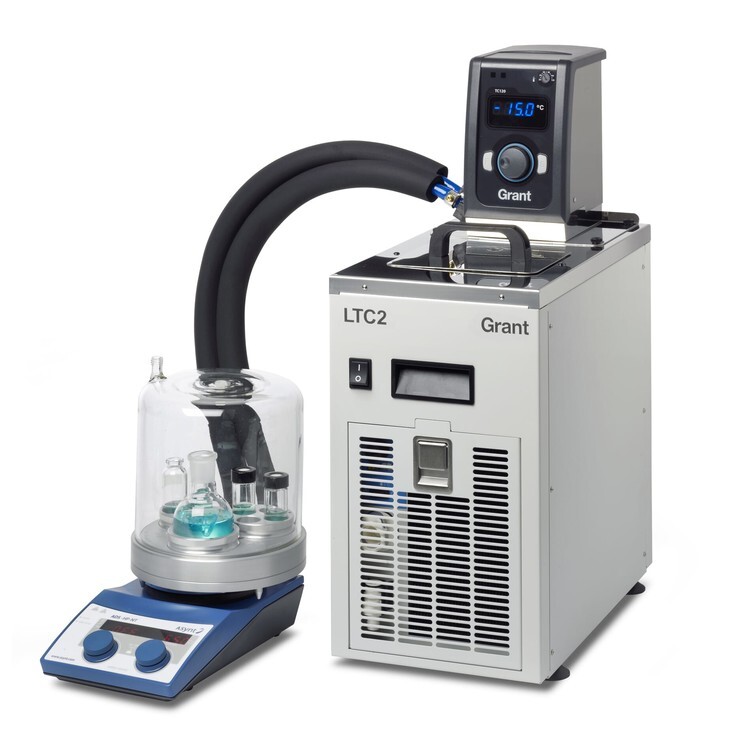

Our gallery images show the DrySyn SnowStorm reactor with both Grant and Julabo chillers.
Made in the UK.
- Max. solution temperature* -30oC

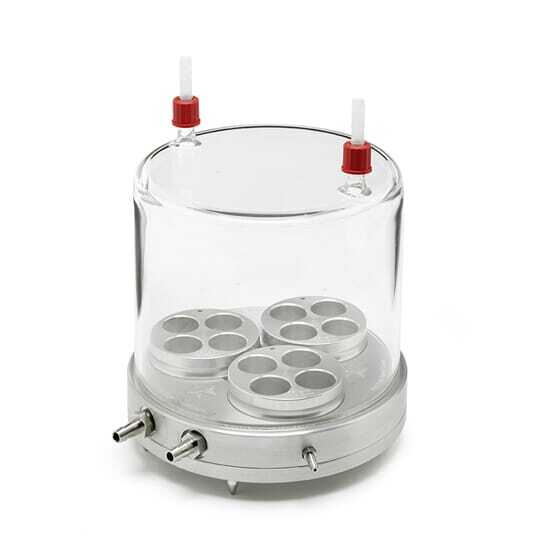

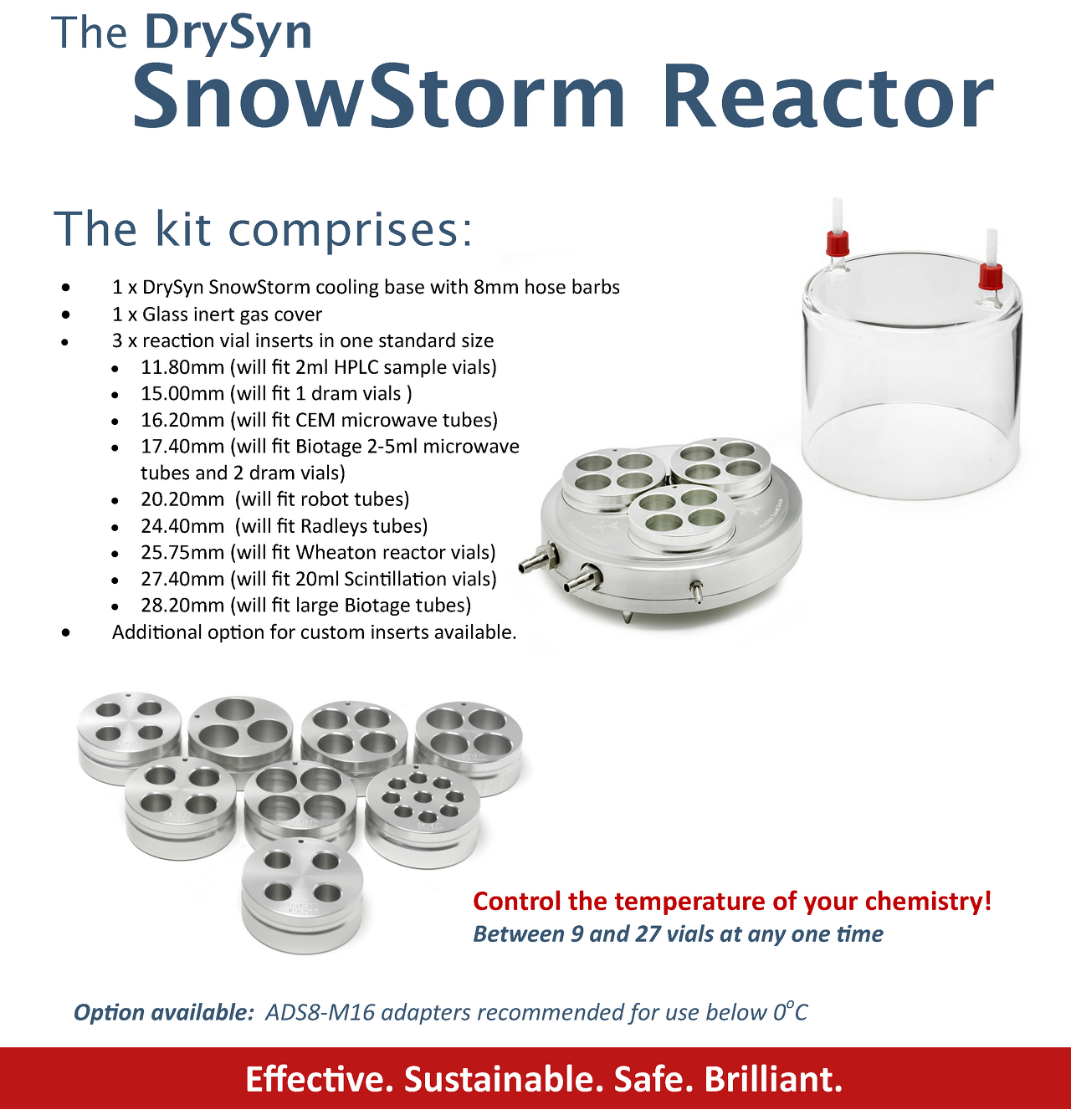

- Kit supplied: Cooling base, glass dome, one pack of 3 standard reaction vial inserts as detailed below.
- This base will also fit our Multi/Multi-M/Multi-S range of inserts for round bottom flasks from 5 mL to 500 mL.
- Vial / Tube Reaction scale:
Standard sizes, each 4 position except 27.40mm / 28.20mm options:
- 11.80mm (will fit 2 mL HPLC sample vials)
- 15.00mm (will fit 1 dram vials)
- 16.20mm (will fit CEM microwave tubes)
- 17.40mm (will fit Biotage 2-5 mL microwave tubes)
- 20.20mm (will fit robot tubes)
- 24.40mm (will fit Radleys tubes)
- 25.75mm (will fit Wheaton reactor vials)
- 27.40mm (will fit 20 mL Scintillation vials) this size is a 3 position
- 28.20mm (will fit large Biotage tubes) this size is 3 position
- Custom : Choose any diameter up to 28.20mm
- Material: anodised aluminium
- Base diameter: 87mm
*Attained with Huber Ministat 240 (without insulation).
The DrySyn SnowStorm Reactor
더 자세한 설명이 필요하다면 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
