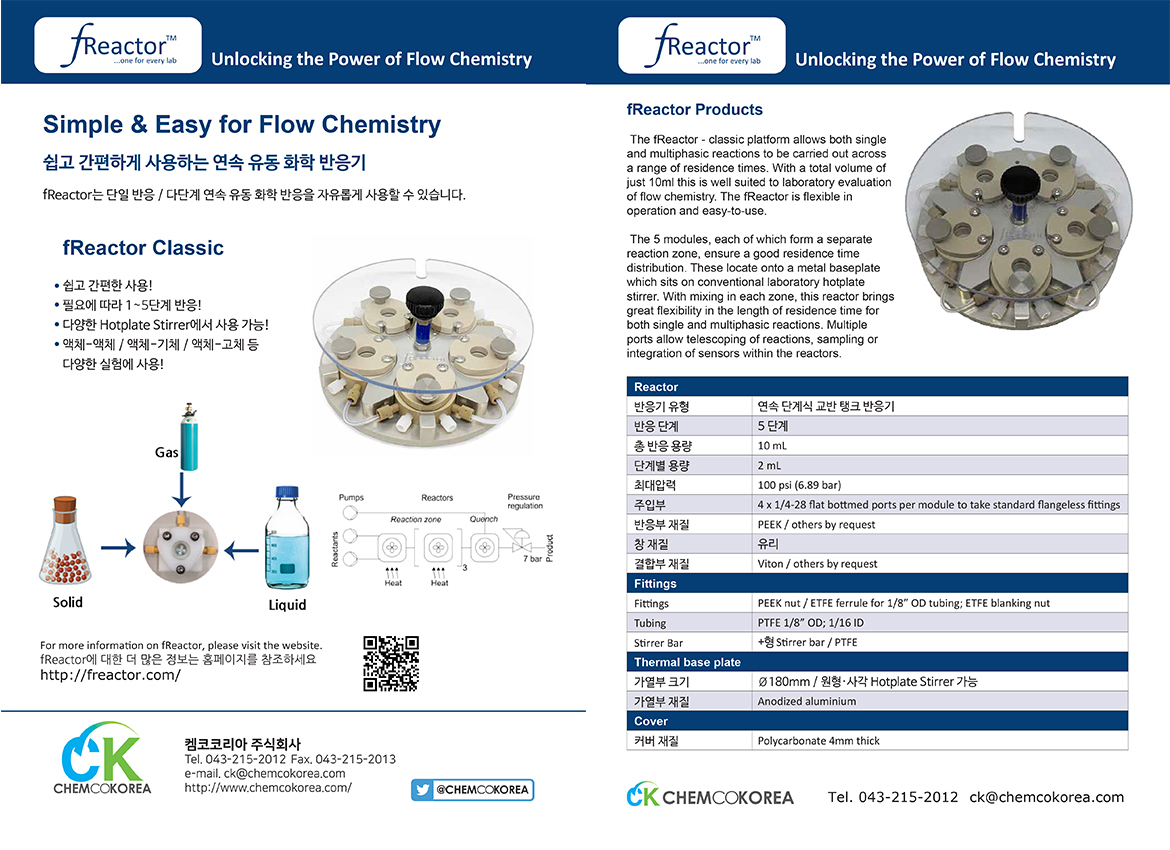

f-Reactor classic complete kit (1.8ml*5) 유동 화학 반응기 본문
혁신적인 유동 화학 반응기
- 1.8ml 용량의 연속 교반 탱크 반응기(CSTR) 5개 구성
- 마그네틱 핫플레이트 이용 가열 및 혼합
- HPLC, Syringe, Peristaltic, gear 등의 fluidic pump 사용 가능
Designed by chemists and engineers from within the Institute of Process Research and Development at the University of Leeds, the fReactor Classic is simple to assemble and modify, making it suitable for a wide range of continuous-flow processes.

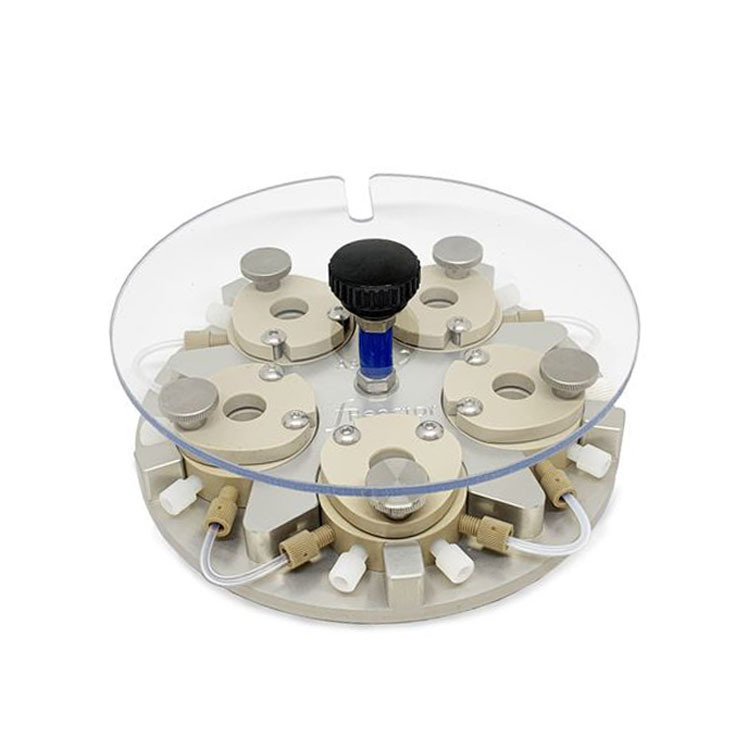

fReactor Classic includes 5 x Continuous Stirred Tank Reactors (CSTR) of 1.8 mL volume each.
Heating and mixing are provided by a standard magnetic hotplate stirrer and fluidic pumps (e.g. HPLC, syringe, peristaltic, gear) are used to drive the reagents around the modules.
Integrating the efficiency of pipe-flow processing with the advanced mixing of a CSTR, the fReactor Classic delivers a general “plug-and-play” setup which is well-suited to multiphasic reactions; allowing chemists to explore continuous-flow processing, with little expertise required.
fReactor isn’t just about the hardware; we also offer a dedicated website to help you get started with flow chemistry, and with setting up your fReactor module/s: https://www.freactor.com/
Kit comprises:
- 5 x PEEK fReactor Classic modules, each 1.8 mL
- 1 x aluminium holding plate with thermocouple hole & protective screen
- 15 x Viton o-rings
- 6 x PTFE cross stirrer bars
- 20 x flangeless PEEK fittings with ETFE ferrules
- 15 x Tefzel blanking plugs
- 2.5 m x PTFE tubing
- 1 x tube cutter
- 1 x hex key
Further information on the fReactor Classic, including examples of different reaction types conducted using the platform, can be found in: Org. Process Res. Dev. 2017, 21, 9, 1294-1301.
For further information on the principles of flow chemistry and how the fReactor Classic platform fits into this please visit www.freactor.com
Complete your setup with the following accessories that we also provide:
- Kalrez O-rings
- Back pressure regulators
- Pressure relief valves
- Hotplate stirrers
- Syringe pumps
ReactorFittingsThermal base plateCover
| Type of reactor | Cascaded continuous stirred tank reactor |
| Number of stages | 5 |
| Total assembled reactor volume - no stirrer | 8.8 ml |
| Individual stage volume - no stirrer | 1.75 ml |
| Typical cross stirrer volume | 0.2 ml |
| Pressure rating | 100 psi (6.89bar) |
| Entry ports: | 4 x 1/4-28 flat bottomed ports per module to take standard flangeless fittings |
| Material: Base | PEEK as standard, others by request |
| Material: Window | Toughened glass |
| Material: Seal | Viton as standard, others by request |
| Supplied fittings | PEEK nut and ETFE ferrule for 1/8" OD tubing; ETFE blanking nut |
| Supplied tubing | PTFE 1/8" OD; 1/16 ID |
| Supplied stirrer bar | PTFE cross design |
| Thermal base plate dimensions | 180mm diameter. Supplied alignment pins suit hotplates 135mm or 145mm, optional pins available for square bases, or can be positioned on any flat surface without pins. |
| Material: Thermal base plate | Anodized aluminium |
| Material: Cover | Polycarbonate 4mm thick |
f-Reactor classic complete kit (1.8ml*5) 유동 화학 반응기
더 자세한 설명이 필요하다면 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
