f-Reactor MAXI Complete Kit (7.5ml*5) 유동 화학 반응기 본문
혁신적인 유동 화학 반응기
- 7.5ml 용량의 연속 교반 탱크 반응기(CSTR) 5개 구성
- 마그네틱 핫플레이트 이용 가열 및 혼합
- HPLC, Syringe, Peristaltic, gear 등의 fluidic pump 사용 가능
Designed by chemists and engineers from within the Institute of Process Research and Development at the University of Leeds, the fReactor MAXI is simple to assemble and modify, making it suitable for a wide range of continuous-flow processes.

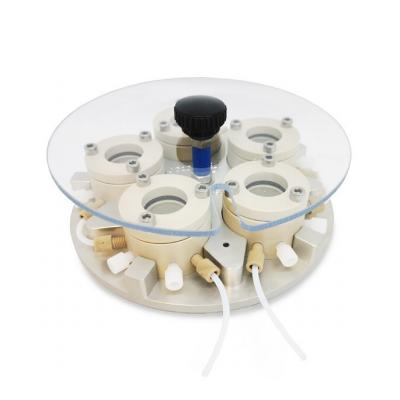

fReactor MAXI includes 5 x Continuous Stirred Tank Reactors (CSTR) of 7.5 mL volume each.

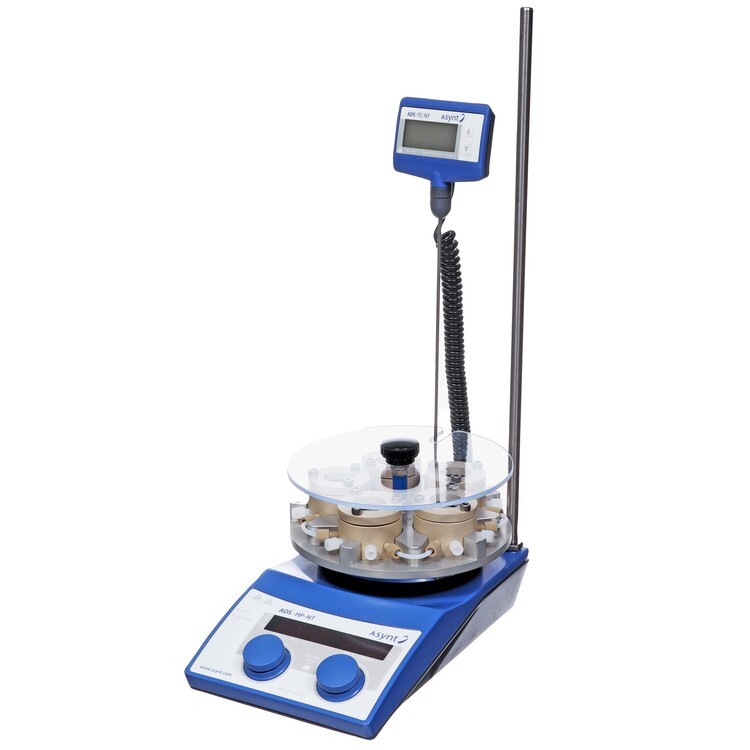

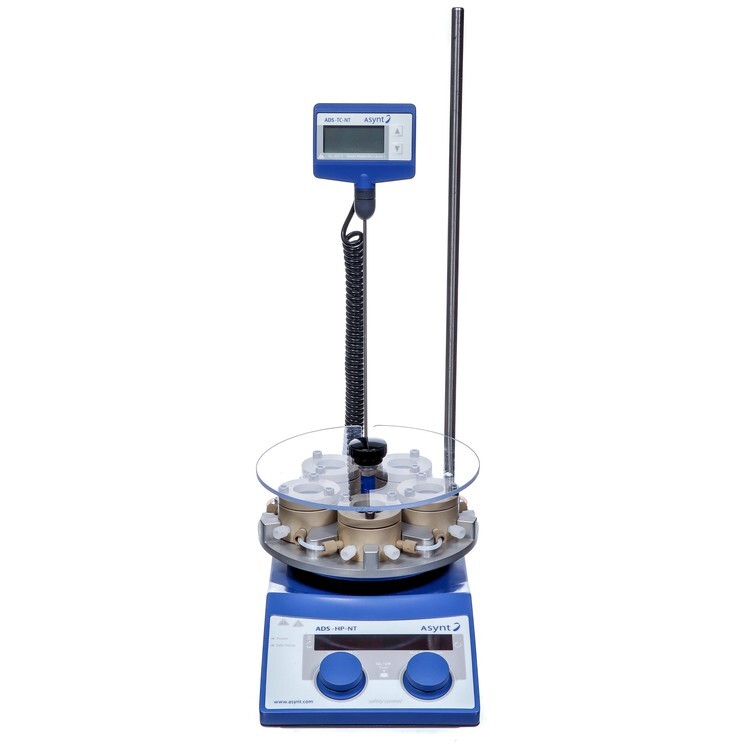

Heating and mixing are provided by a standard magnetic hotplate stirrer and fluidic pumps (e.g. HPLC, syringe, peristaltic, gear) are used to drive the reagents around the modules.
Integrating the efficiency of pipe-flow processing with the advanced mixing of a CSTR, the fReactor range delivers a general “plug-and-play” setup which is well-suited to multiphasic reactions; allowing chemists to explore continuous-flow processing, with little expertise required.
fReactor isn’t just about the hardware; we also offer a dedicated website to help you get started with flow chemistry, and with setting up your fReactor module/s: https://www.freactor.com/
Kit comprises:
- 5 x PEEK fReactor MAXI modules
- 1 x aluminium holding plate with thermocouple hole & protective screen
- 15 x Viton o-rings
- 6 x PTFE cross stirrer bars
- 20 x flangeless PEEK fittings with ETFE ferrules
- 15 x Tefzel blanking plugs
- 2.5 m x PTFE tubing
- 1 x tube cutter
- 1 x hex key
Further information on the fReactor platform, including examples of different reaction types conducted using the platform, can be found in: Org. Process Res. Dev. 2017, 21, 9, 1294-1301.
For further information on the principles of flow chemistry and how the fReactor MAXI platform fits into this please visit www.freactor.com
Complete your setup with the following accessories that we also provide:
- Kalrez O-rings
- Back pressure regulators
- Pressure relief valves
- Hotplate stirrers
- Syringe pumps
f-Reactor MAXI Complete Kit (7.5ml*5) 유동 화학 반응기
더 자세한 설명이 필요하다면 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
