M-UNIVERSAL 원심분리기 본문

실험실 기초장비/Centrifuge

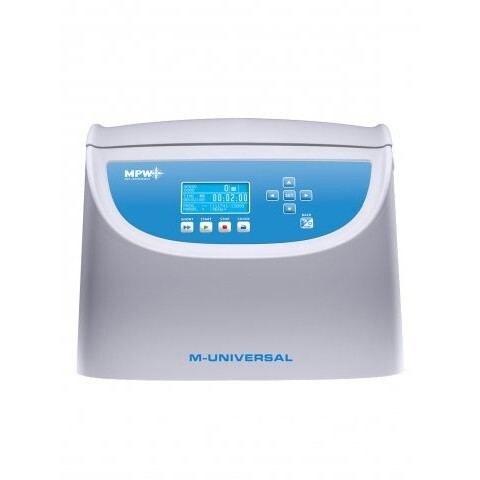

M-UNIVERSAL 원심분리기

켐코코리아(주) 2022. 9. 22. 12:30
  • 용량 [ml] : 500(24캡슐 75mm)
  • 최대 RPM [m-1] : 90 ≤ 18000
  • 최대 RCF [xg] : 24270

Centrifuge MPW M-UNIVERSAL - with its wide range of rotors and accessories this centrifuge enables proper preparation of the sample for both routine medical and veterinary tests, launch of various therapies including in regenerative medicine or using different systems to acquire PRP, as well as to perform other research including scientific, clinical research, research in cosmetology and many others.

Features:

  • modern design
  • low noise level
  • maintenance-free induction motor
  • modern software system
  • large graphic LCD - blanking the screen after a period of inactivity
  • 2 screen modes (simplified and normal)
  • 10 menu languages (PL, EN, ES, IT, PT, DE, RU, FR, SE, CZ)
  • visual and sound alerts of different notifications
  • 100 user programs
  • 10 acceleration/deceleration curves
  • speed or RCF adjustment
  • manual centrifugal radius adjustment (with automatic RCF correction)
  • time calculation from start key pressing or from reaching preselected speed
  • ascending or descenging time counting
  • continuous operation mode – HOLD
  • SHORT time operation mode
  • changing of parameters during centrifuging
  • automatic rotor identification
  • automatic lid opening
  • centrifuging parameters recording (USB port)
  • selected functions blocking, password protection
  • effective ventilation system
  •
  • stainless steel rotor chamber
  • unbalance sensor
  • lid locking during rotor running
  • start blocking at opened lid
  • emergency lid lock release
  • product conforming with the EN-61010-1 and EN-61010-2-020, EN-61010-2-101 standards



Power supply : 230V 50/60Hz; 120 50/60Hz
(100V, 110V, 127V 50/60Hz)
Power [W] : 220
Capacity [ml] : 500 (24 capillaries 75 mm)
Max. RPM [m-1] : 90 ÷ 18 000
Max. RCF [x g] : 24 270
Setting time : 1s ÷ 99h 59min 59s, ∞, step 1s
Dimensions H x W x D [mm] : 300 x 367 x 455
Height with open cover : 568
Weight [kg] : 22/23 *
Min. acceleration time [s] : 5
Min. braking time [s] : 9
  * weight of the centrifuge depends on the voltage version











M-UNIVERSAL 원심분리기

더 자세한 정보는 켐코코리아로 문의하세요~!

켐코코리아 주식회사

Tel. 043-215-2012

e-mail. ck@chemcokorea.com

Web. http://www.chemcokorea.com/

Blog. http://blog.chemcokorea.com/
