MPW-260RH 원심분리기 본문

실험실 기초장비/Centrifuge

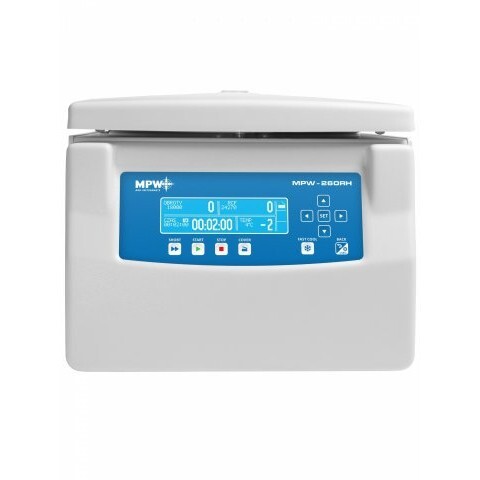

MPW-260RH 원심분리기

켐코코리아(주) 2022. 9. 22. 15:00
  • 용량 [ml] : 500 (24 모세혈관)
  • 최대 RPM [m-1] : 90 ≤ 18000
  • 최대 RCF [xg] : 24270
  • 온도 : -20°C + +55°C

The MPW 260RH centrifuge is a laboratory cooling and heating table centrifuge designed for general use. Together with the MPW-260 and MPW-260R, they form a family of centrifuges that, thanks to the ability to configure with a large number of available rotors, ensure versatility and precision in the spinning process. They are used in medical, biochemical, veterinary, industrial and other laboratories.

Features:

  • with cooling and heating
  • temperature + 4 ° C provided for maximum speed of each rotor
  • delayed start function
  • starts working at a certain temperature
  • initial cooling during centrifuging FAST COOL
  • maintenance-free induction motor
  • modern programming system
  • large graphical LCD display (MPW-260RH)
  • simultaneous indication of the preset and current values of speed, RCF, time, temperature
  • 99 user programs
  • 10 acceleration / deceleration characteristics
  • programming of multi-segment acceleration and deceleration characteristics
  • RPM / RCF regulation
  • two countdown modes: from pressing the start key or reaching the set speed
  • HOLD continuous mode
  • work in "SHORT" mode
  • possibility to change parameters during spin
  • rotor auto-identification
  • automatic opening of the lid
  • records spin parameters - MPW Editor - PC (USB)
  • change of menu language (PL, EN, ES, IT, PT, DE, RU, SE, FR, CZ)
  • block selected features, password access protection
  • programmable density setting for samples> 1.2g / cm3 (with automatic maximum speed correction)
  • stainless steel centrifuge chamber
  • wide range of rotors and additional equipment
  • signaling imbalance
  • locking lid during spin
  • lockout with open lid
  • emergency lid opening
  • product compliant with international safety standards EN-61010-1 and EN-61010-2-020, EN-61010-2-101



Power supply : 230V 50Hz; 100V, 110V, 120V, 127V 60 Hz
Power [W] : 800
Capacity [ml] : 500 (24 capillaries)
Max. RPM [m-1] : 90 ÷ 18 000
Max. RCF [x g] : 24 270
Setting time : 1s ÷ 99h 59min 59s + ∞, step 1s
Dimensions H x W x D [mm] : 315 x 365 x 660
Height with open cover : No data
Weight [kg] : 43,9/46,1 *
Min. acceleration time [s] : 7
Min. braking time [s] : 8
Temperature : -20°C ÷ +55°C
  * weight of the centrifuge depends on the voltage version











MPW-260RH  원심분리기

더 자세한 정보는 켐코코리아로 문의하세요~!

켐코코리아 주식회사

Tel. 043-215-2012

e-mail. ck@chemcokorea.com

Web. http://www.chemcokorea.com/

Blog. http://blog.chemcokorea.com/
