MPW-260 원심분리기 본문

실험실 기초장비/Centrifuge

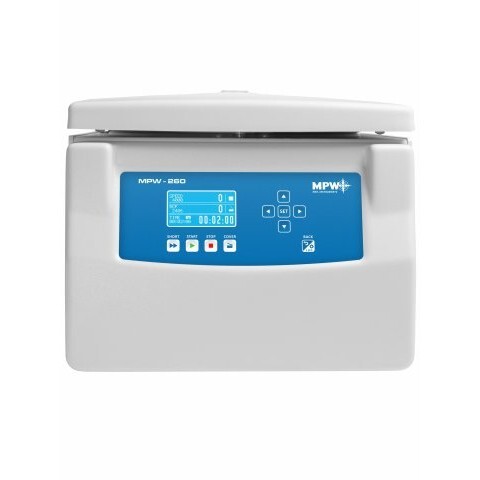

MPW-260 원심분리기

켐코코리아(주) 2022. 9. 22. 14:00
  • 용량 [ml] : 500 (24 캐피털)
  • 최대 RPM [m-1] : 90 = 18,000
  • 최대 RCF [x g] : 24 270

The MPW-260 centrifuge is a ventilated laboratory centrifuge designed for general use. Together with the MPW-260R and MPW-260RH, they form a centrifuge family, which, thanks to the ability to configure with a large number of available rotors, ensures the versatility of the applications and precision of the spinning process. They are used in medical, biochemical, veterinary, industrial and other laboratories. The MPW-260 is used, among other, for urinalysis, blood preparations, sludge dewatering, DNA, RNA and many others.

Features:

  • with ventilated
  • delayed start function
  • effective ventilation system
  • maintenance-free induction motor
  • modern programming system
  • large graphical LCD display (MPW-260RH)
  • simultaneous display of the preset and current speed values, RCF
  • 99 user programs
  • 10 acceleration / deceleration characteristics
  • programming of multi-segment acceleration and deceleration characteristics
  • RPM / RCF regulation
  • two time counting modes: from pressing the start key or reaching the preset speed
  • HOLD continuous mode
  • work in "SHORT" mode
  • possibility to change parameters during spin
  • rotor auto - identification
  • automatic opening of the lid
  • records spin parameters - MPW Editor - PC (USB)
  • change menu language (PL, EN, ES, IT, PT, DE, RU, SE, FR, CZ)
  • blocking selected features, password protection
  • programmable density setting for samples> 1.2g / cm3 (with automatic maximum speed correction)
  • stainless steel centrifuge chamber
  • wide range of rotors and additional equipment
  • signaling imbalance
  • locking lid during spin
  • lockout with open lid
  • emergency lid opening
  • product compliant with international safety standards EN-61010-1 and EN-61010-2-020, EN-61010-2-101



Power supply : 230V, 100V, 110V, 120V, 127V 50/60Hz
Power [W] : 250
Capacity [ml] : 500 (24 capillaries)
Max. RPM [m-1] : 90 ÷ 18 000
Max. RCF [x g] : 24 270
Setting time : 1s ÷ 99h 59min 59s + ∞, step 1s
Dimensions H x W x D [mm] : 315 x 365 x 495
Height with open cover : No data
Weight [kg] : 22,5/24,6 *
Min. acceleration time [s] : 7
Min. braking time [s] : 8
  * weight of the centrifuge depends on the voltage version
