Infrared Heater IRB 6 본문
Description

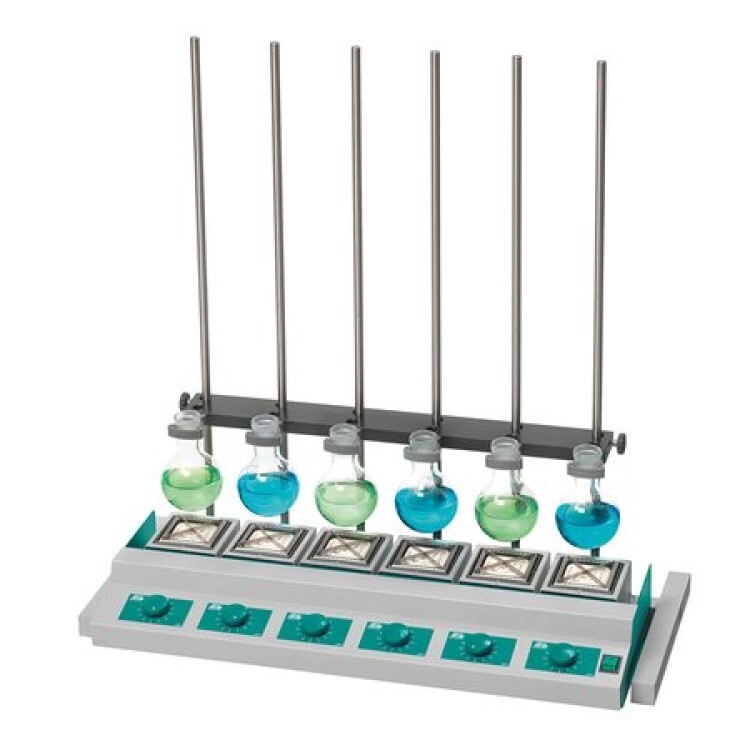

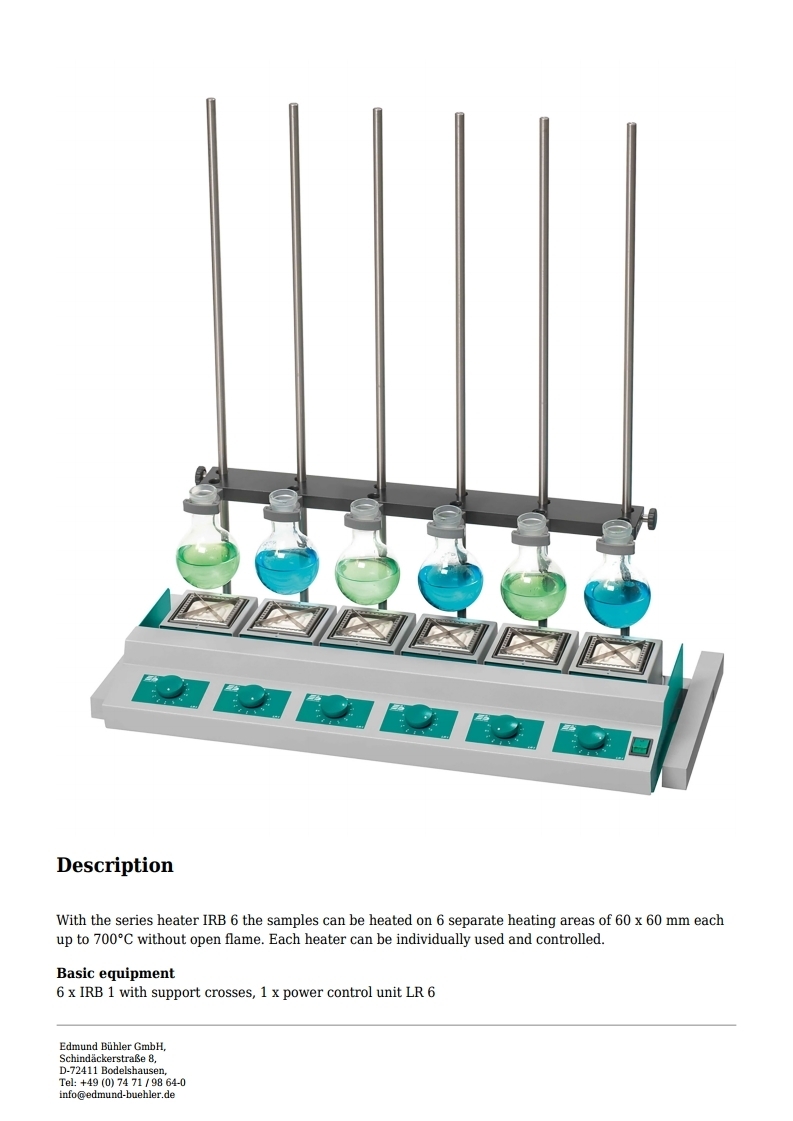

With the series heater IRB 6 the samples can be heated on 6 separate heating areas of 60 x 60 mm each up to 700°C without open flame. Each heater can be individually used and controlled.
Basic equipment
6 x IRB 1 with support crosses, 1 x power control unit LR 6
Details
| Max. temperature: | each 700°C |
| Heating power: | 6 x 200 W |
| Heating area: | 6 x 60 x 60 mm |
| Power control: | 6 stepless controls between 0 - 100 % |
| Max. ambient temperature: | 30°C |
| Order no.: | 9066 000 |
| Accessory: | Support base Horizontal PVC rods for support base Clamps D50 (NS 45) Clamps D32 (NS 29) Clamps D20 (NS 19) Clamps D25 (NS 15) |
Technical specifications
| Electrical supply: | 230 V, 50 / 60 Hz (115 V version on request) |
| Heating power: | max. 1200 W |
| Dimensions (w x d x h): | 697 x 305 x 122 mm |
| Weight: | 9 kg |
Infrared Heater IRB 6
더 자세한 정보는 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
