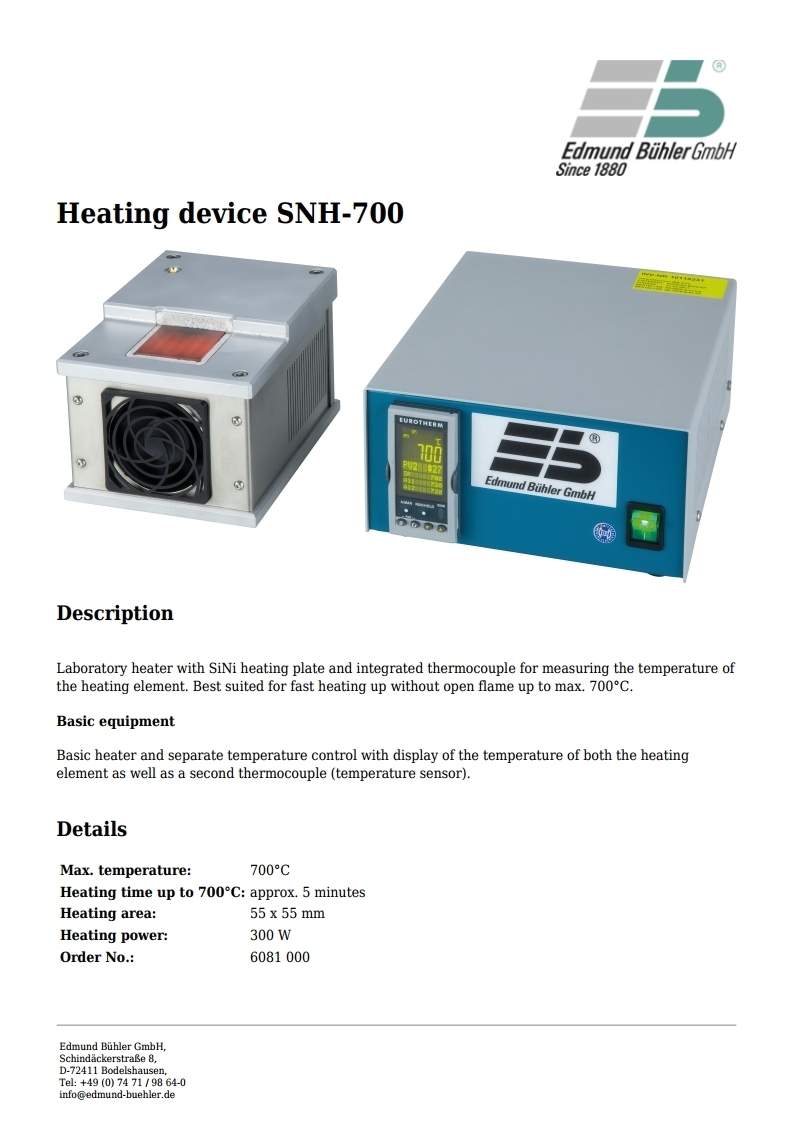

Heating device SNH-700 본문
Description

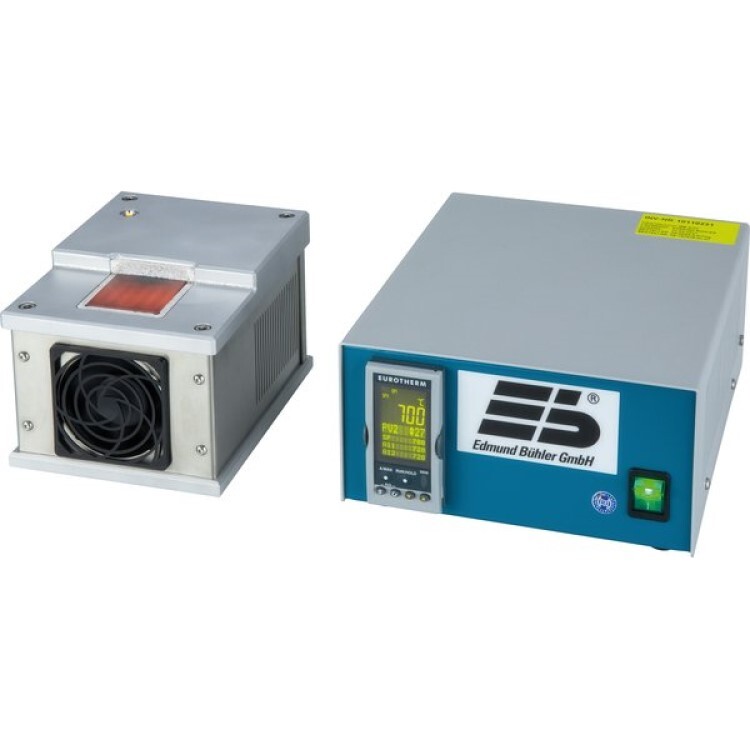

Laboratory heater with SiNi heating plate and integrated thermocouple for measuring the temperature of the heating element. Best suited for fast heating up without open flame up to max. 700°C.
Basic equipment
Basic heater and separate temperature control with display of the temperature of both the heating element as well as a second thermocouple (temperature sensor).
Details
| Max. temperature: | 700°C |
| Heating time up to 700°C: | approx. 5 minutes |
| Heating area: | 55 x 55 mm |
| Heating power: | 300 W |
| Order No.: | 6081 000 |
Technical specifications
| Electrical supply: | 230 V, 50 / 60 Hz |
| Enclosure protection: | IP 21 |
| Ambient temperature: | 5°C - 30°C |
| Relative humidity: | ~ 86% |
| Dimensions SNH-700 (w x d x h): | 190 x 150 x 130 mm |
| Dimensions control device (w x d x h): | 230 x 320 x 125 mm |
| Weight SNH-700: | 3,7 kg |
| Weight control device: | 4,7 kg |
Heating device SNH-700
더 자세한 정보는 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
