Miniature Shaker KM CO2-FL 미니어처 쉐이커 본문

실험실 기초장비/Shaker

Miniature Shaker KM CO2-FL 미니어처 쉐이커

켐코코리아(주) 2022. 10. 6. 10:21

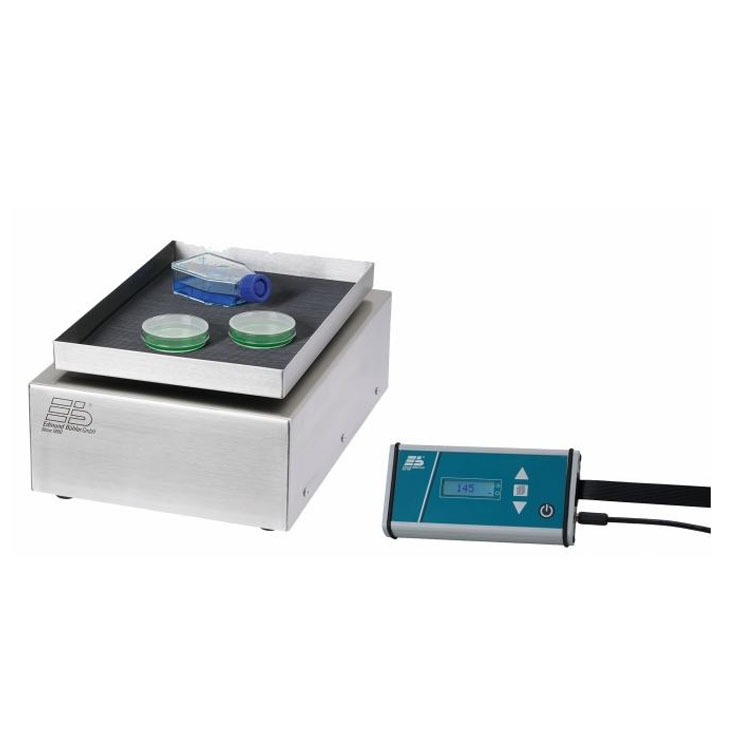

미니어처 쉐이커 KM CO2-FL



  • Motion : Orbital
  • Shaking platform : 200 x 295mm
  • Max Load : 2 kg
  • Shaking Speed : 5 ~ 220 rpm
  • Stroke : 20mm
  • C02 concentration : 20%
  • Relative humidity : 20~95%





The shaker KM CO2 made of stainless steel was especially designed for use in incubators with up to 20% CO2 concentration and up to 95% humidity. This guarantees the optimum development of your cell cultures.

Because of the ribbon cable a feedthrough is not required in the incubator.

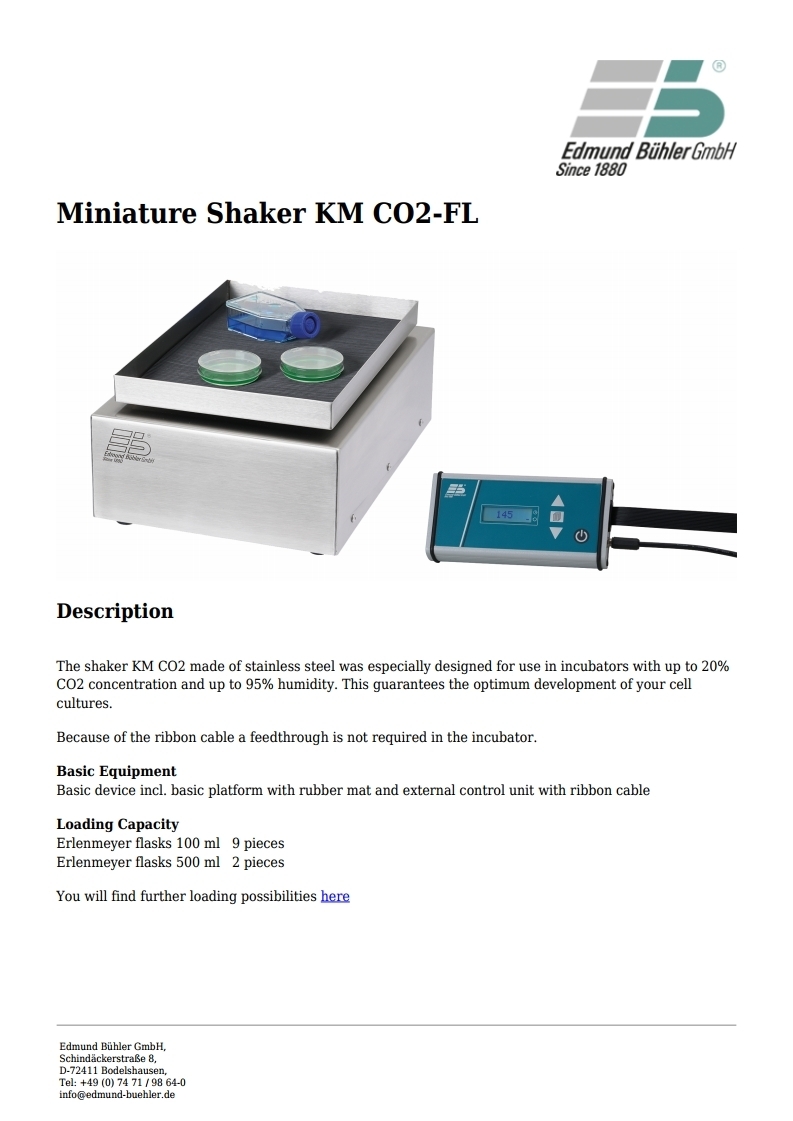

Description



The shaker KM CO2 made of stainless steel was especially designed for use in incubators with up to 20% CO2 concentration and up to 95% humidity. This guarantees the optimum development of your cell cultures.

Because of the ribbon cable a feedthrough is not required in the incubator.



Basic Equipment
Basic device incl. basic platform with rubber mat and external control unit with ribbon cable



Loading Capacity
Erlenmeyer flasks 100 ml 9 pieces
Erlenmeyer flasks 500 ml   2 pieces

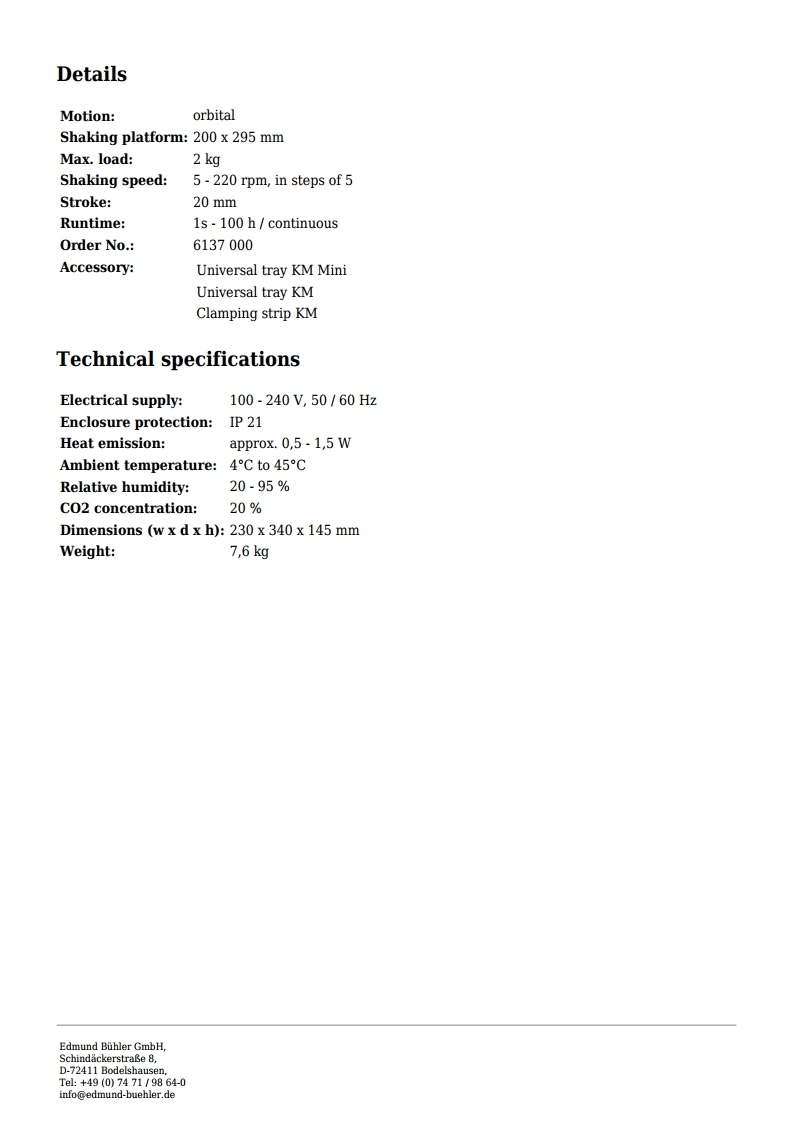

Details

Motion: orbital
Shaking platform: 200 x 295 mm
Max. load: 2 kg
Shaking speed: 5 - 220 rpm, in steps of 5
Stroke: 20 mm
Runtime: 1s - 100 h / continuous
Order No.: 6137 000
Accessory: Universal tray KM Mini
Universal tray KM
Clamping strip KM





Technical specifications

Electrical supply: 100 - 240 V, 50 / 60 Hz
Enclosure protection: IP 21
Heat emission: approx. 0,5 - 1,5 W
Ambient temperature: 4°C to 45°C
Relative humidity: 20 - 95 %
CO2 concentration: 20 %
Dimensions (w x d x h): 230 x 340 x 145 mm
Weight: 7,6 kg











Miniature Shaker KM CO2-FL 미니어처 쉐이커

더 자세한 정보는 켐코코리아로 문의하세요~!

켐코코리아 주식회사

Tel. 043-215-2012

e-mail. ck@chemcokorea.com

Web. http://www.chemcokorea.com/

Blog. http://blog.chemcokorea.com/
