NITRO-GEN
Nitrogen Generator
#NA1955
DESCRIPTION
The NITRO-GEN generator was developed with Organomation’s nitrogen evaporators in mind to provide nitrogen generation for sample concentration. The generator is lightweight and easy to set up, requiring only a source of compressed air to run. This unit is an ideal choice for labs with an in-house compressed air source.
The generator uses a hollow-fiber membrane to convert compressed air to a stream of 95-99% pure nitrogen gas. The hollow-fiber membrane consists of a series of narrow, semipermeable tubes in a porous membrane. As compressed air travels through the fibers, oxygen and water vapor permeate the membrane and are vented off, leaving a steam of high purity nitrogen gas. At up to 99% purity, the resulting nitrogen gas stream can be used in a variety of sample preparation applications.

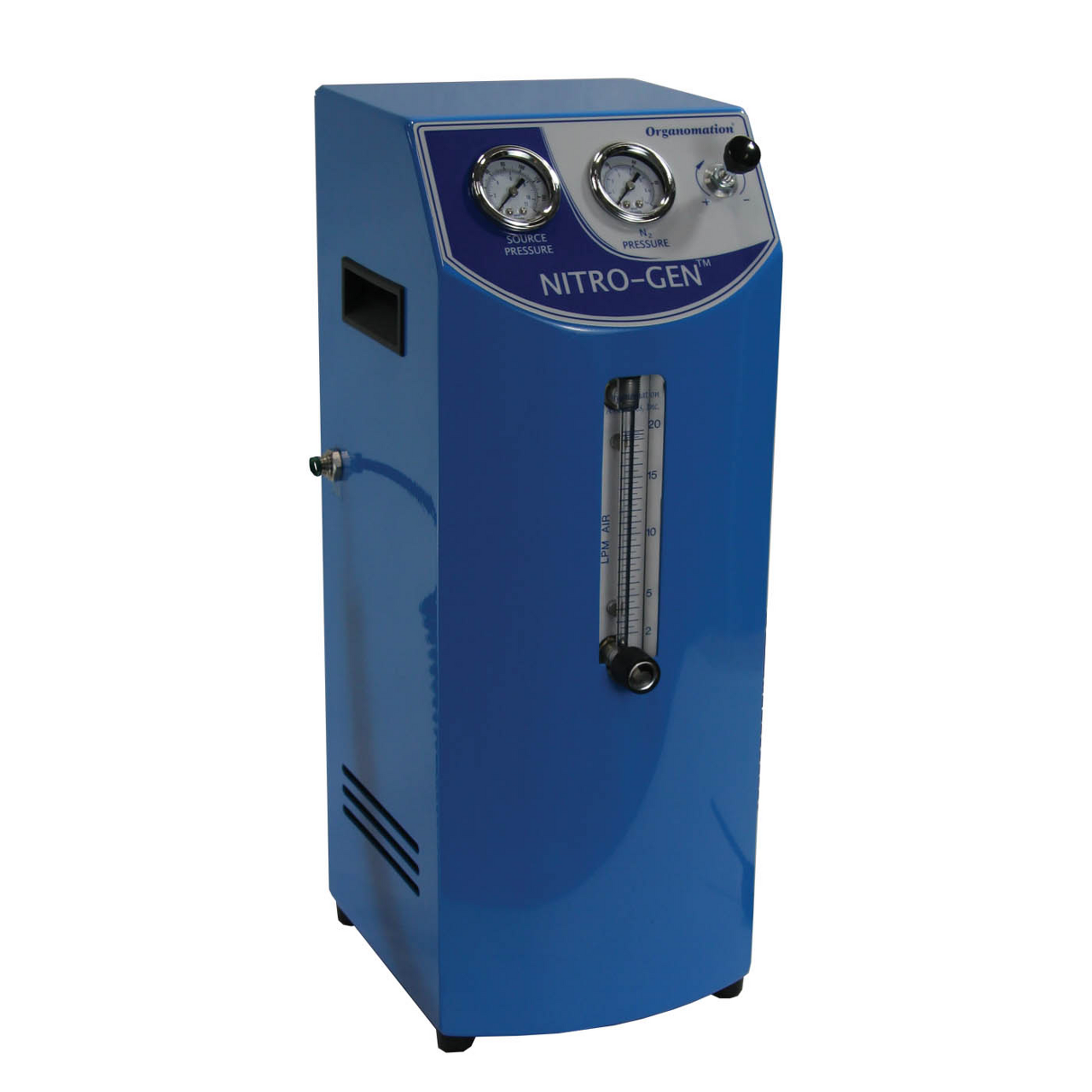

NITRO-GEN
The NITRO-GEN produces up to 20 L/min of nitrogen gas and is recommended for evaporation of up to 48 sample positions. Download the brochure here.
Compact and Lightweight
Small footprint conserves valuable lab space
Simple Setup
Easy to pair with any Organomation blowdown evaporator; no additional tubing or connectors required
Economical
Provides nitrogen gas at a fraction of the cost of nitrogen cylinders and competing generators
No Electricity Required
Generator runs off of pressure provided by the compressed air source
STANDARD FEATURES
- Adjustable outlet pressure regulator, 0-100 psi
- Dual Stage clean air filtration system
- Requires an oil-less compressed air source
SPECS
| Instrument Name | NITRO-GEN |
| Instrument Catalog Number | NA1955 |
| Flow Rate | Up to 20 L/min |
| Technology | Hollow-Fiber Membrane |
| Output Pressure | Adjustable 0 - 100 psi |
| Electrical Requirements | None |
| Total Wattage | N/A |
| Noise Level | Negligible (< 40 dBA when connected to an instrument) |
| Overall Dimensions (w x d x h) | 9.5 x 8 x 19.5 in 241 x 203 x 495 cm |
| Weight | 13.25 lbs. 6 kg |
| Warranty Term | 1 Year |
| Inlet Air Conditions | |
| Max Inlet Pressure | 150 psi 10.3 bar |
| Particulates | ≤ 0.01 µm |
| Max Oil Vapor Content | < 0.01 mg/m3 < 0.01 ppm (w) |
| Relative Humidity | < 100% (non-condensing) |
| Heating Device Specs | |
| Temperature | 36-122 °F 2-50 °C |
| Ambient Pressure | Atmospheric |
| Air Quality | Clean air without contaminants |
RESOURCES

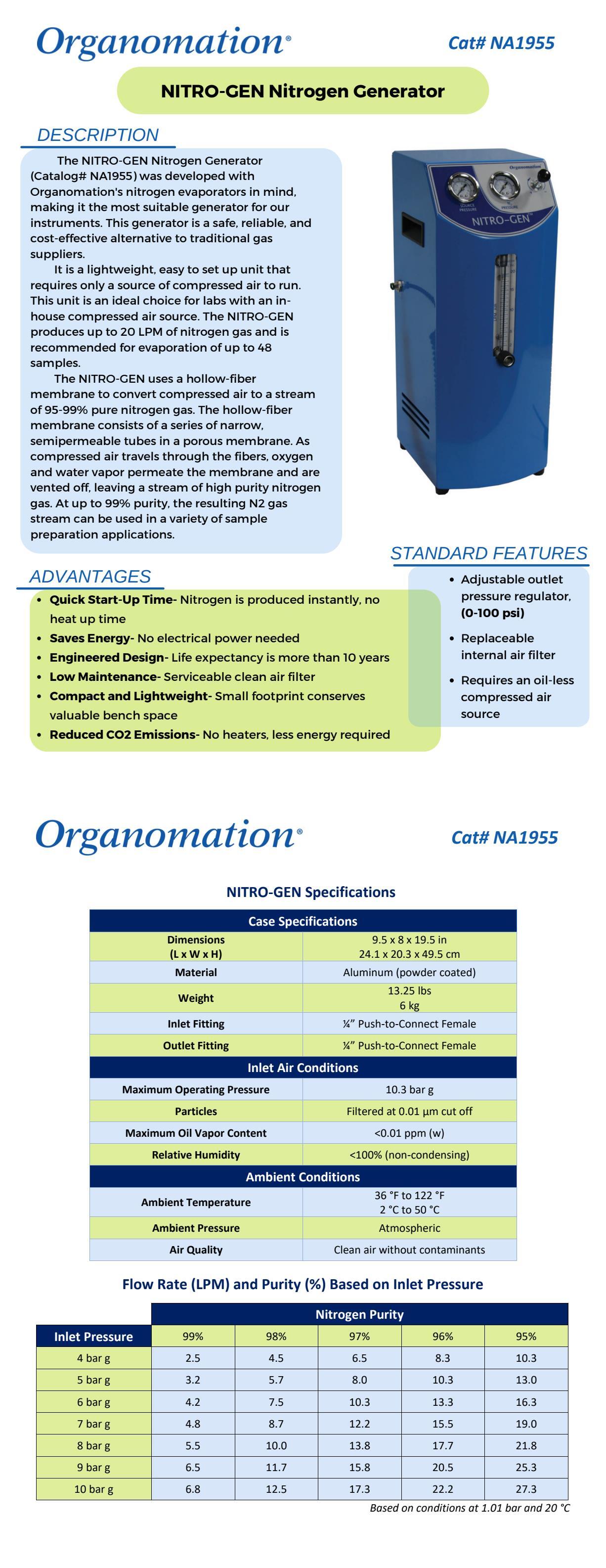

- NITRO-GEN Product Brochure and Specifications
- NITRO-GEN Quick Start Manual
- Compressor Specifications
