새로운 NITRO-GEN+ (Nitrogen Generator) NEW!! 본문
새로운 NITRO-GEN+ Nitrogen Generator에 대한 데모 동영상을 공개합니다.
이 동영상에서 Nitrogen Generator의 주요 기능, 사용하는 기술 및 작동 방식을 자세히 살펴볼까요?

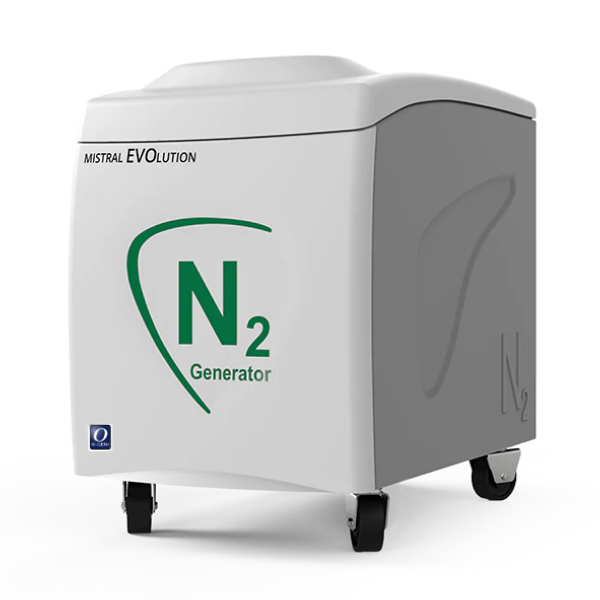

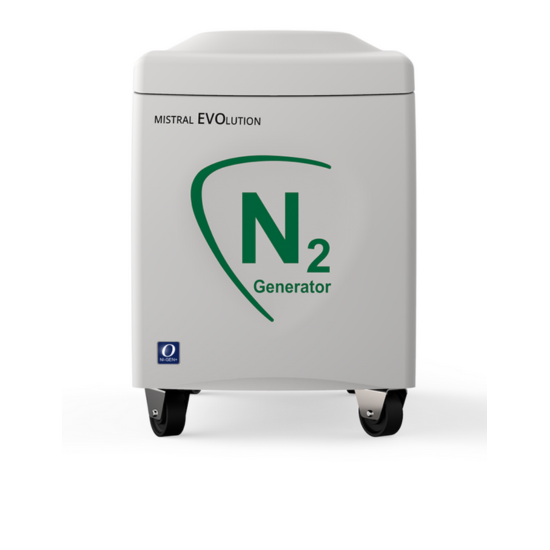

NITRO-GEN+
Nitrogen Generator
#NA1935
DESCRIPTION
The NITRO-GEN+ Nitrogen Generator is designed to satisfy the needs of the LC-MS and sample preparation fields. The NITRO-GEN+ is compatible with all Organomation nitrogen evaporators up to 100 sample positions, along with most LC-MS analyzers on the market. It relies on Pressure Swing Adsorption (PSA) technology to separate nitrogen from the air. The unit uses molecular sieves to remove oxygen, water, and trace hydrocarbons, leaving a stream of high purity nitrogen gas. Nitrogen is produced by utilizing a combination of this Carbon Molecular Sieve technology along with high and low pressure compressors.
This unique technology allows the nitrogen to be produced at a low pressure and an ambient temperature, eliminating the need for high pressure cylinders which can be dangerous for the technicians handling them. The low pressure also ensures a longer compressor life, which reduces the time and money spent on regular maintenance. The generator's simple installation and operation combined with its superior reliability makes the NITRO-GEN+ a staple in any laboratory.
Convenient
Integrated air compressors eliminate the stress of sourcing an appropriate compressor to run your generator
Safe
Nitrogen produced at low pressure and ambient temperature removes hazards associated with high pressure cylinders
Quiet
Noise level when generator is running is 55 dBA at 1 meter
Efficient
The constant, uninterrupted gas supply eliminates delays in analysis when changing out gas cylinders
STANDARD FEATURES
- Integrated low noise, oil free compressors
- On-demand supply 24/7
- Proprietary carbon molecular sieve technology
- Complete "plug and play" LC-MS solution
- Two-year complete product warranty or 8,000 hour run-time warranty
COMPATIBLE FEATURES
- All Organomation evaporators up to 100 sample positions
- Most LC-MS analyzers on the market
The NITRO-GEN+ is brought to you in partnership with VICI DBS.
SPECS
| Instrument Name | NITRO-GEN+ |
| Instrument Catalog Number | NA1935 |
| Flow Rate | Up to 35 L/min |
| Nitrogen Purity | Up to 97% purity |
| Dewpoint | -58 °F -50 °C |
| Technology | Carbon molecular sieve (CMS) |
| Warm Up Time | 20 minutes |
| Output Pressure | 0 - 116 psi 0 - 8 bar |
| Electrical Requirements | 110-120 V, 60 Hz / 220-240 V, 50 Hz |
| Total Wattage | 1800 W |
| Index of Protection | IP20 |
| Mechanical Impact Rating | IK08 |
| Noise Level | 55 dBA at 1 meter |
| Overall Dimensions (w x d x h) | 18.9 x 33 x 25 in 48 x 83.8 x 63.5 cm |
| Weight | 198 lbs. 90 kg |
| Outlet Connection | 6 mm OD compression or 1/4" |
| Certification | CE, FCC, MET (UL and CSA compliant) |
| Warranty Term | 2 years or 8,000 hour run-time |
| Environmental Operating Conditions | |
| Operating Temperature | 59-95 °F 15-35 °C |
| Relative Humidity | 0-80% rF with no condenser 0-99% rF with condense drain |
| Altitude | <2,000 m (from 800 to 1,150 hPa) |
RESOURCES

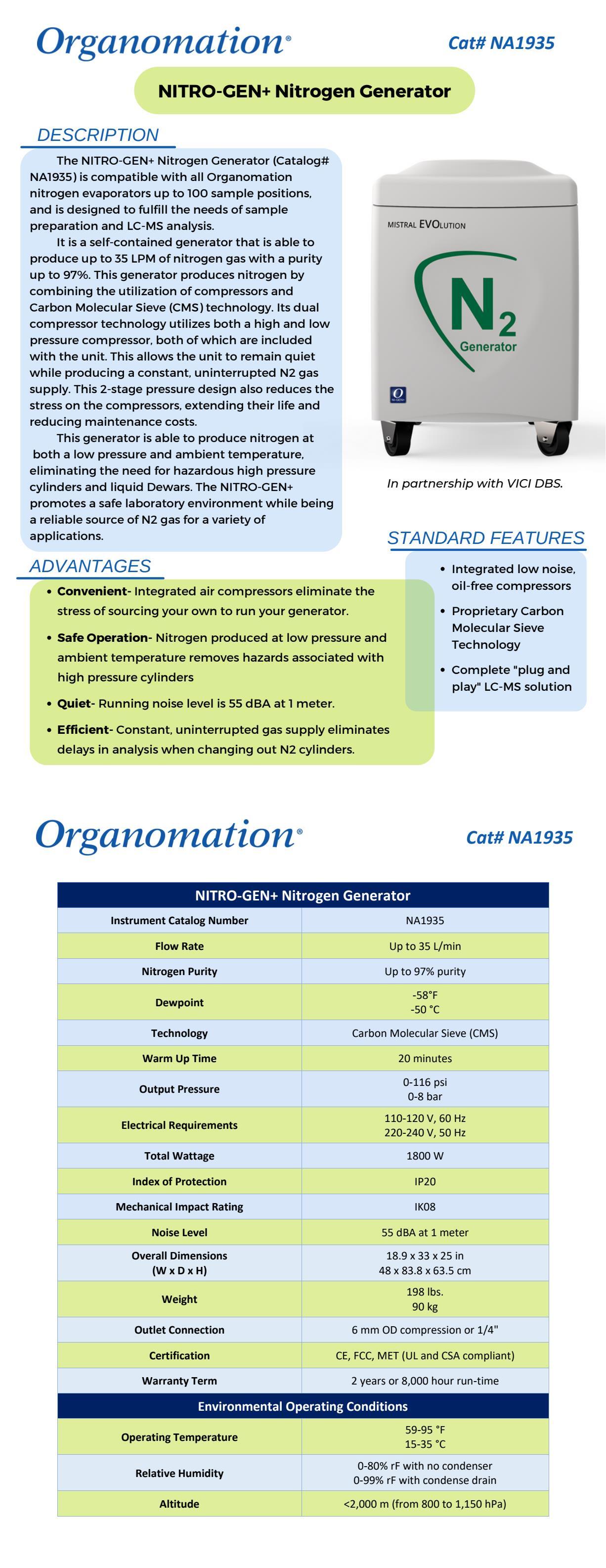

NITRO-GEN+ Nitrogen Generator
더 자세한 정보는 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
