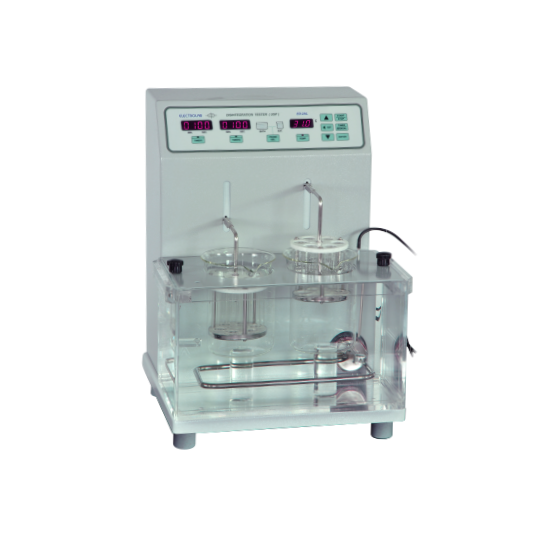

2station Disintegration Tester (ED-2AL) 2구 붕해도시험기

2구 붕해도시험기

• Complies with USP, IP and Ph. Eur. specification
• Supports 2 USP baskets
• 30 ±0.5 stroke/minute
• 55mm ±2mm Stroke height

• Complies with USP, IP and Ph. Eur. specifications
• Supports 2 USP baskets
• Each basket is controlled by independent timer and motor
• Snap-Click™  loading and a swivel free basket movement
• Green illumination for better visibility of disintegration process
• Programmable temperature controller
• Auto parking of the baskets at the top position at the end of the test
• Ergonomically designed splash proof panel
• External probe for beaker temperature validation
• Dual range timer
• Maintenance-free smooth drive



SPECIFICATION
No. of stroke	30 ± 0.5 stroke/minute
Stroke height	55 mm ± 2 mm
Motor	DC stepper motor of 6 V DC and 3.5 kg cm torque
No. of baskets	2 nos. (Each having 6 test tubes)
Water bath	6 mm thick transparent acrylic
Heater	400 W, S.S. 304
Temperature range	20 ºC ~ 39.9 ºC
Temperature resolution	0.1 ºC
Temperature control accuracy	± 0.2 ºC
Timer	Range 1: 1 sec ~ 59 min 59 sec
	Range 2: 1 min ~ 9 hrs 59 min
Timer resolution	Range 1: 1 sec
	Range 2: 1 min
Power supply	220/230 V AC, 50/60 Hz, 490 VA
Dimensions (L x W x H)	(350 x 390 x 510) mm (approx.)
Weight	Net 23 kg and Gross 32 kg
