CondenSyn MINI - 냉각수가 필요없는 친환경 냉각관 본문
냉각수가 필요없는 친환경 냉각관 MINI
- 5, 10, 25 ml flask 사용 가능
- 200mm 작은 Size
- 다양한 joint 규격 가능

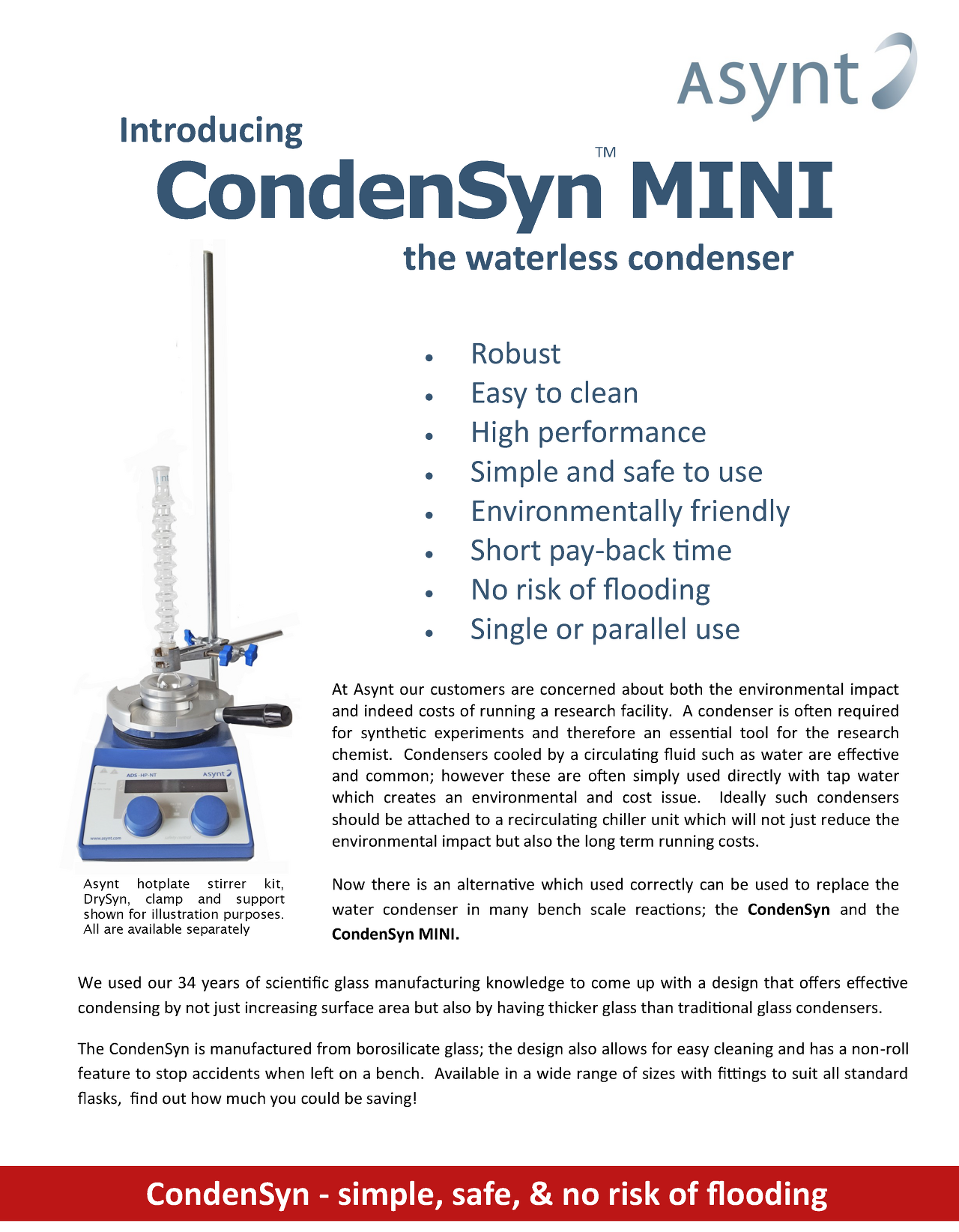

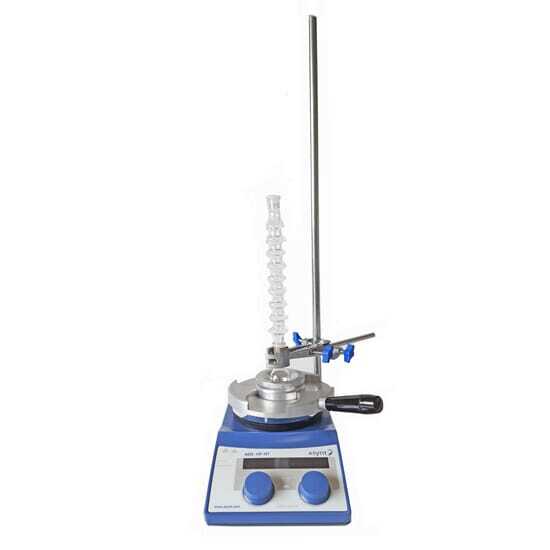

The Asynt CondenSyn MINI waterless air condenser shown connects via a standard neck to a round bottom flask.
Just 20 cm long and fitted with a B14 adapter – the Condensyn MINI provides comparable vapour condensing performance to a Liebig water condenser but advantageously requires no cooling water for operation. While condensers cooled by a circulating water are effective, their constant need for running tap water creates environmental and cost issues.

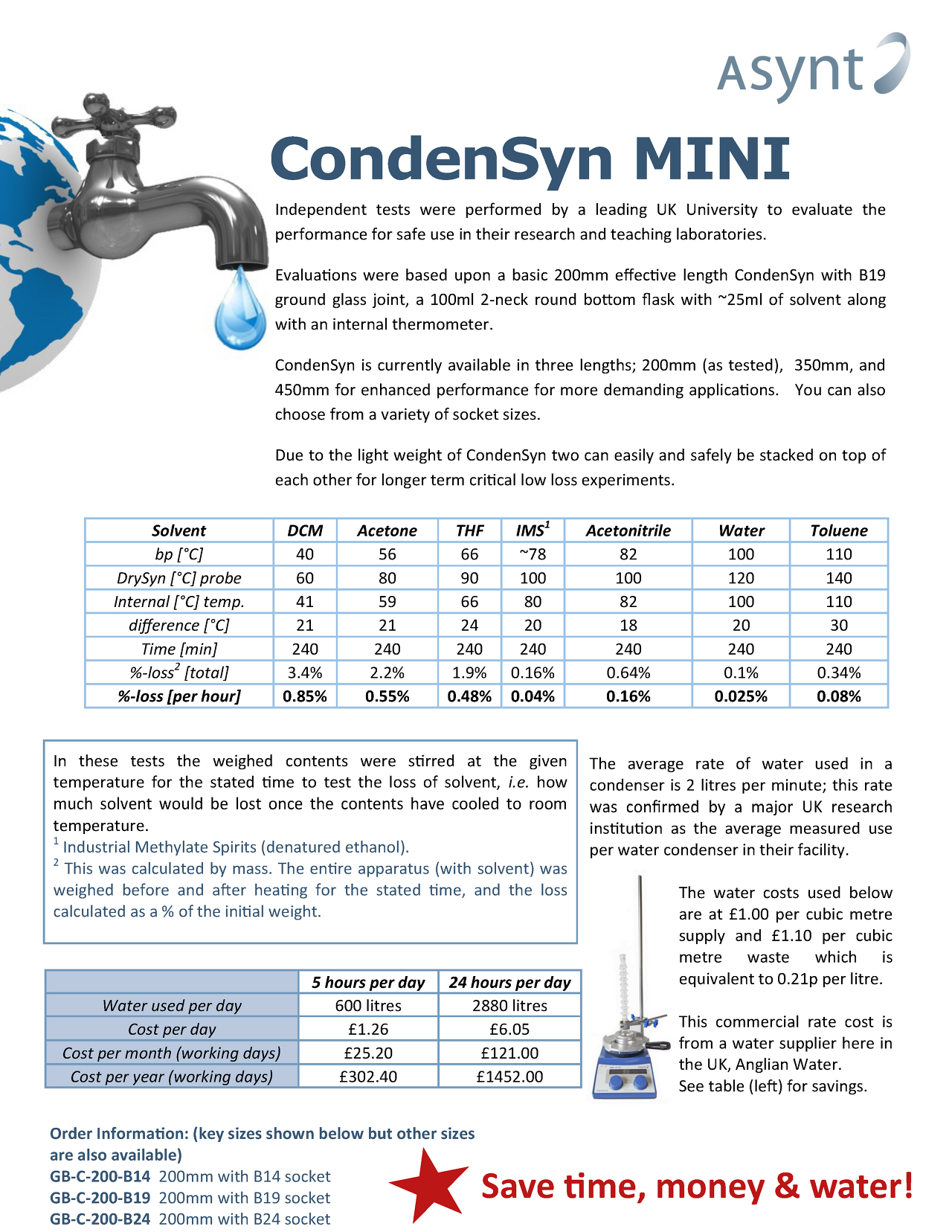

Independent tests were performed by a leading UK University to evaluate the performance for safe use in their research and teaching laboratories. Evaluations were based upon a basic 200 mm effective length CondenSyn with B19 ground glass joint, a 100ml 2-neck round bottom flask with ~25 mL of solvent along with an internal thermometer.

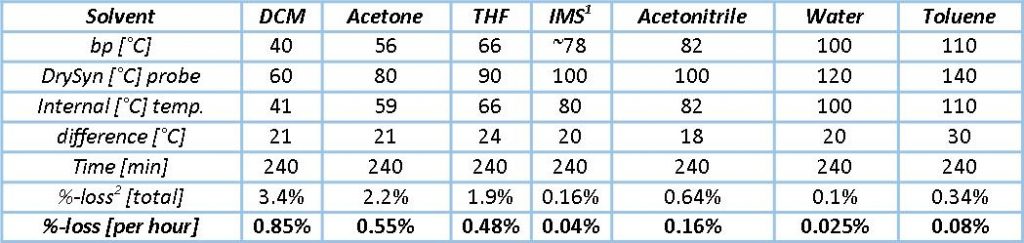

In these tests the weighed contents were stirred at the given temperature for the stated time to test the loss of solvent, i.e. how much solvent would be lost once the contents have cooled to room temperature.
In a teaching environment the temperature of the heating element is often set higher by students than necessary to ensure a fast heating and vigorous, i.e. clearly visible, boiling of the solvent / reaction mixture. Thus, the temperatures were set to higher values than recommended in research labs for e.g. stills.
*The higher loss of water measured is due to its high surface tension that resulted in droplets of water sticking to the inside of the entire length of the condenser, rather than all running back to the RBF as was observed for all other solvents. **It is recommended that to prevent breakthrough when using solvents below 60 oC boiling point that a temperature differential is kept below 10 oC. With Diethyl Ether then this should be no more than 4 oC.
1 Industrial Methylate Spirits (denatured ethanol).
2 This was calculated by mass. The entire apparatus (with solvent) was weighed before and after heating for the stated time, and the loss calculated as a % of the initial weight.
Saving money and water:
The average rate of water used in a condenser is 2 litres per minute; this rate was confirmed by a major UK research institution as the average measured use per water condenser in their facility. The water costs used below are at £1.22 per cubic metre supply and £1.56 per cubic metre waste which is equivalent to 0.28p per litre. This commercial rate cost is from a water supplier here in the UK, Anglian Water in March 2020.
Every CondenSyn is individually handmade in the UK.
Order information:
GB-C-200-B14 is 200 mm with B14 socket
GB-C-200-B19 is 200 mm with B19 socket
GB-C-200-B24 is 200 mm with B24 socket
USA fittings also available as well as additional socket sizes – please contact us for more information.
Please contact us for pricing. CondenSyn is considerably less costly than other alternative systems, but don’t let that put you off!
CondenSyn MINI - 냉각수가 필요없는 친환경 냉각관
더 자세한 설명이 필요하다면 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
