Tube Roller RM 2 튜브 롤러

켐코코리아(주) 2022. 10. 6. 17:00

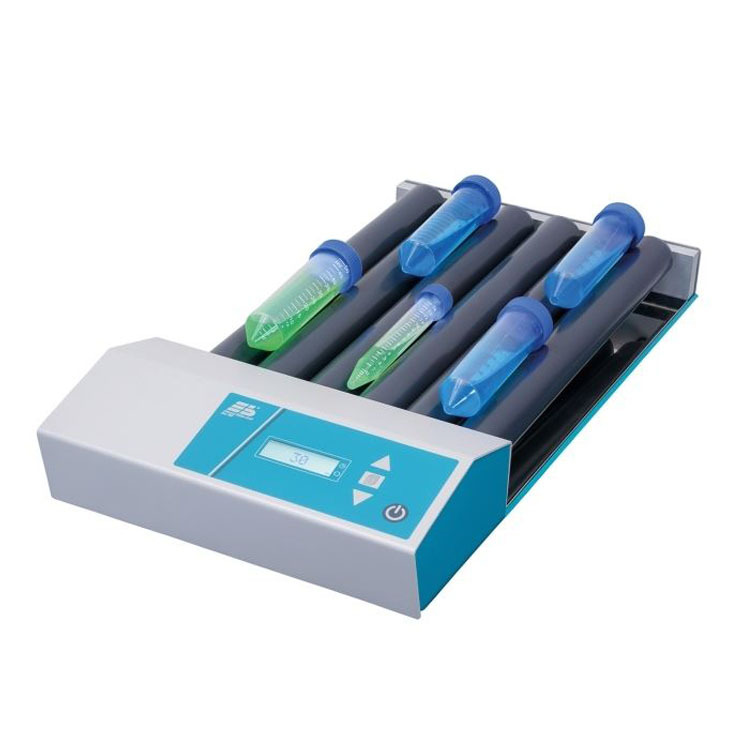

튜브 롤러 RM2



  • Motion : Rotating and tilting motion
  • Shaking platform : 200 x 30mm
  • Max Load : 2 kg
  • Shaking Speed : 5 ~ 80 rpm
  • Stroke : 15mm
  • Angle of tilt : 3′ fixed
  • Relative humidity : ~85% (non-dondensing)

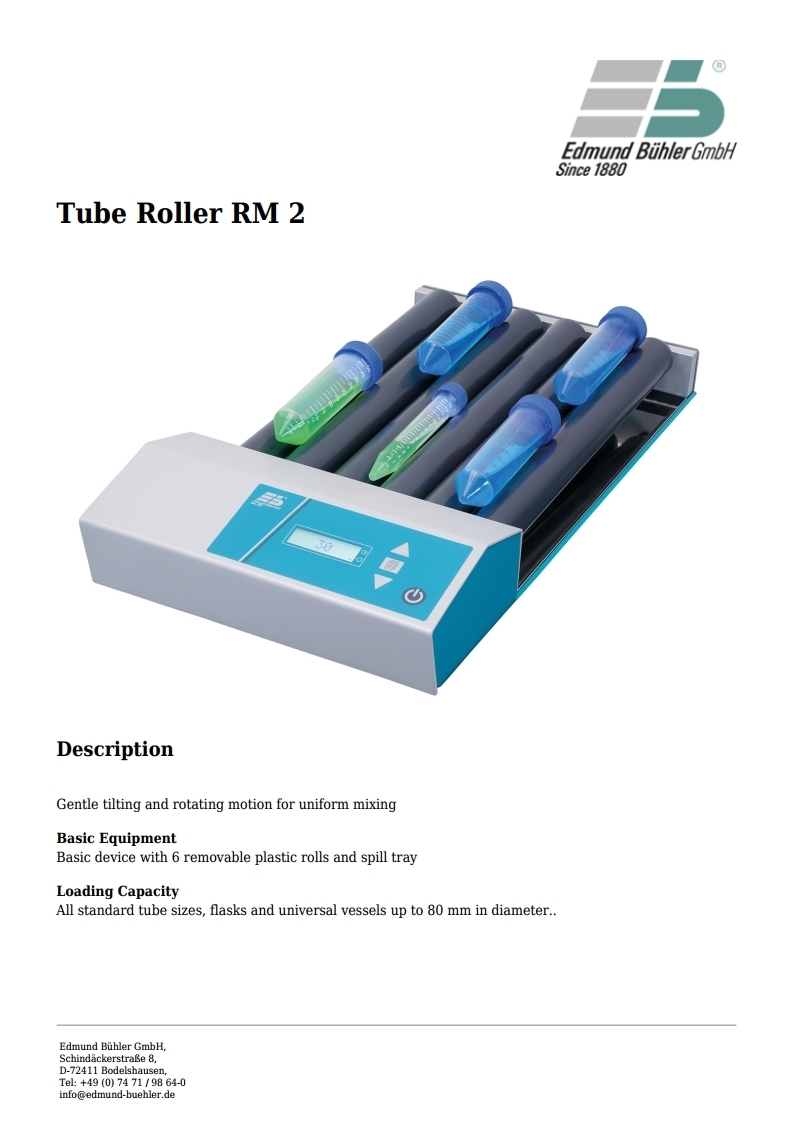

Description



Gentle tilting and rotating motion for uniform mixing



Basic Equipment
Basic device with 6 removable plastic rolls and spill tray



Loading Capacity
All standard tube sizes, flasks and universal vessels up to 80 mm in diameter.

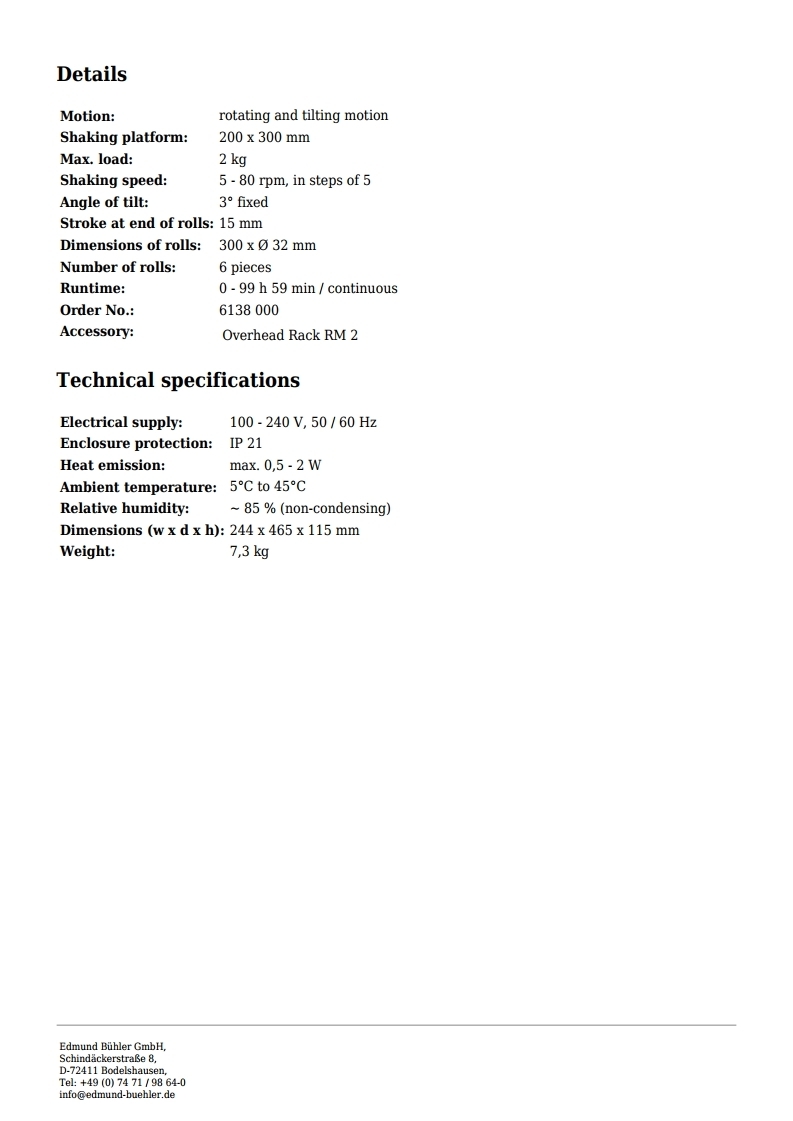

Details

Motion: rotating and tilting motion
Shaking platform: 200 x 300 mm
Max. load: 2 kg
Shaking speed: 5 - 80 rpm, in steps of 5
Angle of tilt: 3° fixed
Stroke at end of rolls: 15 mm
Dimensions of rolls: 300 x Ø 32 mm
Number of rolls: 6 pieces
Runtime: 0 - 99 h 59 min / continuous
Order No.: 6138 000
Accessory: Overhead Rack RM 2





Technical specifications

Electrical supply: 100 - 240 V, 50 / 60 Hz
Enclosure protection: IP 21
Heat emission: max. 0,5 - 2 W
Ambient temperature: 5°C to 45°C
Relative humidity: ~ 85 % (non-condensing)
Dimensions (w x d x h): 244 x 465 x 115 mm
Weight: 7,3 kg
