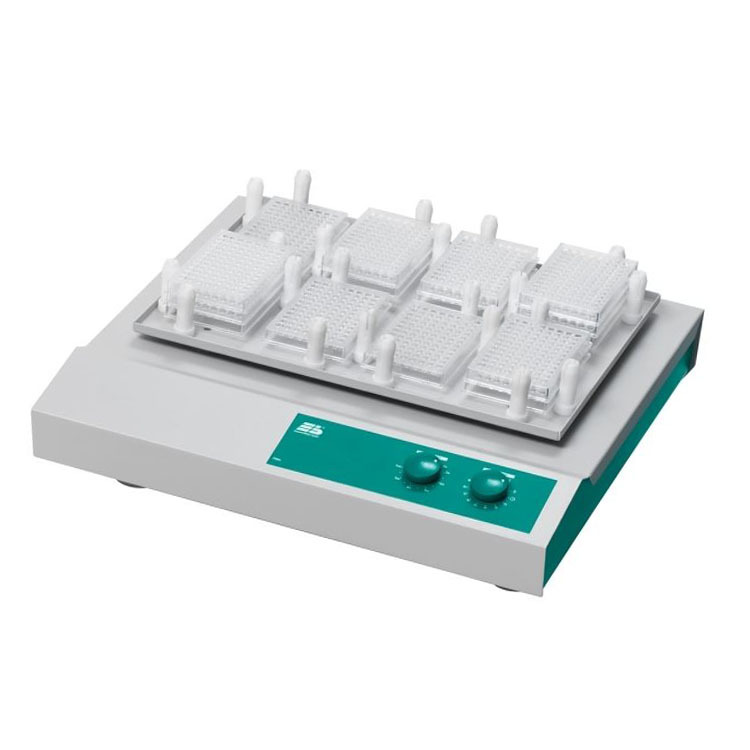

Microplate Shaker TiMix 5 마이크로플레이트 쉐이커 본문
마이크로플레이트 쉐이커 TiMix5
- Motion : exact orbital motion
- Shaking platform : 400 x 300mm for 8 microplates
- Max Load : 5 kg
- Shaking Speed : 5 ~ 1400 rpm
- Stroke : 3mm
- Relative humidity : ~85%

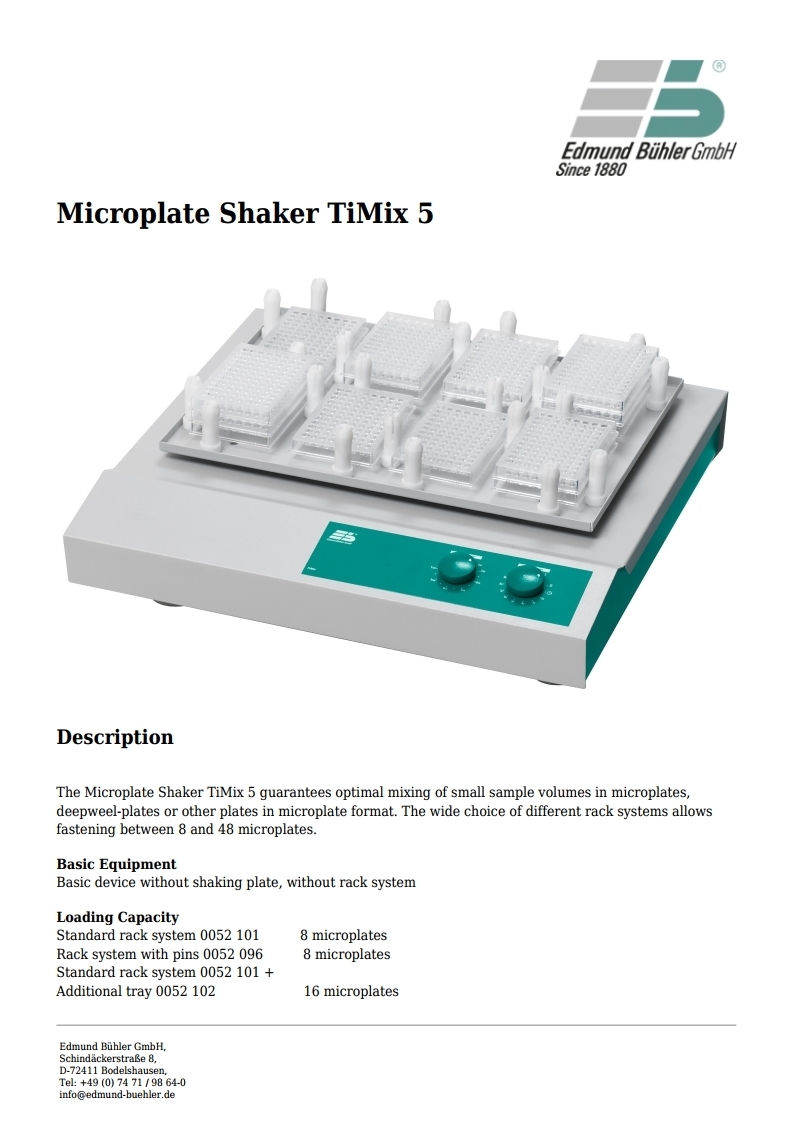

Description
The Microplate Shaker TiMix 5 guarantees optimal mixing of small sample volumes in microplates, deepweel-plates or other plates in microplate format. The wide choice of different rack systems allows fastening between 8 and 48 microplates.
Basic Equipment
Basic device without shaking plate, without rack system
Loading Capacity
Standard rack system 0052 101 8 microplates
Rack system with pins 0052 096 8 microplates
Standard rack system 0052 101 +
Additional tray 0052 102 16 microplates
RS high clamping pins 0052 104 24 microplates
RS metal clamping pins 0052 125 48 microplates

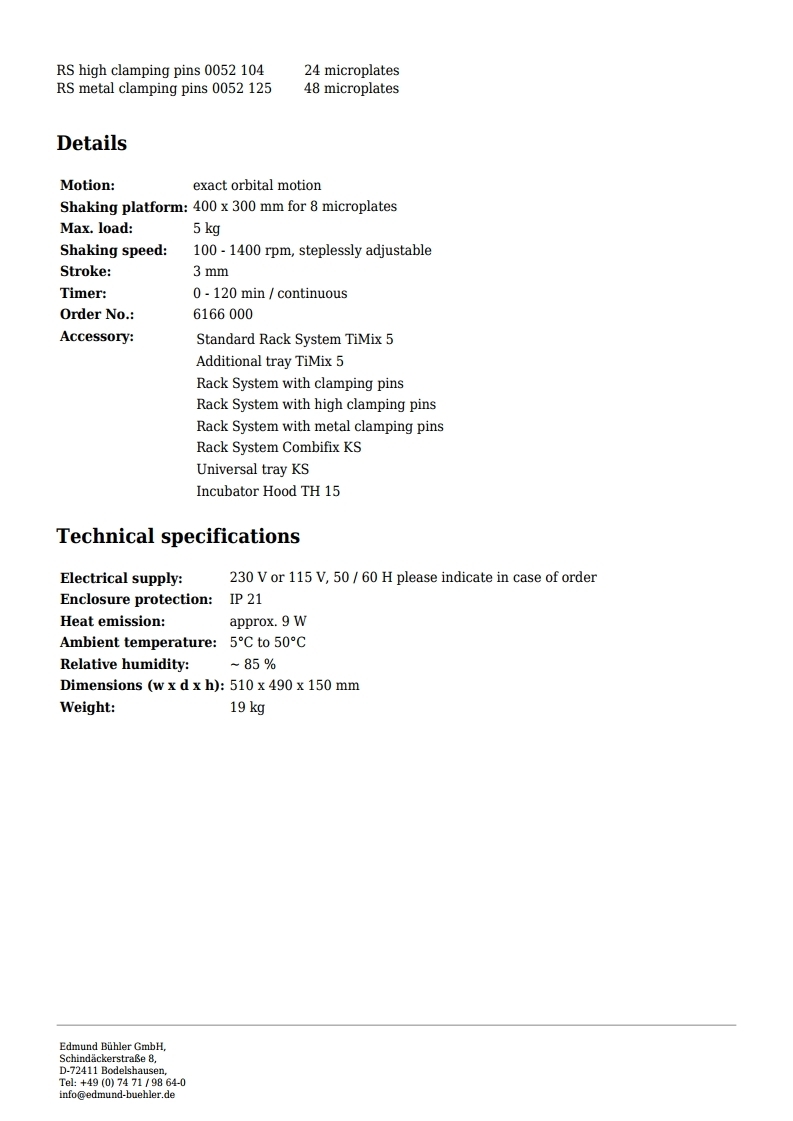

Details
| Motion: | exact orbital motion |
| Shaking platform: | 400 x 300 mm for 8 microplates |
| Max. load: | 5 kg |
| Shaking speed: | 100 - 1400 rpm, steplessly adjustable |
| Stroke: | 3 mm |
| Timer: | 0 - 120 min / continuous |
| Order No.: | 6166 000 |
| Accessory: | Standard Rack System TiMix 5 Additional tray TiMix 5 Rack System with clamping pins Rack System with high clamping pins Rack System with metal clamping pins Rack System Combifix KS Universal tray KS Incubator Hood TH 15 |
Technical specifications
| Electrical supply: | 230 V or 115 V, 50 / 60 H please indicate in case of order |
| Enclosure protection: | IP 21 |
| Heat emission: | approx. 9 W |
| Ambient temperature: | 5°C to 50°C |
| Relative humidity: | ~ 85 % |
| Dimensions (w x d x h): | 510 x 490 x 150 mm |
| Weight: | 19 kg |
Microplate Shaker TiMix 5 마이크로플레이트 쉐이커
더 자세한 정보는 켐코코리아로 문의하세요~!
켐코코리아 주식회사
Tel. 043-215-2012
e-mail. ck@chemcokorea.com
