Microplate Shaker TiMix 5 control 마이크로플레이트 쉐이커 본문

실험실 기초장비/Shaker

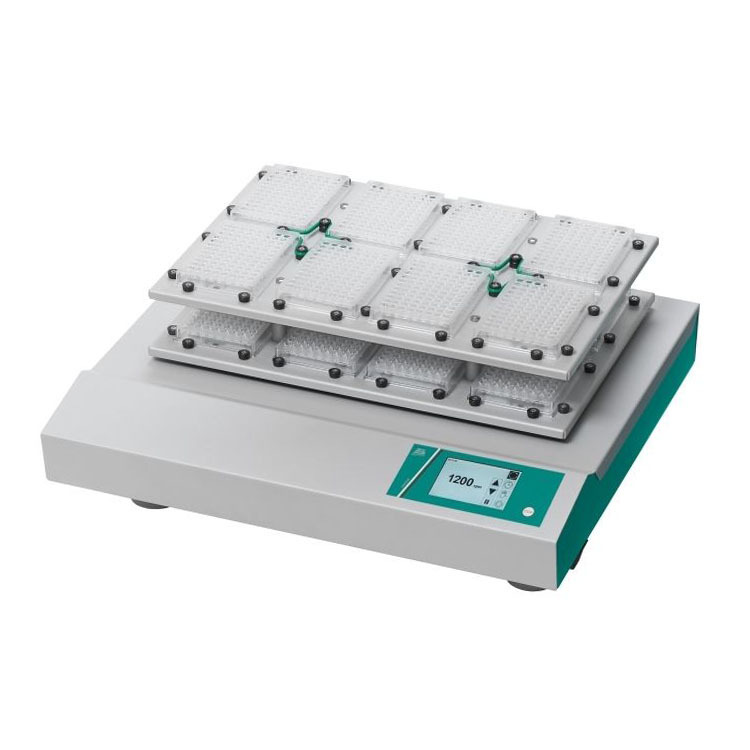

Microplate Shaker TiMix 5 control 마이크로플레이트 쉐이커

켐코코리아(주) 2022. 10. 6. 18:30

마이크로플레이트 쉐이커 TiMix5 터치패널



  • Motion : exact orbital motion
  • Shaking platform : 400 x 300mm for 8 microplates
  • Max Load : 5 kg
  • Shaking Speed : 5 ~ 1400 rpm
  • Stroke : 3mm
  • Relative humidity : ~85%
  • Touch display

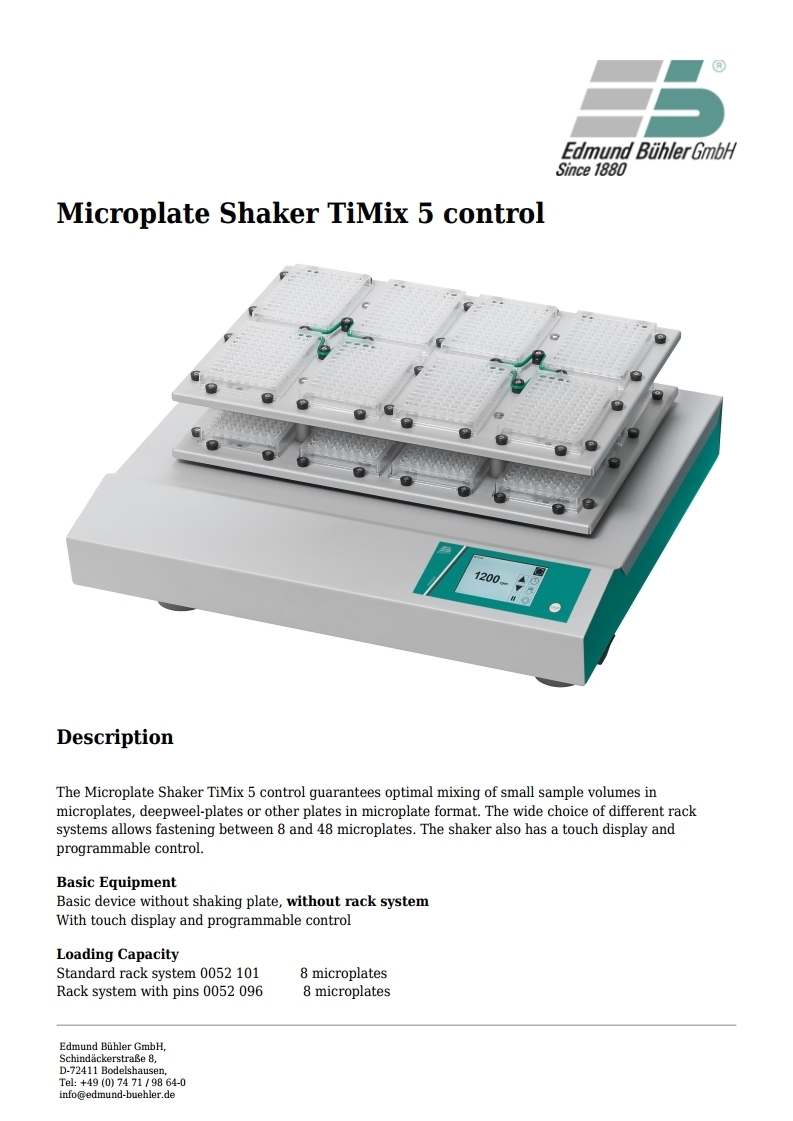

Description



The Microplate Shaker TiMix 5 control guarantees optimal mixing of small sample volumes in microplates, deepweel-plates or other plates in microplate format. The wide choice of different rack systems allows fastening between 8 and 48 microplates. The shaker also has a touch display and programmable control.

Basic Equipment
Basic device without shaking plate, without rack system
With touch display and programmable control

Loading Capacity
Standard rack system 0052 101 8 microplates
Rack system with pins 0052 096 8 microplates
Standard rack system 0052 101 +
Additional tray 0052 102 16 microplates
RS high clamping pins 0052 104 24 microplates
RS metal clamping pins 0052 125        48 microplates

Options
USB 2.0 interface
RS 232 interface
Control interface

Safety Package
Defined stop

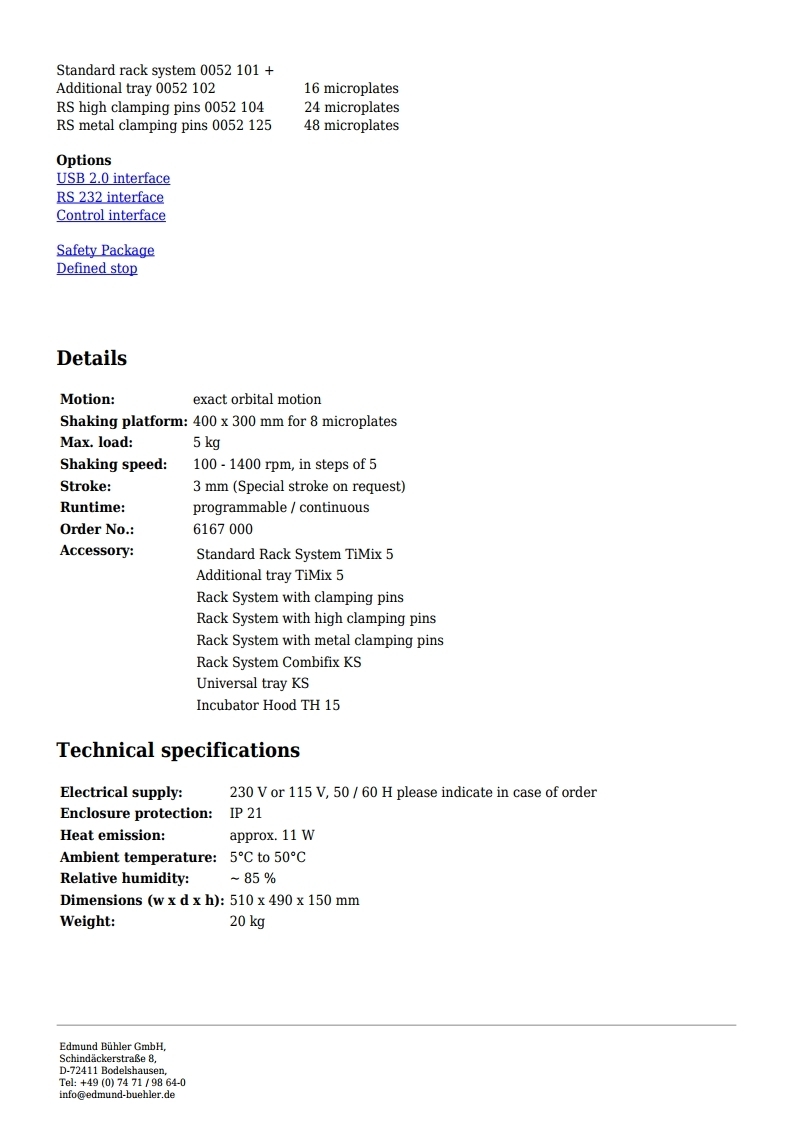

Details

Motion: exact orbital motion
Shaking platform: 400 x 300 mm for 8 microplates
Max. load: 5 kg
Shaking speed: 100 - 1400 rpm, in steps of 5
Stroke: 3 mm (Special stroke on request)
Runtime: programmable / continuous
Order No.: 6167 000
Accessory: Standard Rack System TiMix 5
Additional tray TiMix 5
Rack System with clamping pins
Rack System with high clamping pins
Rack System with metal clamping pins
Rack System Combifix KS
Universal tray KS
Incubator Hood TH 15





Technical specifications

Electrical supply: 230 V or 115 V, 50 / 60 H please indicate in case of order
Enclosure protection: IP 21
Heat emission: approx. 11 W
Ambient temperature: 5°C to 50°C
Relative humidity: ~ 85 %
Dimensions (w x d x h): 510 x 490 x 150 mm
Weight: 20 kg











Microplate Shaker TiMix 5 control 마이크로플레이트 쉐이커

더 자세한 정보는 켐코코리아로 문의하세요~!

켐코코리아 주식회사

Tel. 043-215-2012

e-mail. ck@chemcokorea.com

Web. http://www.chemcokorea.com/

Blog. http://blog.chemcokorea.com/
