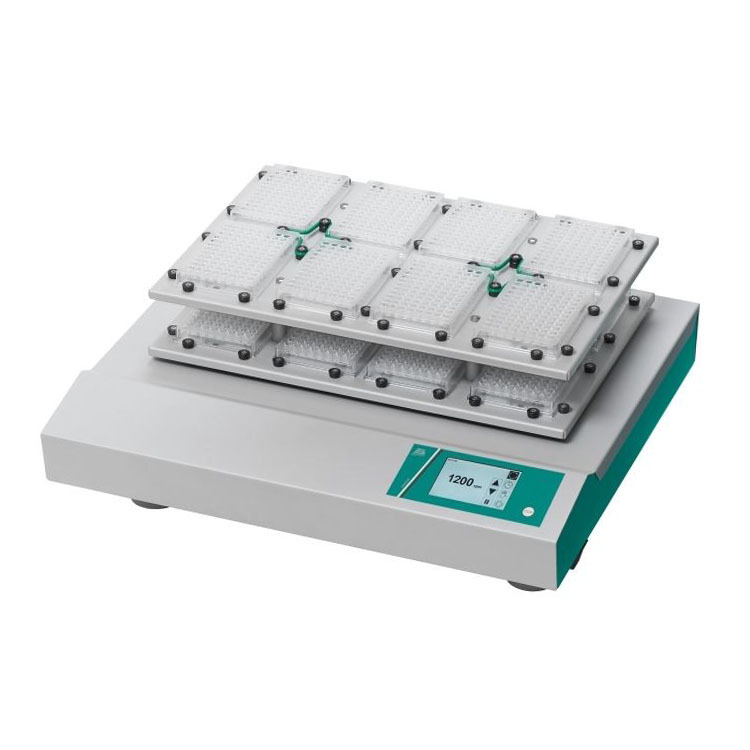

Microplate Shaker TiMix 5 control 마이크로플레이트 쉐이커 본문
마이크로플레이트 쉐이커 TiMix5 터치패널
- Motion : exact orbital motion
- Shaking platform : 400 x 300mm for 8 microplates
- Max Load : 5 kg
- Shaking Speed : 5 ~ 1400 rpm
- Stroke : 3mm
- Relative humidity : ~85%
- Touch display
Description
The Microplate Shaker TiMix 5 control guarantees optimal mixing of small sample volumes in microplates, deepweel-plates or other plates in microplate format. The wide choice of different rack systems allows fastening between 8 and 48 microplates. The shaker also has a touch display and programmable control.
Basic Equipment
Basic device without shaking plate, without rack system
With touch display and programmable control
Loading Capacity
Standard rack system 0052 101 8 microplates
Rack system with pins 0052 096 8 microplates
Standard rack system 0052 101 +
Additional tray 0052 102 16 microplates
RS high clamping pins 0052 104 24 microplates
RS metal clamping pins 0052 125 48 microplates
Options
USB 2.0 interface
RS 232 interface
Control interface
Safety Package
Defined stop
Details
| Motion: | exact orbital motion |
| Shaking platform: | 400 x 300 mm for 8 microplates |
| Max. load: | 5 kg |
| Shaking speed: | 100 - 1400 rpm, in steps of 5 |
| Stroke: | 3 mm (Special stroke on request) |
| Runtime: | programmable / continuous |
| Order No.: | 6167 000 |
| Accessory: | Standard Rack System TiMix 5 Additional tray TiMix 5 Rack System with clamping pins Rack System with high clamping pins Rack System with metal clamping pins Rack System Combifix KS Universal tray KS Incubator Hood TH 15 |
Technical specifications
| Electrical supply: | 230 V or 115 V, 50 / 60 H please indicate in case of order |
| Enclosure protection: | IP 21 |
| Heat emission: | approx. 11 W |
| Ambient temperature: | 5°C to 50°C |
| Relative humidity: | ~ 85 % |
| Dimensions (w x d x h): | 510 x 490 x 150 mm |
| Weight: | 20 kg |
